MicroScanner Pro
Users Manual

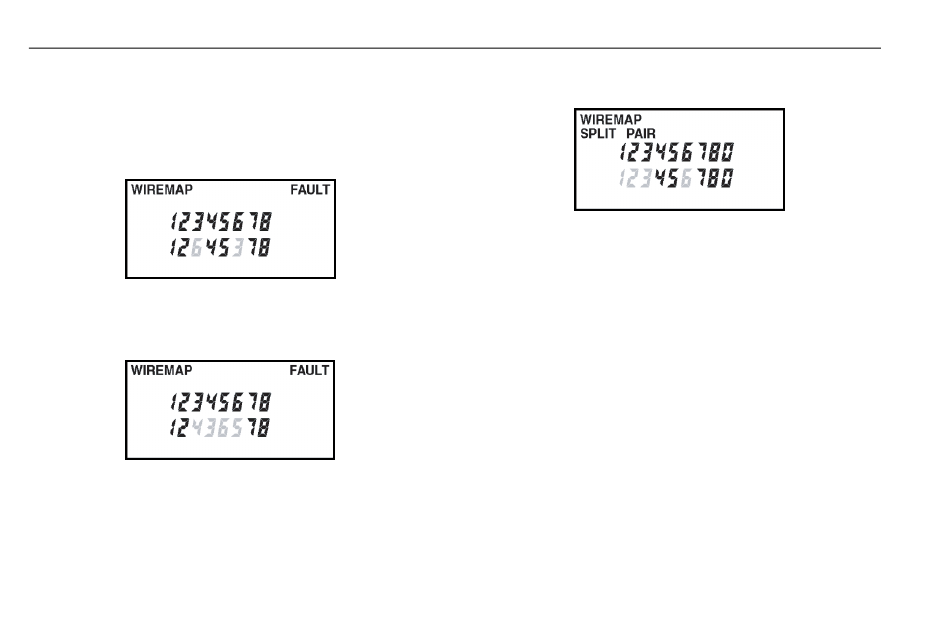

Below are examples of wiring faults. The FAULT
indicator will be displayed and the numerical wire
indicators will blink.
Reversed: Pair 3 – 6
Crossed: Pairs 4 – 5, 3 – 6
10
Split Pair
If a cable is wired correctly, pin-to-pin, but
aue06f.eps
there is a split pair, Wiremap will display
SPLIT PAIR. For example, a wire from the
1 - 2 pair could be twisted with a wire
from the 3 - 6 pair.
aue07f.eps
aue08f.eps
Note
