MP1
Magnet Probe
Instruction Sheet
Introduction
The MP1 Magnet Probe (the Probe or Product) is an accessory with a
magnetic tip for 4 mm safety test leads. The magnetic tip provides
contact to a ferromagnetic metal surface in areas with limited access
such as the carbon steel screws on RCDs or circuit breakers.
The probe fits into recessed screw holes with a diameter of ≥6 mm.
The probe is CAT IV 600 V/CAT III 1000 V rated with a maximum
current of 4 A.

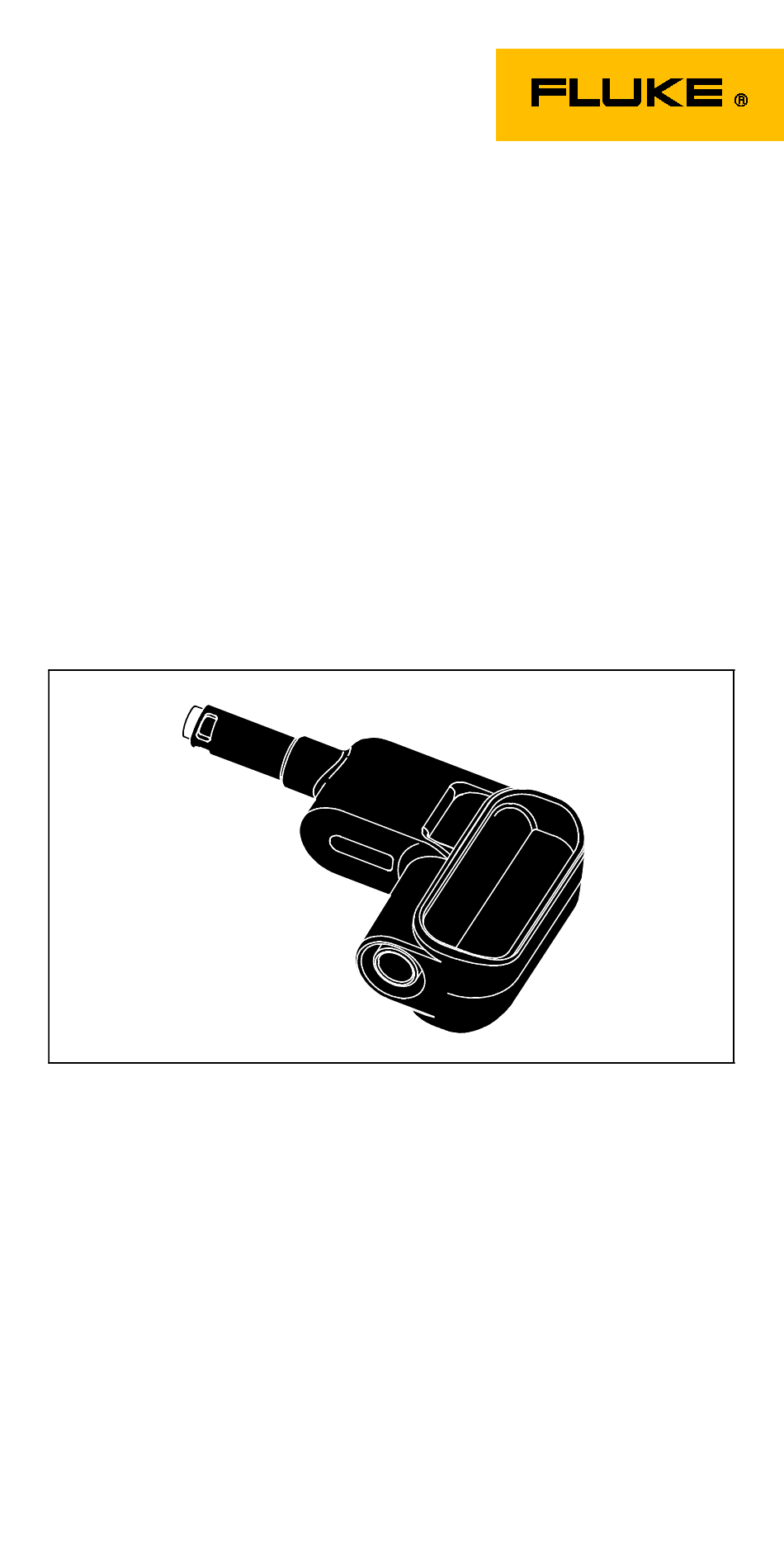

fig_MP1.eps
PN 4584021
September 2015
2015 Fluke Corporation. All rights reserved.
Specifications are subject to change without notice.
All product names are trademarks of their respective companies.

Advertisement

loading

Related Manuals for Fluke MP1

Summary of Contents for Fluke MP1

  • Page 1 Magnet Probe Instruction Sheet Introduction The MP1 Magnet Probe (the Probe or Product) is an accessory with a magnetic tip for 4 mm safety test leads. The magnetic tip provides contact to a ferromagnetic metal surface in areas with limited access such as the carbon steel screws on RCDs or circuit breakers.

  • Page 2: Contacting Fluke

    Contacting Fluke To contact Fluke, call one of the following telephone numbers: • Technical Support USA: 1-800-44-FLUKE (1-800-443-5853) • Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853) • Canada: 1-800-36-FLUKE (1-800-363-5853) • Europe: +31 402-675-200 • Japan: +81-3-6714-3114 • Singapore: +65-6799-5566 • Anywhere in the world: +1-425-446-5500 Or, visit Fluke's website at www.fluke.com.
  • Page 3 • Do not exceed the Measurement Category (CAT) rating of the lowest rated individual component of a Product, probe, or accessory. • Do not use the Product if it is damaged. • Do not expose the Product to temperatures ≥80°C (176°F).
  • Page 4 Instructions The Product has optimum holding strength with M5 pan-head screws. It also can be used to contact any screw head or metal contact that has magnetic attraction, such as carbon steel alloys. Do not use with metal contacts that do not have magnetic attraction. For example, copper alloy contacts, aluminum alloy contacts, and most stainless steel alloy contacts are not suitable for use with this Product.

  • Page 5: Specifications

    Storage ........≤12000 m LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for one year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
