Fluke T6-600 Quick Reference Manual

Quick Reference Guide
GuÍa de referencia rápida
Guia de referência rápida
T6-600/T6-1000
Electrical Tester
with FieldSense Technology
See "Safety Information".
»
Go to www.fluke.com to register your product and find more information, or
download this Quick Reference Guide in other languages.
Consulte las "Información sobre seguridad".
Vaya a www.fluke.com para registrar el producto y obtener más información, o
descargue esta Guía de referencia rápida en otros idiomas.
Consulte o "Informações de Segurança". Acesse www.fluke.com.br para
registrar seu produto e obter mais informações, ou baixe este Guia de
referência rápida em outros idiomas.
Fork Opening 17.8 mm
1
6
2
3
4
HOLD
5
AUTO
SELECT
7
T6-1000
ELECTRICAL TESTER
PN 4897598 September 2017 Rev. 1, 10/17 PN 4897598 September 2017
© 2017 Fluke Corporation. All rights reserved. © 2017 Fluke Corporation. All rights reserved.
Specifications are subject to change without notification. Specifications are subject to change without notification.

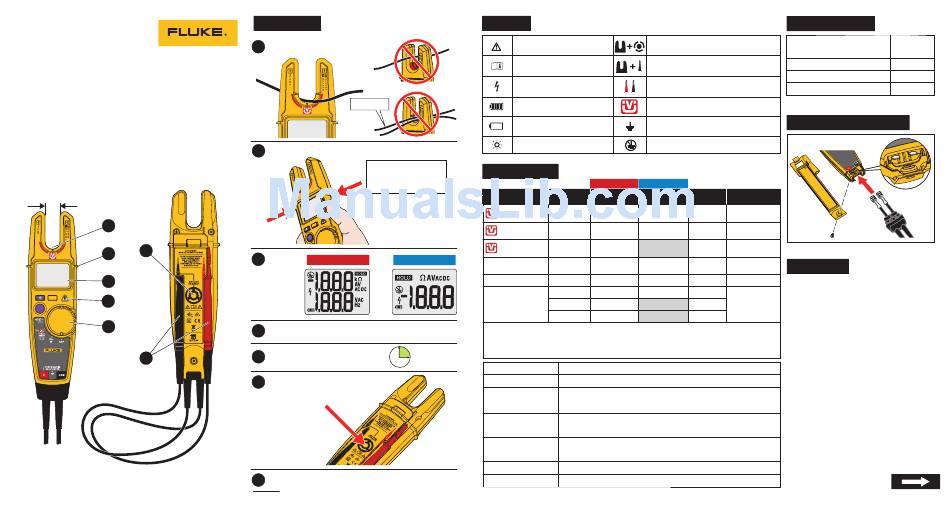

Overview
1
Wire Position
1 Wire Only
2
Finger Guard
For safe operation,
hold the Tester behind
HOLD
the finger guard.
3
Display
Model T6-1000 Model T6-1000 Model T6-600
4
X
Hazardous Voltage ≥30 V
5
Auto Off
Function Selection/On/Off
15 min
6
FieldSense
Ground Contact
7
Test Probes/Storage Dock
Fluke-Direct
info@Fluke-Direct.com
Symbols
WARNING. RISK OF DANGER. Test with fork and FieldSense ground contact.
Consult user documentation.
Test with fork and ground probe.
Hazardous voltage ≥30 V. Test with probes.
FieldSense Measurement:
Battery full charge.
Fluke voltage/current sensing technique.
Good earth ground connection.
Battery low. Replace.
No earth ground connection.
Back light
Specifications
Model T6-1000 Model T6-600
Requires
Function Range Range
Test Leads
FieldSense
1000 V 600 V
No
Voltage ac
FieldSense
200.0 A
No 200.0 A
Current ac
FieldSense
No 45 Hz to 66 Hz
Frequency (Hz)
Voltage ac Yes 1000 V 600 V
Voltage dc
Yes 1000 V 600 V
Yes 2000 Ω 2000 Ω
Resistance Yes 20.00 kΩ
Yes
100.0 kΩ
[1] Accuracy: ± ( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration,
at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC measurements are ac coupled, RMS responding.
[2] Add 3 % without an external ground connection. External ground connection required for user wearing insulated
gloves, standing on an insulated ladder, or otherwise insulated from earth ground.
[3] FieldSense is specified from 16 V to 100 % of range.
Fork Opening
17.8 mm
Calibration 1-year calibration cycle
Temperature
Operating -10 °C to +50 °C (+14 °F to +122 °F)
Storage -30 °C to +60 °C (-22 °F to +140 °F)
Altitude
Operating 2000 m
Storage 10 000 m
Relative Humidity 0 % to 95 %, 5 °C to 30 °C (41 °F to 86 °F)
0 % to 75 %, 30 °C to 40 °C (86 °F to 104 °F)
0 % to 45 %, 40 °C to 50 °C (104 °F to 122 °F)
Battery Type and Life 2x AA (IEC LR6) 360 hr continuous, typical is 200 hr using the FieldSense function
Temperature coefficient 0.1 x (specified accuracy) / °C for <18 °C or >28 °C (<64.4 °F or >82.4 °F)
.com
1.888.610.7664
Replacement Parts
Test Lead Assembly (T5-RLS) Replace
only with Fluke double-insulated
leads (T)
TP1 Probe Set, Flat-Blade
Battery Door
Battery Door Screw
Use only specified replacement parts.
Lead Replacement
Resolution Accuracy [1]
±(3 % + 3 counts)
1 V
45 Hz to 66 Hz
[2][3]
±(3 % + 3 counts)
0.1 A
45 Hz to 66 Hz
±(1 % + 2 counts)
[3]
1 Hz
±(1.5 % + 2 counts) Accessories
1 V
45 Hz to 66 Hz
● HT6 Belt Holster
±(1 % + 2 counts)
1 V
● TPAK Hanger
1 Ω
● PRV240FS
±(1 % + 2 counts) ● AC285 SureGrip™ Alligator Clips
0.01 kΩ
● AC220 SureGrip™ Alligator Clips
0.1 kΩ
PN 4462973 PN 4462973
PN 648128 PN 648128
PN 4944370 PN 4944370
PN 1618579 PN 1618579
