Freemotion i10.9b INCLINE TRAINER User Manual page 12

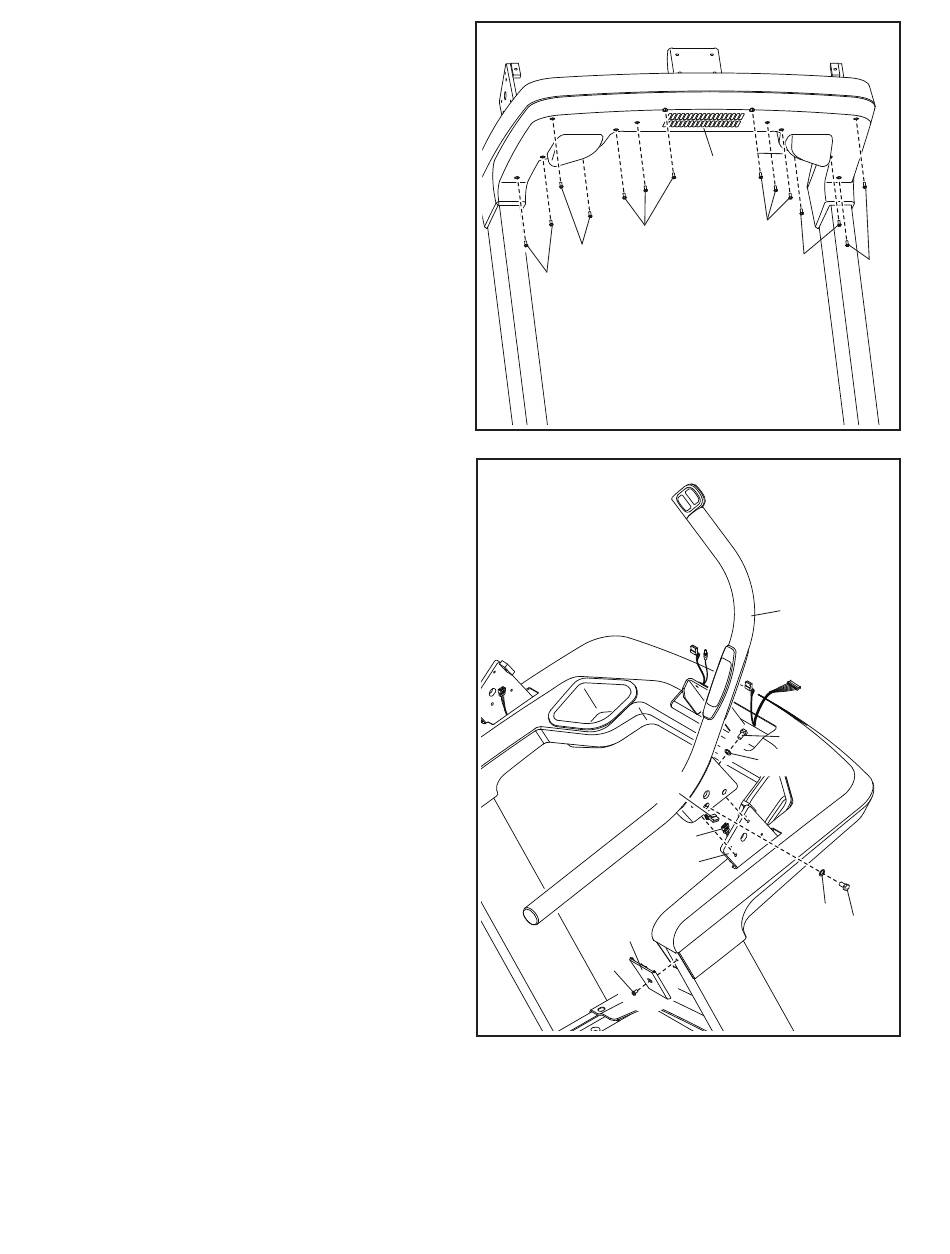

8. Attach the Handrail Base Bottom Cover (155)
with fourteen #8 x 3/4" Screws (16); start all
fourteen Screws, and then tighten them. Do
not overtighten the Screws.
9. Set the Right Handrail Assembly (113) on the
right side of the Handrail Base (154). Attach the
Right Handrail Assembly with two 5/16" x 3/4"
Screws (51) and two 5/16" Star Washers (61).
Torque the 5/16" x 3/4" Screws (51) to
17 pound-feet (23 Newton-meters).
Next, connect the Handrail Wire (146) to the
Handrail Extension Wire (160).
Then, attach an Upright Cap (148) with a #10 x
1/2" Screw (35).
Attach the Left Handrail (not shown) and the
other Upright Cap (not shown) as described
above.
