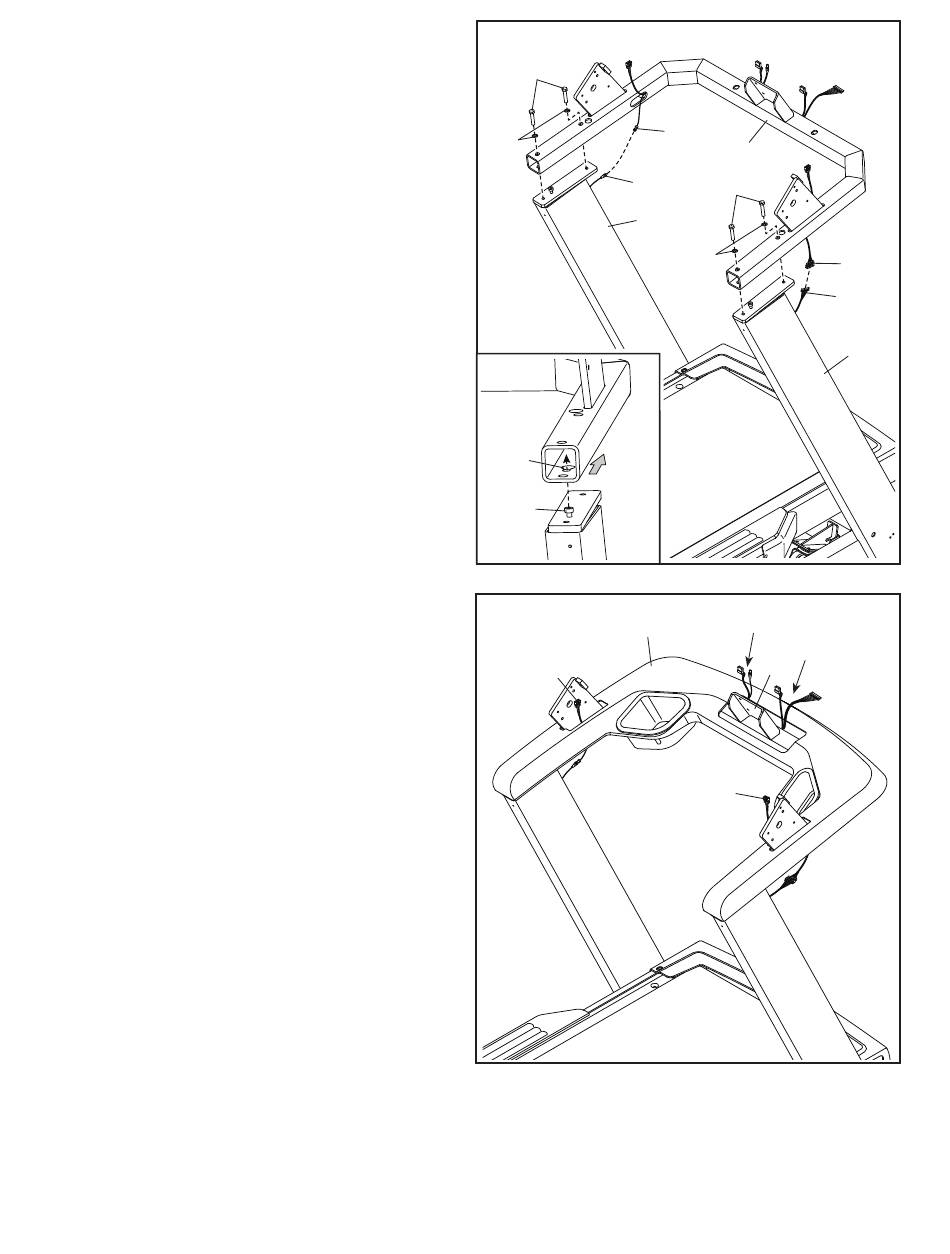

6. With the help of a second person, set the
Handrail Base (154) on the Uprights (149, 150).
See the inset drawing. The 5/16" x 3/4" Cap
Screws (88) must be inside the holes (D) in the
bottom of the Handrail Base. Then, slide the
Handrail Base forward. The 5/16" x 3/4" Screws
will keep the Handrail Base in place.
Attach the Handrail Base (154) with four 3/8" x
2 3/4" Screws (50) and four 3/8" Star Washers
(14); start all four Screws, and then torque
them to 31 pound-feet (42 Newton-meters).
Then, connect the Upright Wire Harness (116) to
the Handrail Wire (146), and connect the Upright
Coaxial Cable (125) to the Coaxial Extension
Cable (161).
IMPORTANT: See steps 2 and 4. Torque the
5/16" x 3/4" Screws (51) to 17 pound-feet
(23 Newton-meters).
7. Set the Handrail Base Top Cover (153) on the
Handrail Base (154). Make sure that no wires
or cables (E) are inside the Handrail Base Top
Cover.
6
50
14
125
149
D
88
7
153
E
11
161
154
50
14
146
116
150
E
E
154
E
