Controls - Borg & Overstrom B4 Install & Operation Manual

Before installation

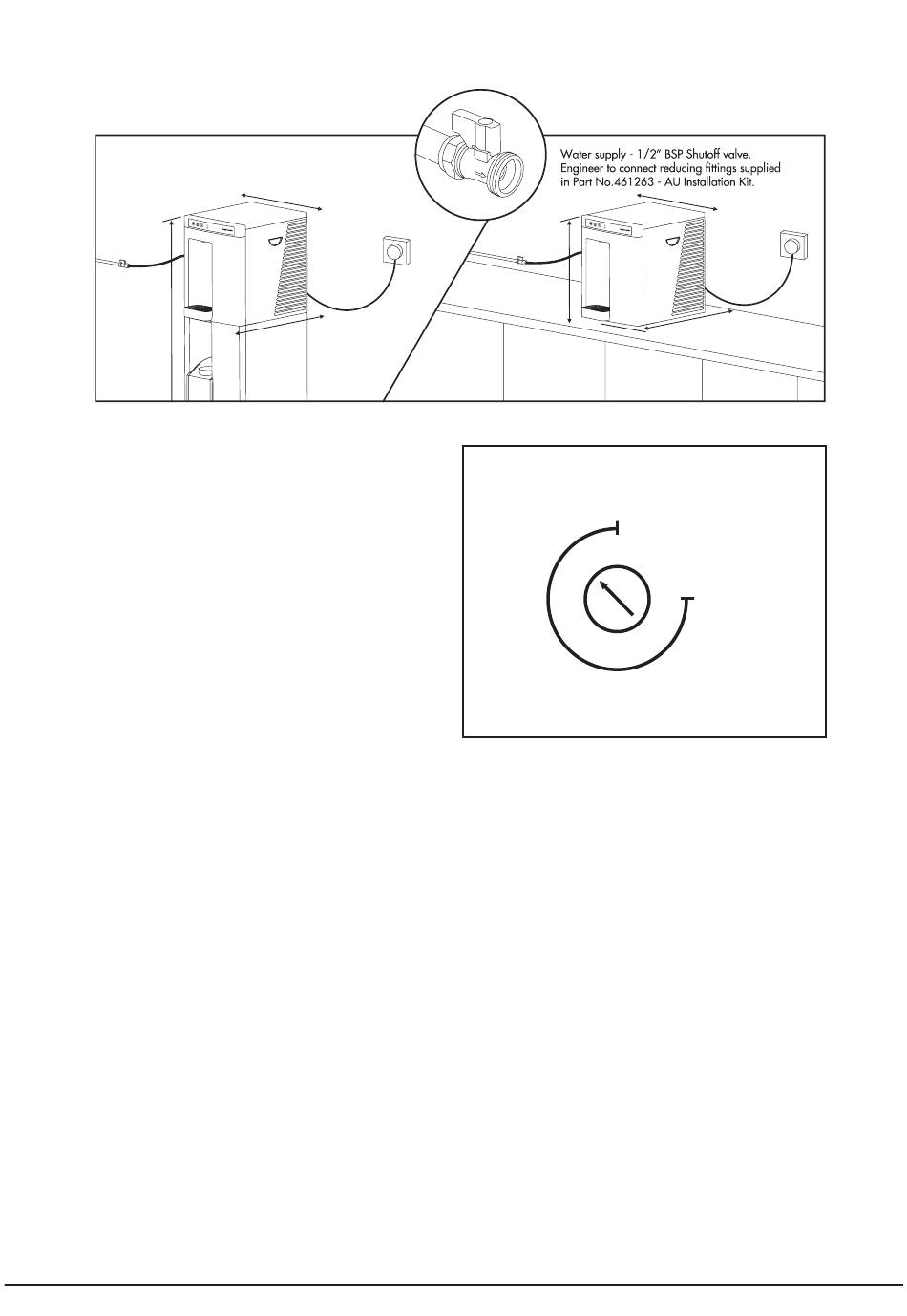

Allow adequate space to install the appliance.
Ensure the services are in place prior to installation.
1/2" Shutoff
Valve
Minimum
1340mm

Controls

Chilled
Chilled On/Off Switch: at upper rear of
machine, switches cooling operation on/off.*
Cold Thermostat: at rear of machine.
Chilled Button: Press to dispense cold water.
Chilled LED: Indicates chilling application is
switched on.
10A Fuse: On rear of machine, integral with
IEC socket.
*All Direct Chill variants incorporate an
auto-fill system
Ambient
Ambient Button: Press to dispense
ambient water.
Borg & Overström
Minimum 420mm
13 Amp
Socket
Minimum
590mm
B4.2 Install & Operation Manual
1/2" Shutoff
Valve
Minimum
420mm
Cold Thermostat
Factory set to:
-C
NB: Turn clockwise to decrease water temperature
Sparkling
Carbonation On/Off switch: Switches sparkling
operation on/off.
Sparkling Button: Press to dispense sparkling water.
Sparkling LED: Indicates sparkling application
is switched on.
Hot
Hot On/Off Switch: The hot water heating
mode is controlled by a switch on the back of
the unit, next to the cooling mode switch.
Hot Thermostat: regulated by a pre-set, non-
adjustable sensor on the tank.
Hot Button (incorporates safety lock): Press once
to unlock. Press again to dispense hot water.
(Note: Machine will revert to locked after 5
seconds if dispense is not activated.)
Hot LED: Indicates hot application is switched on.
3
Minimum 420mm
13 Amp
Socket
Minimum
590mm
+C
AU
