2.4

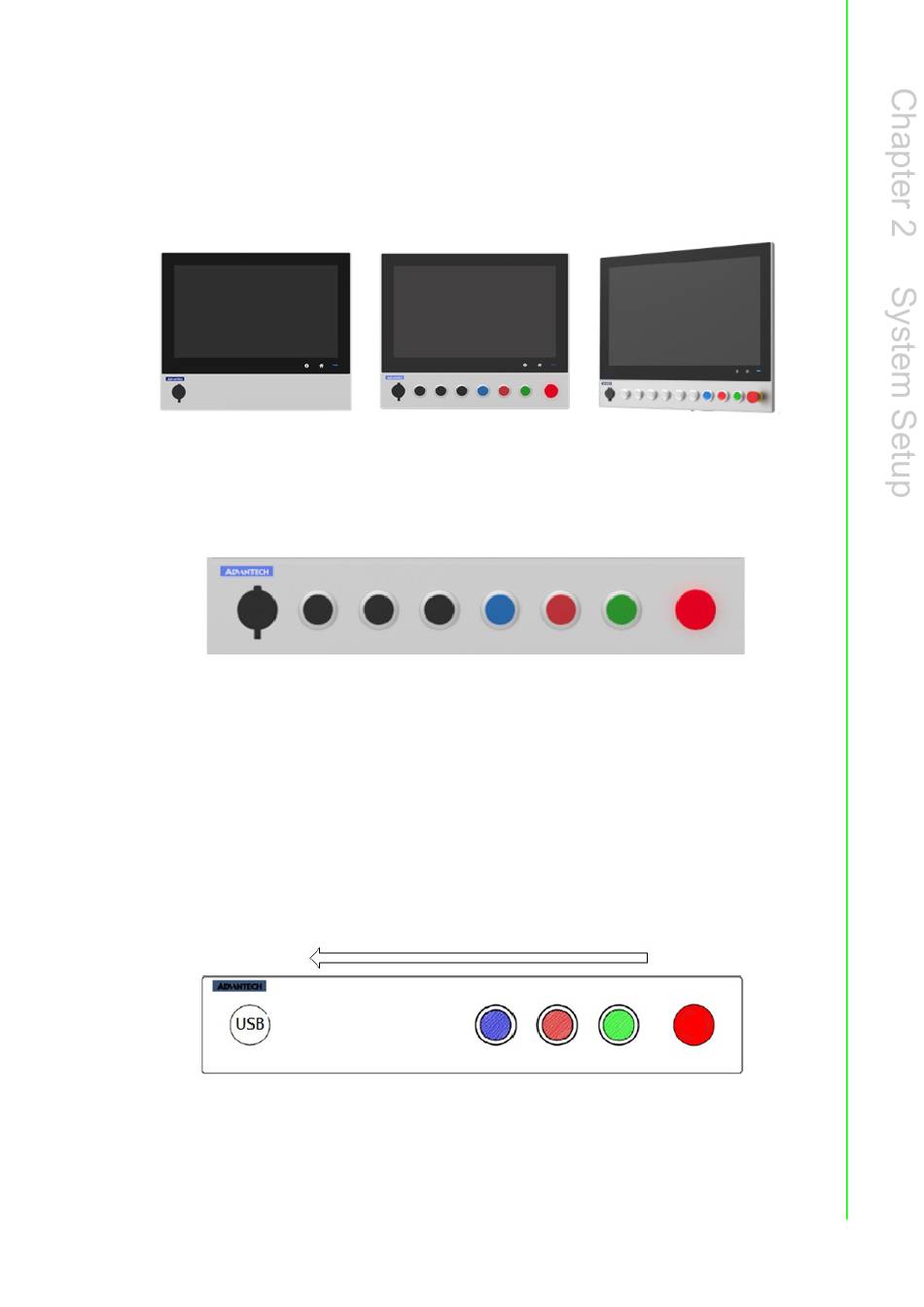

SPC-800 Extension with Operator Controls

The following example shows a SPC-800 device with an Extension Unit.
SPC-800 device with operator controls extension can order these components (Push
Button, PCBA, terminal plug and Screw) do it by yourself assembly or Comprehen-
sive assembly also via Advantech (Build To Order)
Base Unit design for Extension Unit
The Base Unit design is support to RAFI RAFIX 22 Buttons, and the rightmost button
is reserved for Emergency Stop Button Push-button. And the other side design for
Front USB location.
USB
2.0
Customized for your Plant with Operator Controls
Extension Unit Size, SPC-800 standard device with an operator is 15" and 21"

Push Button Hole, SPC-800 operator controls design has pre-hole

(1.) 15" with seven pre-hole and USB location.
(2.) 21" with ten pre-hole and USB location.
Push Button with Extension Unit(Use four Button), Extension Unit 15" and

21", base unit operator controls from right to left location design is Emergency
Stop Button, Green Push Button, Red Push Button, Blue Push Button and USB.
Push Push Push
Button Button Button
25
Emergency Stop
Button
