Mounting the SPC-800 device

The section describes the mounting of the device to a support ARM or VESA system
using example figures.SPC-815 and SPC-821 are the same design and same com-
ponent for Pendant and Pedestal mounting.(no additional component is needed) And
VESA mount is optional. We use icoteck German vendor for Cable Entry and design
100 x 100mm standard VESA compliant hole to allow wall and accessory mounting
option.
Warning! Make sure that fasteners are adequately dimensioned during installa-
tion. Make sure to consider the weight of the device and the forces act-
ing on the device when dimensioning.
Inadequately dimensioned fasteners or insufficient lock may cause the
device to fall down. Serious physical injury may result.
The device must be mounted securely.
2.3.1

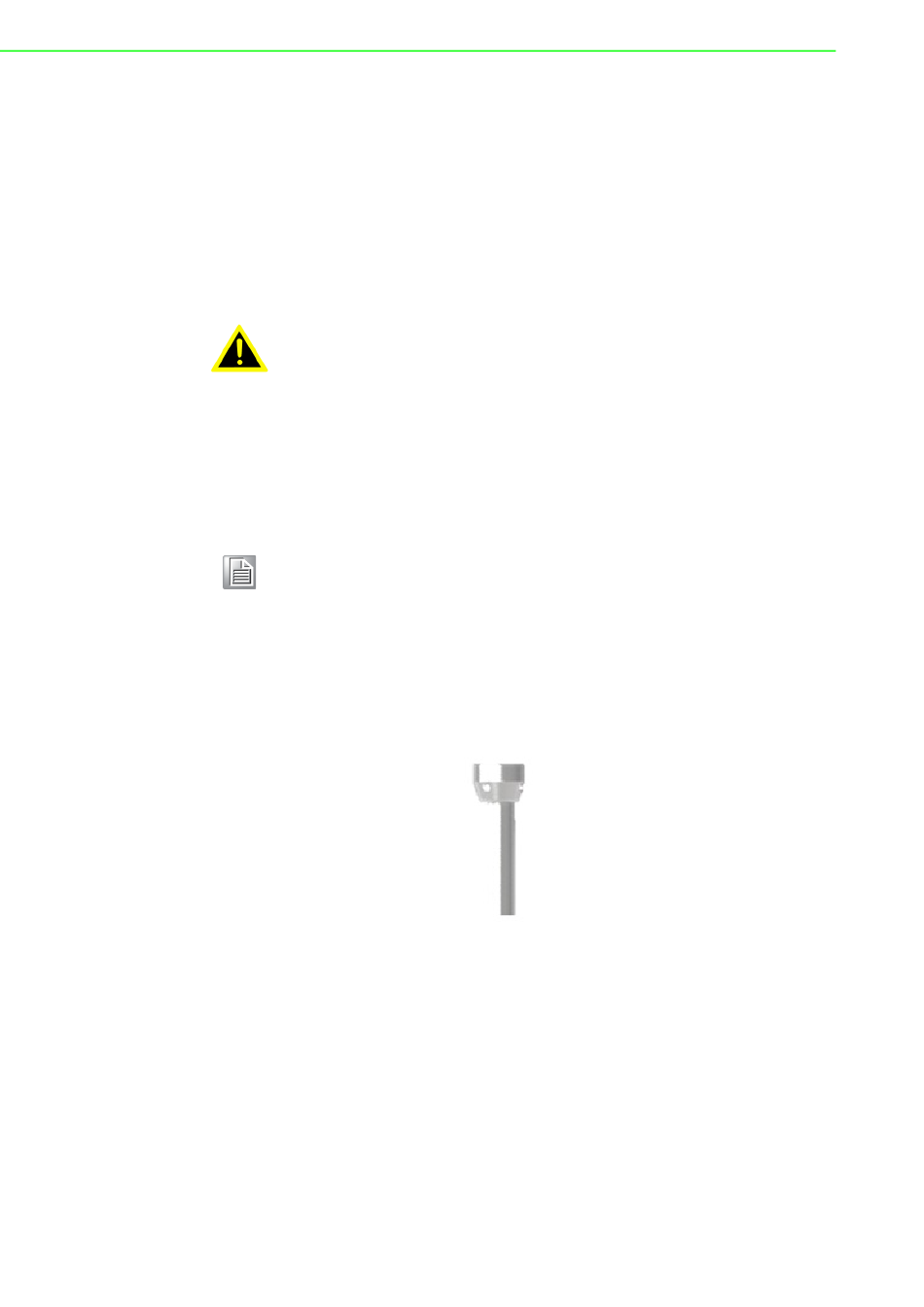

SPC-800 device for support ARM Mounting

Note! Base Unit Product accessory without a pole mounting
The SPC-800 devices are designed for mounting with the base cover
IO. If you install the device with an ARM mounting, you must the corre-
sponding relative size and screw hole position can support the weight of
the device or purchase a pole with Advantech
Requirement
Pole Mount x 1pc

SPC-800 User Manual 16
