7.9 Soft Charge Resistor

1. Remove input terminal plate assembly in
accordance with procedure.
2. Disconnect MK4 connector on soft charge card.
3. Loosen top retaining nut (8 mm) on soft charge
resistor.
4. Remove bottom retaining nut (8 mm) on soft
charge resistor.
5. Lift bottom of soft charge resistor and remove
resistor by sliding down.
Reinstall in reverse order of this procedure. Tighten 8 mm
retaining nuts to 20 in-lbs (2.3 Nm).
7-6
VLT is a registered Danfoss trademark
Soft charge card
Bottom retaining nut
(Step 4)

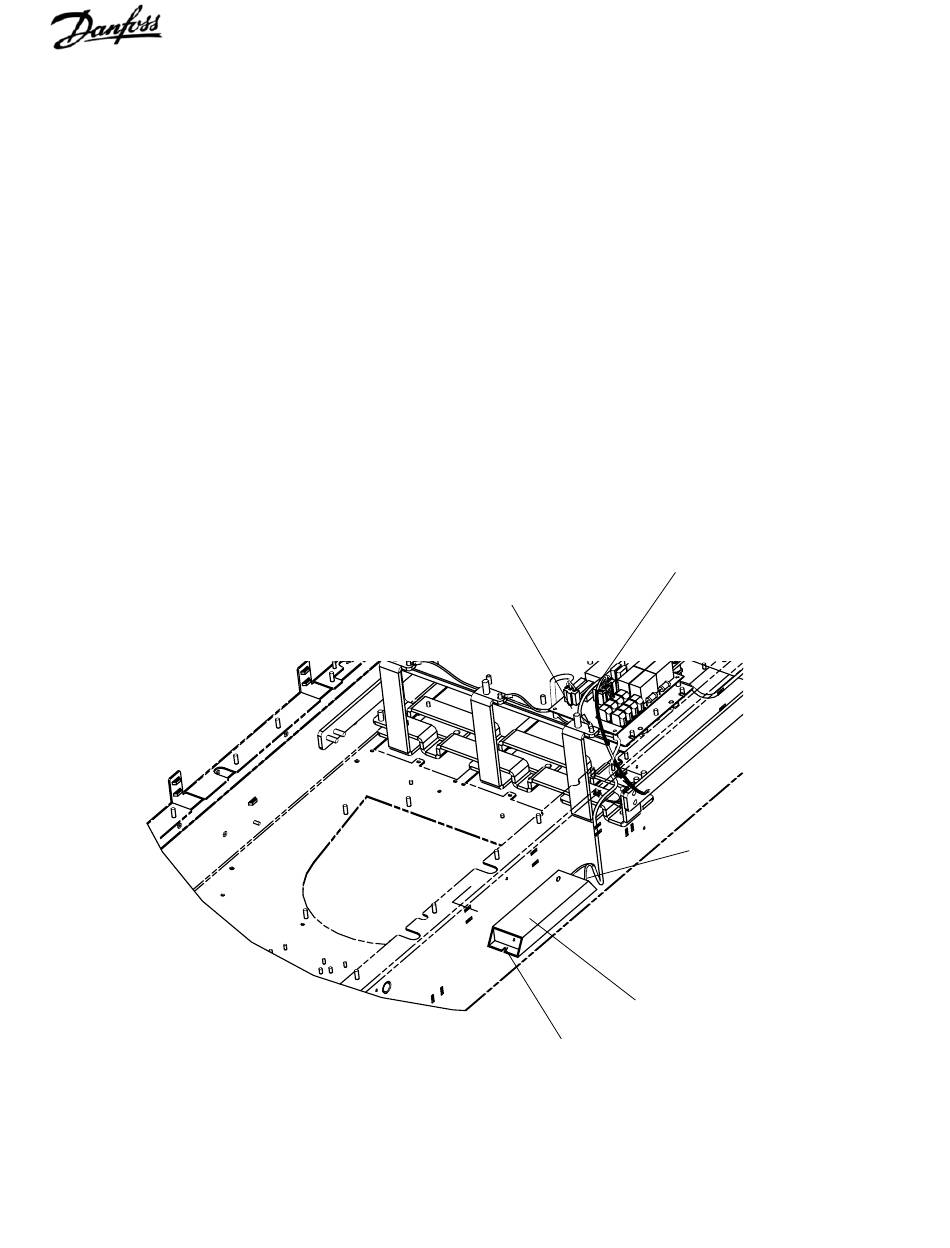

Figure 7-7. Soft Charge Resistor
MK4 connector
(Step 2)
Top retaining nut
(Step 3)
Soft charge resistor
