Exploded View E Frame Size - Danfoss VLT Series Service Manual

Control input terminals
Upper capacitor bank assembly
CBANK2 + PCA11
Lower capacitor bank assembly
CBANK1 + PCA10
Input terminal mounting
plate assembly
AC input bus bar
Main AC power
input terminals
TB1
Current sensor
L2, L3, L4
Output motor terminals
TB2
Intro-6
VLT is a registered Danfoss trademark
Control card cassette
Control card
PCA1
IGBT output bus bar
Fan assembly
F1 + C1

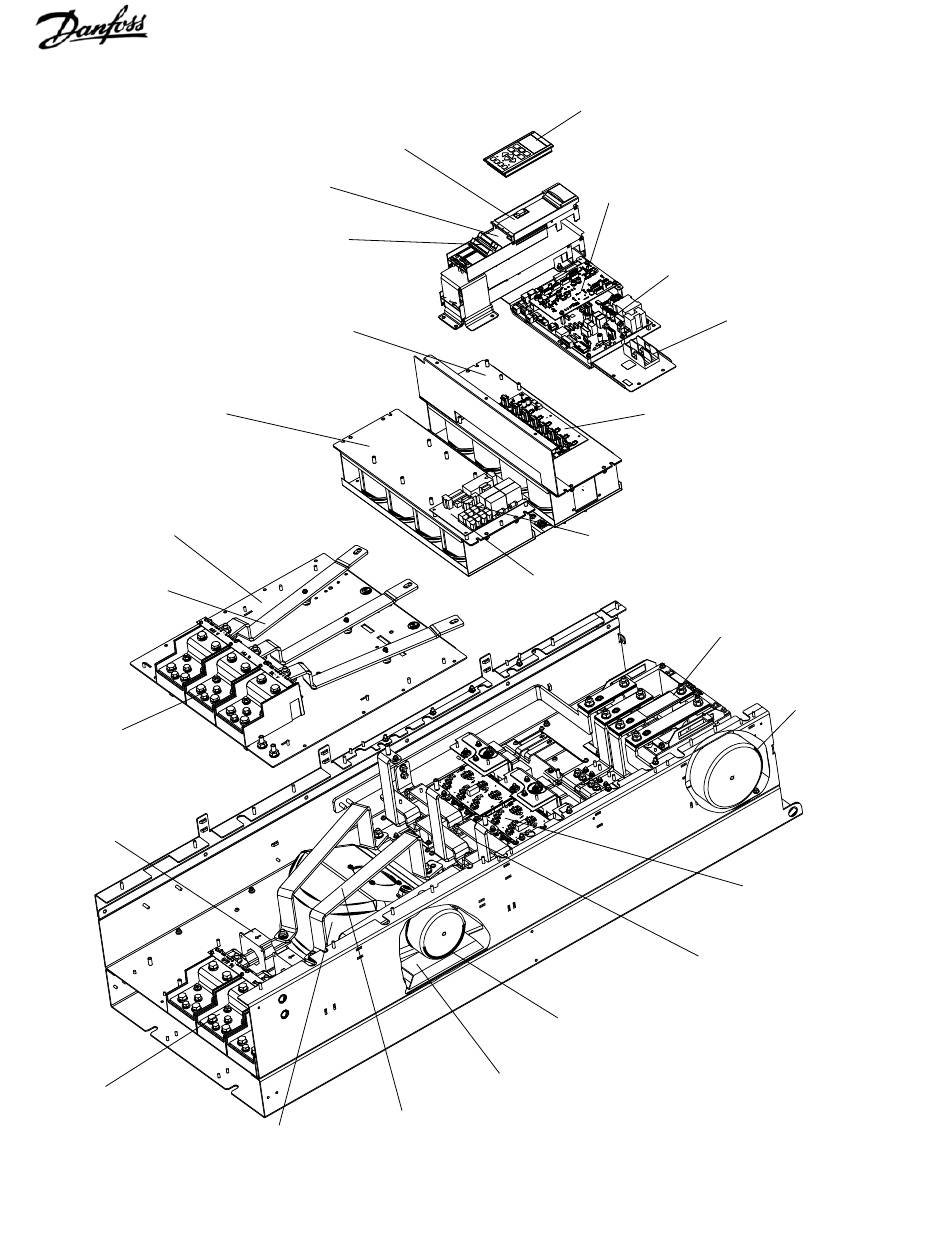

Exploded View E1 Frame Size
Local Control Panel
Interface card
PCA2
Power card
PCA3
IGBT gate driver card
PCA5
Soft charge fuses
Soft charge card
PCA12
Fan inductor (not on all units)
L5
Soft charge resistor assy
R1
DC bus fuse and Fan fuse
F4 and F5
DC inductor
L1
Fan transformer
TR1
IGBT module
IGBT1, 2, 3
SCR and Diode
SCR1, SCR2, SCR3 and
D1, D2, D3
