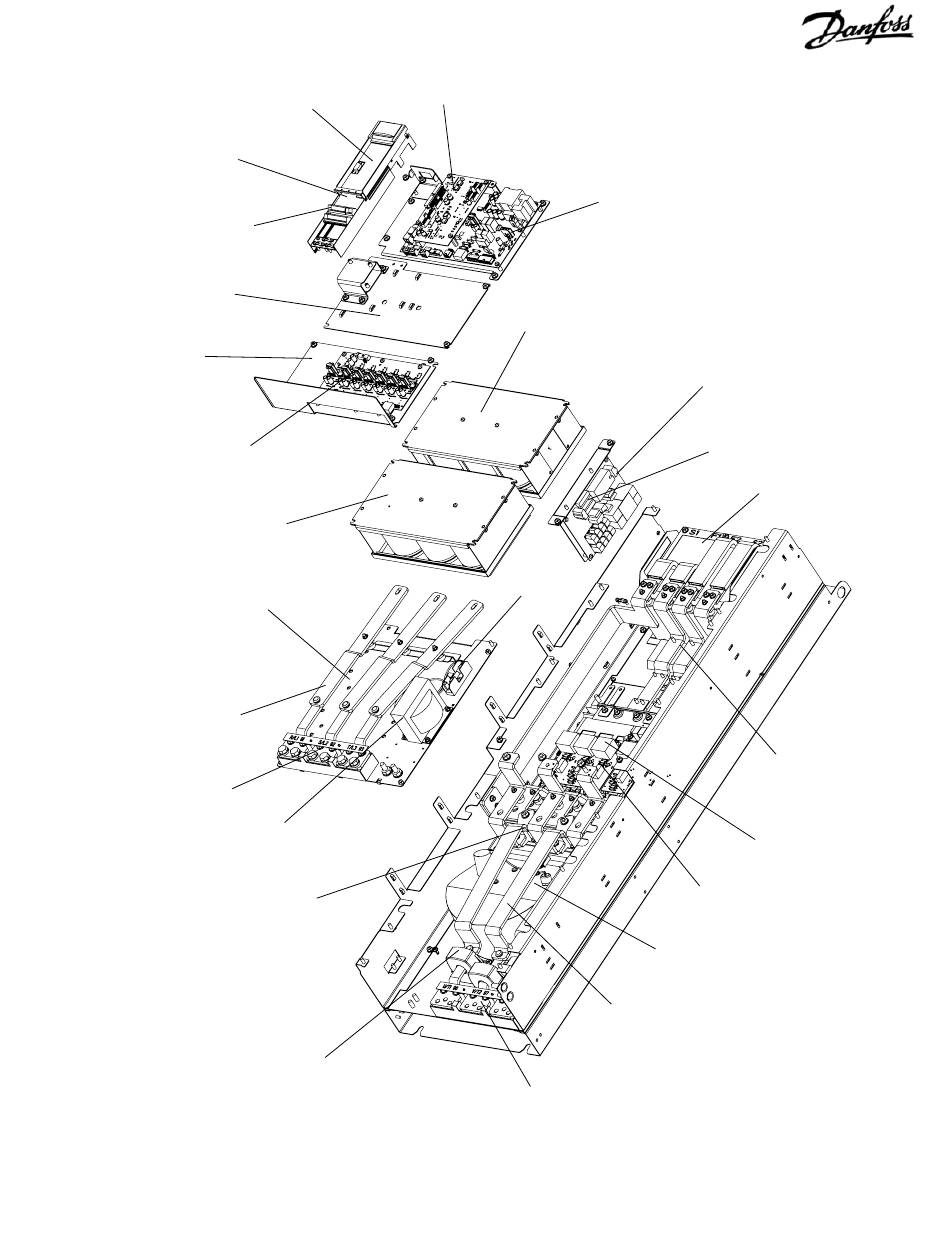

Exploded View D2 Frame Size - Danfoss VLT Series Service Manual

Control card cassette
Control card
PCA1
Control input terminals
Upper capacitor bank
cover plate
Lower capacitor bank
cover plate
IGBT gate driver card
PCA5
Capacitor bank assembly
CBANK1 + PCA9
Input terminal mounting
plate assembly
AC input bus bar
Main AC power
input terminals
TB1
Fan transformer
TR1
SCR/Diode module
SCR1, 2, 3
Current sensor
L2, L3, L4
Interface card
PCA2
Capacitor bank assembly
CBANK2 + PCA10
Fan fuse
FU4
Output motor terminals
TB2

Exploded View D2 Frame Size

Power card
PCA3
Soft charge card
PCA11
Soft charge fuses
DC inductor
L1
Soft charge resistor assy
R1 + CBL26
IGBT snubber
C2, C3, C4, C5, C6, C7
IGBT module
IGBT1, 2
Fan assembly
F1 + C1 + CBL11
IGBT output bus bar
VLT is a registered Danfoss trademark
Intro-5
