D1 Soft Charge Resistor - Danfoss VLT Series Service Manual

4. Remove six retaining screws (T25) from SCR/
Diode modules, terminals 2 and 3 in each module.
5. Remove four (10mm) retaining nuts from DC
inductor input bus bars and four retaining nuts (not
shown) from side mounted bus bars. (Side
mounted bus bars are only present on units with
load sharing.) Remove DC input bus assembly.
CONTINUED ON NEXT PAGE
DC input bus assembly BB3
(Step 5)
Retaining screws
(Step 4)
6-8
VLT is a registered Danfoss trademark
Retaining nuts
(Step 5)

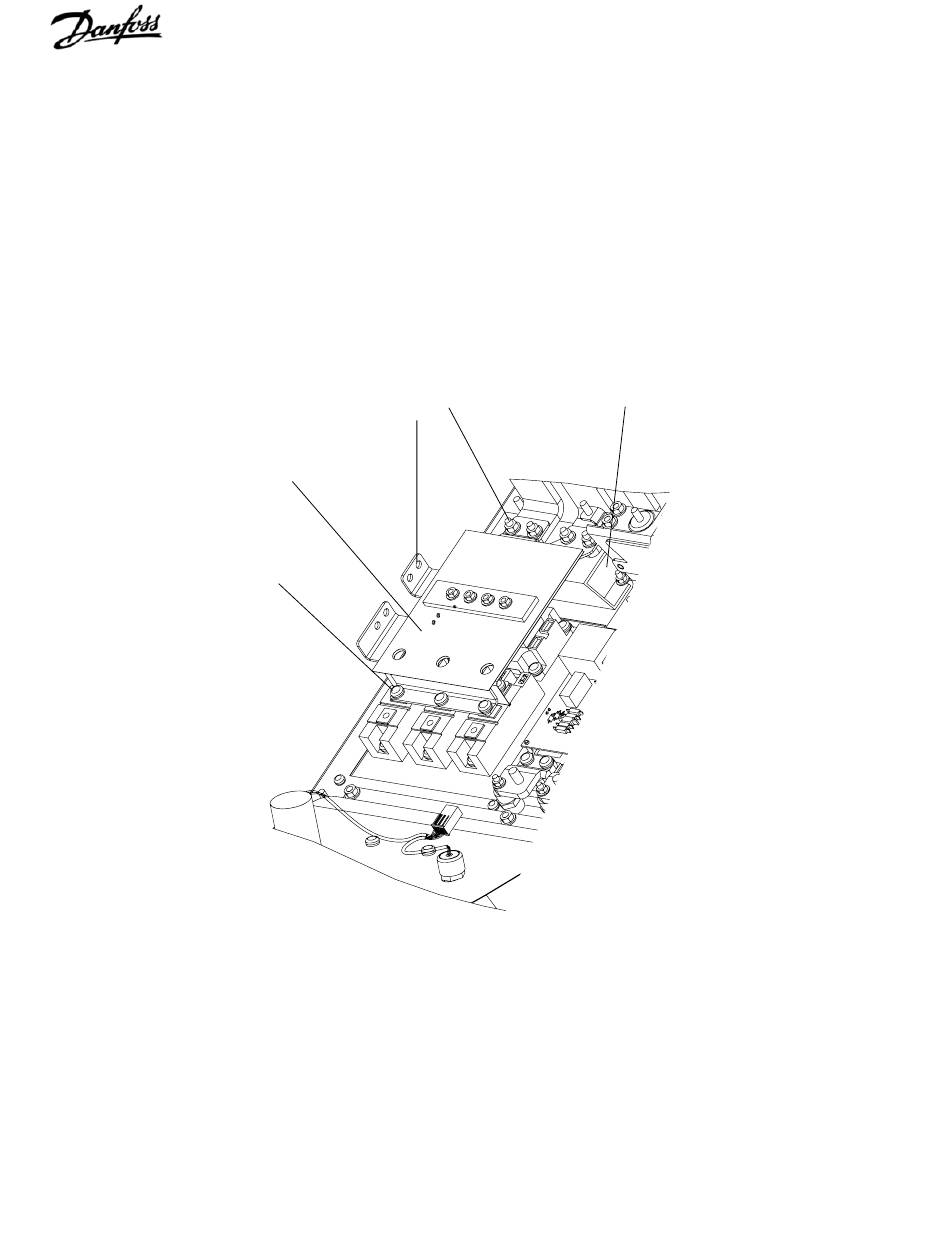

Figure 6-8. D1 Soft Charge Resistor (2 of 3)
Soft Charge Resistor
