Control card cassette
Control card
PCA1
Control input terminals
Capacitor bank cover plate
IGBT gate driver card
PCA5
Input terminal mounting
plate assembly
AC input bus bar
Main AC power
input terminals
TB1
Fan assembly
F1 + C1 +CBL11
Intro-4
VLT is a registered Danfoss trademark
Interface card
PCA 2
Fan fuse
FU4
Fan transformer
TR1
Current sensor
L2, L3, L4
Output motor terminals
TB2

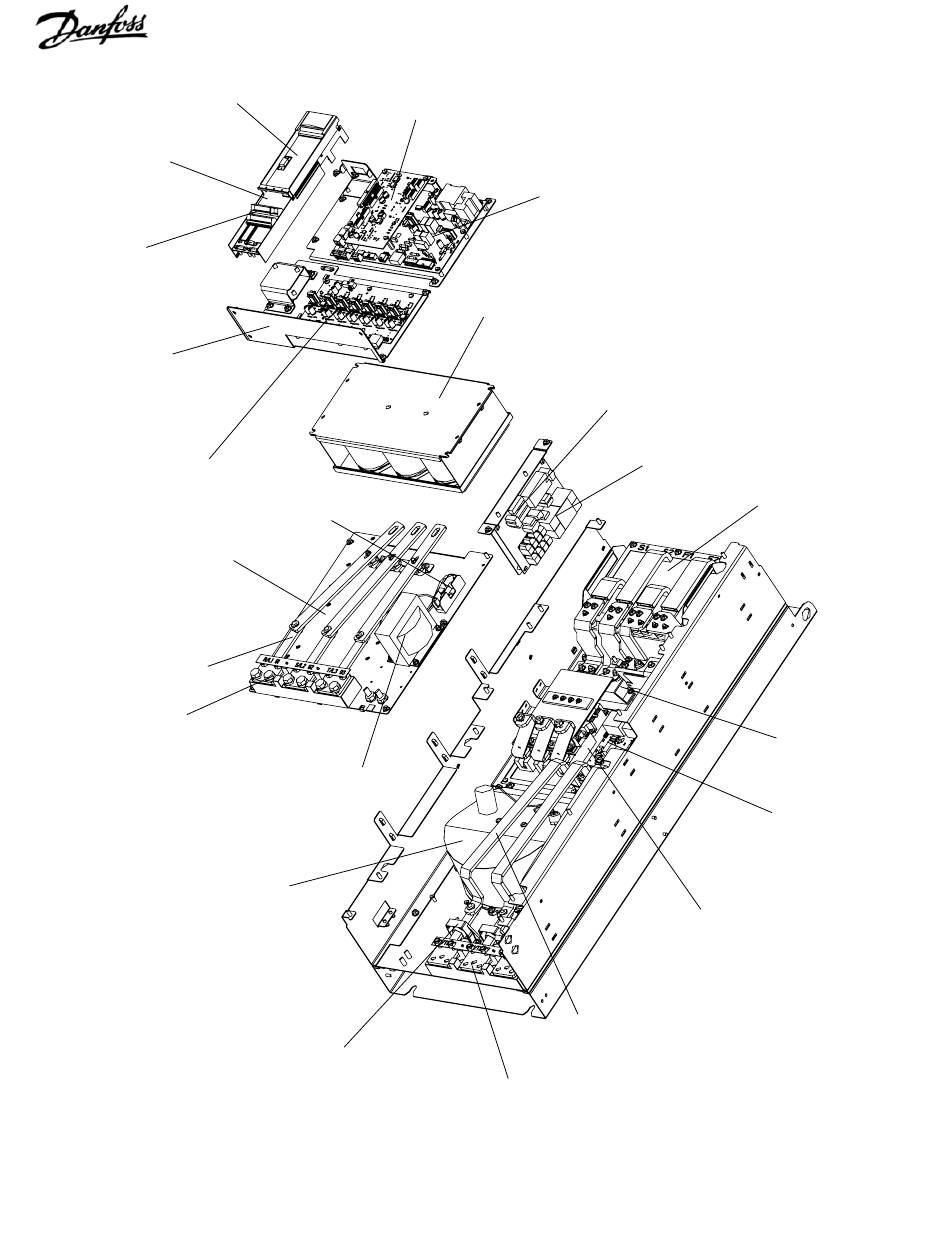

Exploded View D1 Frame Size
Power card
PCA 3
Capacitor bank assembly
CBANK1 + PCA9
Soft charge fuses
Soft charge card
PCA 11
IGBT output bus bar
DC inductor
L1
Soft charge module
R1 + CBL26
IGBT module
IGBT 1
SCR/Diode module
SCR 1, 2, 3
