10. Remove rectifier DC bus bars by removing 3
screws (T25) connecting each rectifier DC bus bar
to standoffs on SCR/Diode modules.
CONTINUED NEXT PAGE

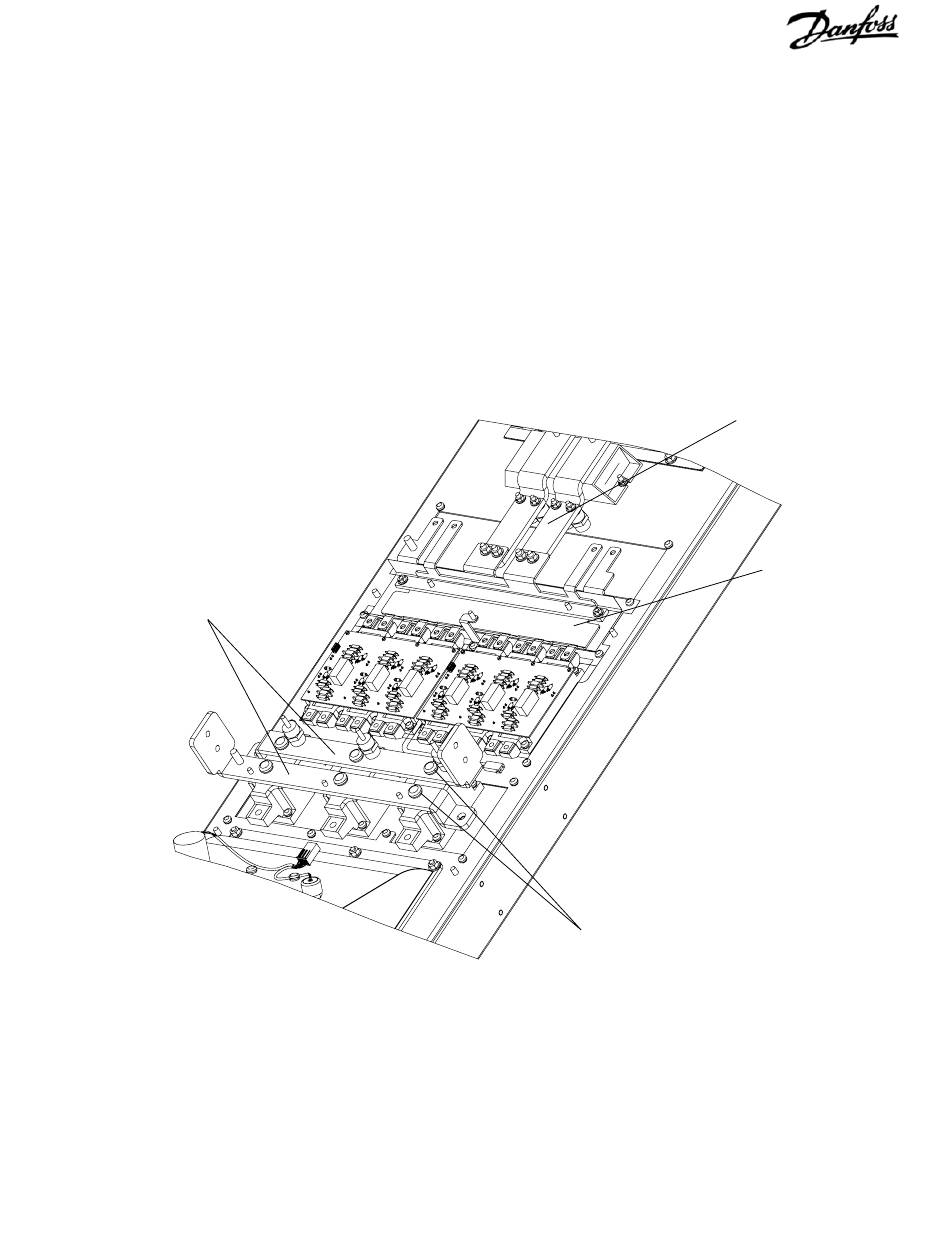

Rectifier DC bus bars BB23 or
BB24 per drive power rating
(Step 10)
Figure 6-10. D2 SCR/Diode Module (3 of 4)
Retaining screws (Step 10)
VLT is a registered Danfoss trademark
Bus bar BB27
Bus bar BB28
6-13
