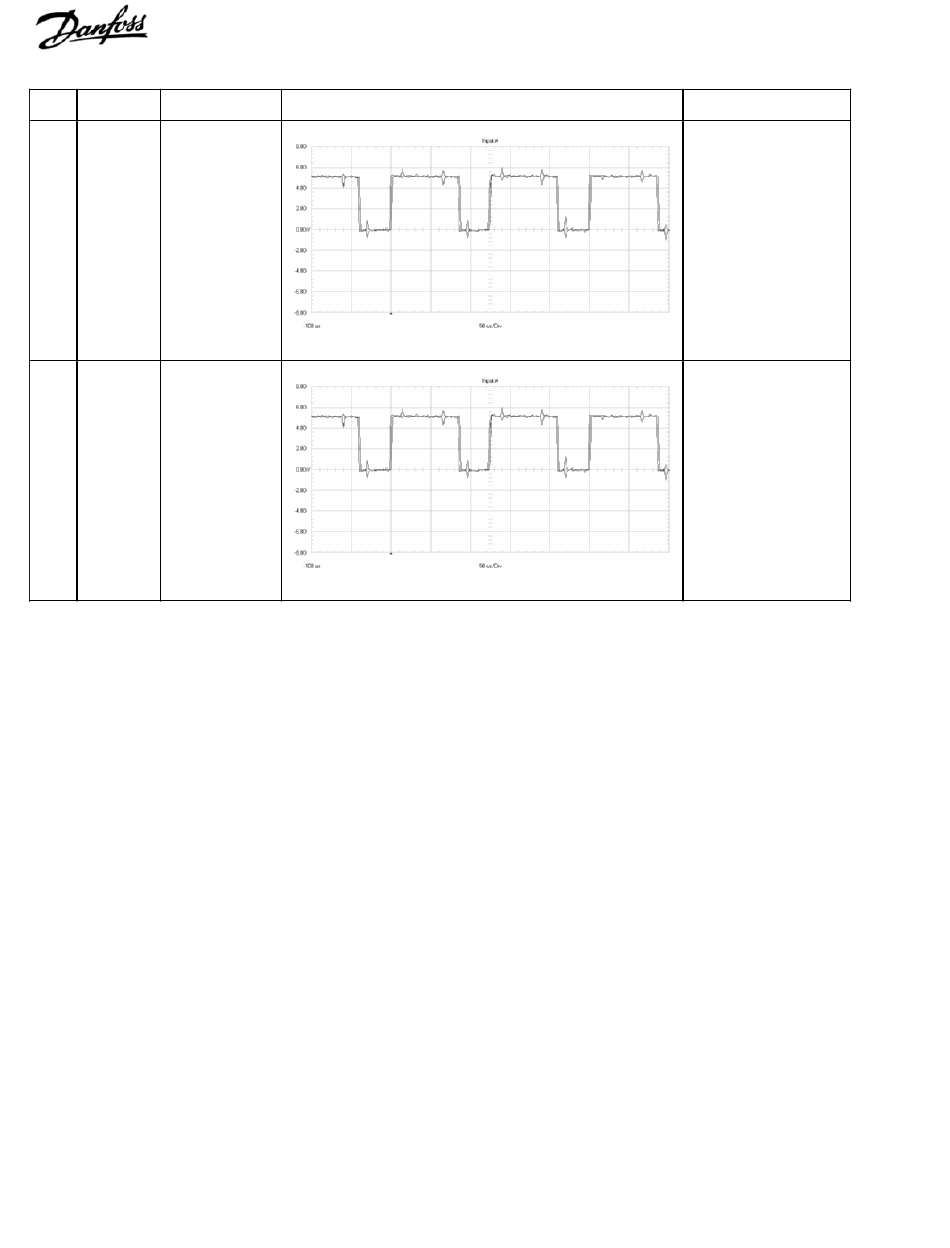

Pin
Schematic
Function
No.
Acronym
29
GWP_T
IGBT gate
signal, buffered,
W phase,
positive. Signal
originates
on Control Card.
30
GWN_T
IGBT gate
signal, buffered,
W phase,
negative. Signal
originates
on Control Card.
8-6
VLT is a registered Danfoss trademark
Description
2v/div 100us/div Run@10Hz
2v/div 100us/div Run@10Hz
Reading Using a Digital
Volt Meter
2.2 - 2.5 VDC
Equal on all phases
TP25-TP30
2.2 - 2.5 VDC
Equal on all phases
TP25-TP30
