6.15 AC Input Terminals
1. Remove AC input power cabling, as required.
2. Remove R/L1, S/L2, T/L3 terminals by removing 3
retaining screws.
Reinstall in reverse order of this procedure. Tighten mounting
nuts per specifications in the unit's instruction manual.
Retaining screws
(Step 2)
AC input cable connector
(Step 1)
AC input terminal
Retaining screw
(Step 2)

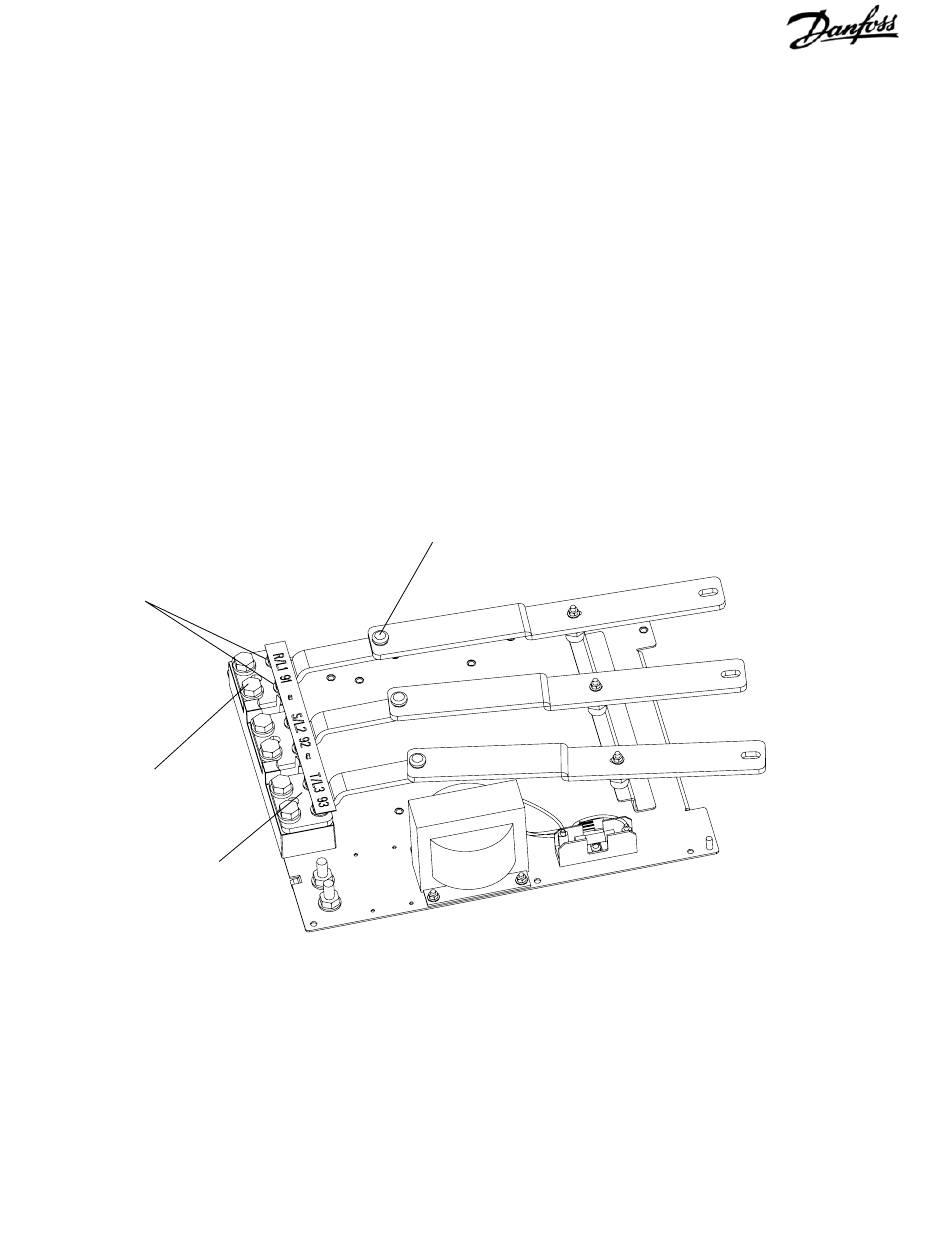

Figure 6-14. AC Input Terminals
VLT is a registered Danfoss trademark
6-21
