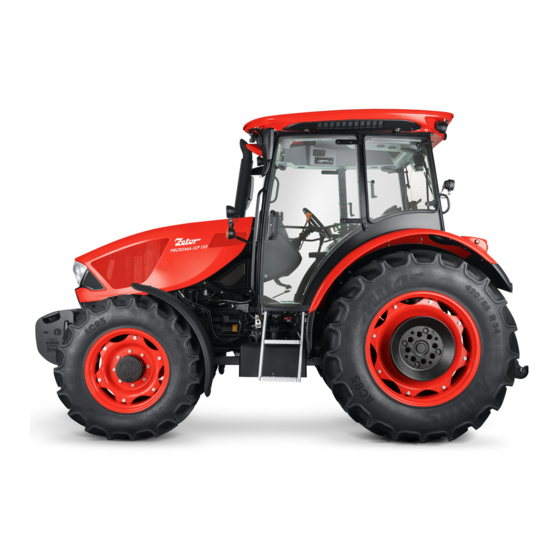

PROXIMA GP
OPERATOR´S MANUAL
01/2019
80
90
100
110
Tractor is Zetor. Since 1946.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROXIMA GP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Zetor PROXIMA GP Series

Summary of Contents for Zetor PROXIMA GP Series

  • Page 1 PROXIMA GP OPERATOR´S MANUAL 01/2019 Tractor is Zetor. Since 1946.
  • Page 2 ZETOR This Operator’s Manual for the Zetor tractors, which we are presenting to you will help you to become familiar with the operation and maintenance of your new tractor. Although many of you have rich experience with the operation of other tractors, please, read the information contained in this Operator’s Manual very carefully.

  • Page 4: Table Of Contents

    Aggregation tractor - machine/trailer ......................25 Tractors equipped with front end loader ...................... 25 Principles for operating tractors equipped with front end loader ..............26 Zetor tractors used for work in the woods ....................27 Safety labels ..............................27 Preventive daily service ..........................29 Preventive daily maintenance........................
  • Page 5 CONTENTS Immediately after cooling the cabin ......................42 Operation of heating or air-condition with tractor´s work ................42 Heating and air conditioning vents ......................43 Heating and air conditioning vents control ....................43 *Air filter with active carbon ......................... 44 Control panel on right cab pillar ........................
  • Page 6 CONTENTS Replenish fuel .............................. 73 High temperature of the cooling liquid ......................73 Signalling of driver's seat ..........................73 Operation ................................. 75 Starting the engine ............................75 Non-permitted starting ..........................75 If you do not succeed in starting the engine ....................76 Ignition system failure signalization ......................
  • Page 7 CONTENTS Coupling of a single-axle trailer ......................... 101 Uncoupling of a single-axle trailer ......................101 Hook of the mounting for a single-axle trailer .................... 101 Coupling with a trailer or semi-trailer ......................102 Maximum permissible vertical static load of hitches for trailers and semi-trailers ........103 Pto drive of agricultural machines ......................
  • Page 8 CONTENTS Limitation of the upper position of the three-point hitch ................134 Lowering speed ............................134 Free position .............................. 134 Setting the control of three-point hitch ....................... 134 Manual setting of control of three-point hitch .................... 135 Automatic control of three-point hitch ......................135 Using the rear control ..........................
  • Page 9 Oil for the front driving axle ........................174 Oil for the hydrostatic steering of the tractors .................... 174 Specification of oils for Zetor engines equipped by diesel particle filter ............ 175 Specification of the oil for the gearbox housing and the final drive housing ..........175 Specification of the oil for the portals ......................
  • Page 10 CONTENTS Replacing coolant ............................. 190 Check and replacement of oil in gearbox, axle drive and rear axle portals ..........191 Drainage and inspection holes ........................191 Oil replacement in gear system ......................... 192 Changing suction filter ..........................192 Replacement of the transmission oil cleaner element with hydraulic pump suction filter ......193 Replacement of oil filter element of pushing filter of the brake system .............

  • Page 12: Location Of Serial Numbers

    LOCATION OF SERIAL NUMBERS PCL18N001 1. Tractor data plate 2. Cab serial number 3. Engine serial number 4. Tractor serial number When ordering spare parts and within all written and oral communication always specify the data of your tractor that should be written in the frames below. Tractor type Tractor serial number Engine serial number...
  • Page 13 LOCATION OF SERIAL NUMBERS The 'right', 'left', 'front' and 'back' indications refer to the driving direction of the tractor. PCL18N002...

  • Page 14: Safety Instructions For Users

    SAFETY INSTRUCTIONS FOR USERS Pay increased attention to the parts in the instructions for use and maintenance indicated with this symbol. The symbol can be found next to all important warnings related to the operational safety. Follow these warnings and be particularly careful in these situations! Inform your colleagues and other users about these warnings.

  • Page 15: Used Pictograms

    SAFETY INSTRUCTIONS FOR USERS Used pictograms Engine oil pressure Differential lock Engine failure Slow operation Engine coolant temperature Fast operation Engine air filter clogged Hydraulic oil filter Engine emissions system, failure or Force regulation malfunction Engine emissions system temperature, Position regulation regeneration underway DPF filter clogged Upper working position...
  • Page 16 SAFETY INSTRUCTIONS FOR USERS Read operator's manual Rear work light Service indicator Work light Information alert Bonnet, front working lights Operator alert Tractor, auxiliary headlights Engine, urgent stop Beacon Engine glow plugs Interior compartment illumination Battery charging condition Rear fog lights Fuel Windscreen wiper, intermittent Hourmeter...
  • Page 17 SAFETY INSTRUCTIONS FOR USERS Seat occupant switch Seat adjustment, longitudinal (fore and aft) Seat adjustment, seatback recline Bottom seat cushion-Longitudinal adjustment controller Seat turning controller Seat tilt controller...

  • Page 18: General Safety Regulations

    SAFETY INSTRUCTIONS FOR USERS General safety regulations The tractor may only be operated by a trained person that has a valid driving licence and has been thoroughly acquainted with the operation and safety rules. Besides the safety instructions mentioned in the Operator´s Manual you are obliged to respect generally valid safety and traffic rules of the country where the tractor is used.

  • Page 19: Driving Operation

    During aggregation of Zetor tractors with machines and implements with high tensile resistance when the engine speed drops and the engine tends to stall, the 1R, 2R reduced gears must not be used for...

  • Page 20: Risk Of The Tractor Overturning

    SAFETY INSTRUCTIONS FOR USERS Risk of the tractor overturning The risk of the tractor overturning is increased especially when the following is used: a narrow wheel gauge inappropriate tractor travelling speed travel on the slope along a contour line or turning on the slope driving through ditches, depressions, near edges of ditches, chuckholes, steep slopes or when driving on edges of water courses and water areas driving up the steep slope, risk of overturning the tractor back...

  • Page 21: Fire Prevention Principles

    SAFETY INSTRUCTIONS FOR USERS Leaving the tractor Park the tractor only on an even land and where not possible, support with a shim assy. Do not park the tractor with an attached implement in the lifted position. Usually use the left-hand side tractor door when leaving the tractor. Look round whether any vehicle is coming, that could jeopardize your safety when leaving the tractor.
  • Page 22 SAFETY INSTRUCTIONS FOR USERS Health and environment protection The tractors are not equipped with special filters of air aspirated to the cab. Therefore, they are not designed for work with aerosols and other harmful substances. Coolant, brake liquid, kerosene, diesel fuel, mineral oil and other oil products that are used for the operation and maintenance of the tractor may cause various skin disorders in case of direct contact with your skin and can irritate mucous membranes, eyes, the digestive system and upper respiratory ways.

  • Page 23: Preventive Daily Maintenance

    When handling the battery you must pay increased attention and avoid short-circuits. In tractors equipped with a battery disconnector switch the disconnector off when handling the battery. Zetor tractors must not be operated with a disconnected battery as this may lead to a serious failure of the tractor.

  • Page 24: Driver's Seat

    PCLP18N003 Protection of cab against aerosols The cab of Zetor tractors in standard design is not designed for work with aerosols and other health hazardous substances. The level of cab protection in standard design complies with EN 15695-1:2009 standard - level 2 (only dust proof cab).

  • Page 25: Level Of External And Internal Noise

    SAFETY INSTRUCTIONS FOR USERS Level of external and internal noise Exposure to higher levels of noise over a prolonged period of time can lead to hearing disorders, possibly even deafness. Protect your hearing with protective equipment such as headphones, ear plugs, etc. Resulting noise levels when measuring noise for the hearing of a person in the vicinity of a tractor in accordance with the EU Directive 2018/985.

  • Page 26: The Level Of Vibrations On Driver´s Seat

    SAFETY INSTRUCTIONS FOR USERS The level of vibrations on driver´s seat ZETOR tractors are classified in the category A and the class I/II/III. The category A includes all tractors with specified levels of vibration due to similar specifications of the construction.

  • Page 27: Principles For Operating Tractors Equipped With Front End Loader

    ZETOR´s ap-proval. The loader may become dangerous as a result of not observing these instructions. ZETOR TRACTORS shall not be held responsible in case of any damage or injury. Use front end loader without additional weights on the tractor (danger of mutual contact). The load of front and rear drive axle must not exceed the maximum permitted load listed in the manual.

  • Page 28: Zetor Tractors Used For Work In The Woods

    Standard tractors Zetor do not provide sufficient protection for operation in forest terrain as, for example, protection against a fal-ling tree or branch on a cab or penetration of objects to a cab. If Zetor tractor is utilized for forest work, a tractor operated within the European Union must be protected against these risks.
  • Page 29 NOTES...

  • Page 30: Preventive Daily Service

    PREVENTIVE DAILY SERVICE Preventive daily maintenance Perform this maintenance daily or after every 8 - 10 hours of operation at the latest. PCLPN004 Fuel system leaks Check the fuel system for leaks, including the fuel tank. Repair any leaks immediately. The hole for draining dirt from the fuel tank is found in its bottom.

  • Page 31: Windshield Washer Tank

    PREVENTIVE DAILY SERVICE Windshield washer tank Windshield washer tank is placed on the rear wall of the cabin from the outside side. The washer tank capacity is 2 litres. In summer the reservoir should be filled with distilled water or mixture for washers. Antifreeze mixture for washers must be used in winter season for filling the washer tank.

  • Page 32: Hydrostatic Steering

    PREVENTIVE DAILY SERVICE Hydrostatic steering Check the oil level in the hydrostatic steering tank. Check the tightening of screws and nuts of the steering rods and levers. Check the condition of all the hoses of the hydraulic steering circuit for damage and for oil leaks. PCLPN012 Air cleaner If the air cleaner is heavily clogged with dirt, this condition is indicated by a sensor that lights up an indicator...

  • Page 33: Inspection Of Fouling Of Coolers

    PREVENTIVE DAILY SERVICE Inspection of fouling of coolers Open the front cowl and check the plates of the engine radiator of engine cooling liquid and air conditioning condenser, the cooler of oil of the front PTO shaft and the cooler of the gear oil (if the tractor is equipped with them) for fouling.

  • Page 34: Acquaintance With Tractor

    ACQUAINTANCE WITH TRACTOR Tractor user must be properly acquainted with recommended operating and safety rules for safe tractor operation in advance. It is too late to do it within operation! Safety cab Use the left side of the tractor for getting in and off the cab.

  • Page 35: Rear Window

    ACQUAINTANCE WITH TRACTOR Rear window Is equipped with a handle and in an open position is locked by gas spruts. Rear window is heated. When driving on an uneven surface we recommend to secure the window in a closed position - danger of window cracking.

  • Page 36: Shelf

    ACQUAINTANCE WITH TRACTOR Shelf Storage spaces are located on the right mudguard. PGPPN121 Tools box The tools box is located on the right side of the driver's seat. PGPPN122 Right rear panel The following parts are placed on the right rear panel: 1 - seven-pin aggregate socket;...

  • Page 37: Rear View Mirrors

    ACQUAINTANCE WITH TRACTOR Rear view mirrors Before the drive or starting the work, adjust rear view mirrors so that they enable to monitor the whole drive way or working field. PCLPN021 Aggregation opening Aggregation opening serves for cabelling or Bowden control of aggregated tools placement.

  • Page 38: Driver's Seat Sears

    ACQUAINTANCE WITH TRACTOR Driver's seat Sears PGPPN124 The Sears driver's seat can be equipped with mechanical (A) or pneumatic (B) suspension. 1 - Seat suspension control according to the driver's weight (adjustment by rotation, direction according to the pictogram on the seat bellows) 2 - Seat height adjustment control (releasing the control - higher seat, tightening the control - lower seat) 3 - Lateral seat adjustment lever (after raising the lever, the seat can be adjusted laterally, the lever is locked by returning the lever to its original position)

  • Page 39: Tilt Steering Wheel

    ACQUAINTANCE WITH TRACTOR Tilt steering wheel Adjusting the angle of the wheel The angle can be adjusted by tilting the wheel after it is unlocked by moving the lever (1) in the direction shown by the arrow. After adjusting, lock the wheel by pressing the lever (1) in the opposite direction than shown by the arrow.

  • Page 40: Heating Control Panel, * Air-Condition

    ACQUAINTANCE WITH TRACTOR Heating control panel, * air-condition The heating and air conditioning control panel is located on the right side of the roof ceiling of the cab. A - Heating valve control A - Fan control C - Air conditioning switch D - Cab air circulation switch PGPPN125 Heating valve control (A)

  • Page 41: Air Circulation In Cabin Control (D)

    ACQUAINTANCE WITH TRACTOR Air circulation in cabin control (D) To switch the internal air circulation on and off, press the switch (D). - The internal air circulation is switched off (the diode under the switch is off), the outside air is sucked through the filters into the cab - The internal air circulation is switched on (the diode under the switch is on), air is sucked from the cab area...

  • Page 42: Fast Heating Of The Cabin Area

    ACQUAINTANCE WITH TRACTOR Fast heating of the cabin area Proceed as follows: 1 - Turn the heating valve control (A) to the right (HI) position (fully open heating valve) 2 - Use the fan control (B) to select the appropriate fan speed (position 1, 2, 3) 3 - Switch on the internal air circulation with the switch (D) (the diode under the switch is on) 4 - Adjust the air vents at the desired angle so that the people in the cab are not directly blown on 5 - After heating the cab space, switch off the internal air circulation by pressing the switch (D) and set the...

  • Page 43: Immediately After Cooling The Cabin

    ACQUAINTANCE WITH TRACTOR Immediately after cooling the cabin Immediately, after the cab has cooled down and the internal temperature has been lowered to the desired value, we recommend: 1 - Switch off the internal air circulation by pressing the button (D) 2 - By opening the heating valve (A), perform the continuous regulation of the air temperature, with the air conditioning on.

  • Page 44: Heating And Air Conditioning Vents

    ACQUAINTANCE WITH TRACTOR Heating and air conditioning vents PGPPN189 Heating and air conditioning vents, front (A), side (B). Heating and air conditioning vents control A - opening the vent - open the vent by pressing it, where indicated by the arrow B - closing the vent - close the vent by pressing the slat of the vent in the direction of the arrow C - change the direction of air flow from the vent - set the...

  • Page 45: Air Filter With Active Carbon

    ACQUAINTANCE WITH TRACTOR *Air filter with active carbon PGPPN003 Active carbon filters are installed in the placed of standard dust filter and the replacement is done in the same way as with standard filters. Filter must be inserted with the white side to the grid. Assembly instructions are found in the chapter 'Maintenance instructions'.

  • Page 46: Control Panel On Right Cab Pillar

    ACQUAINTANCE WITH TRACTOR Control panel on right cab pillar PGPPN135 Distribution of switches in a tractor of standard construction (A) 1 - switch of the cycler of the front wiper 2 - two-position switch of the front wiper and of the control of the front washer 3 - switch of the rear wiper 4 - switch of heating of the rear wiper 5 - switch of heating of the rear mirrors...

  • Page 47: Wiper And Washer Of The Front Window

    ACQUAINTANCE WITH TRACTOR Wiper and washer of the front window The switch of the front wiper and control of the front washer are located on the right column of the cabin. The double-speed engine of the front wiper is controlled by the two-position switch of the front wiper.

  • Page 48: Panel Of The Instrument Panel

    ACQUAINTANCE WITH TRACTOR Panel of the instrument panel P18N051 a - Light Switch (off, parking, headlight) b - Tractor Grill Low Beam Lights Switch and Tractor Cab Low Beam Light Switch c - Rear Fog Light Switch (off - on). Function of the fog light is indicated by an illuminated symbol on the switch.

  • Page 49: Lights Switch

    ACQUAINTANCE WITH TRACTOR Lights switch a - illumination off b - side and end point lights on, illumination of licence label, illuminated c - all devices on in 'b' position. Lower beam head lights or head beam lights are engaged (according to the position of direction lights, lights and horn switches).

  • Page 50: Switch Box

    ACQUAINTANCE WITH TRACTOR Switch box Switchbox is placed on the dashboard, see arrow. PGPPN024 Switch box key in the position (0) The voltage of all the equipment controlled via the key is disconnected. The key can be removed. PCLPN035 Switch box key in the position (I) The voltage is connected to all the equipment excluding starter.

  • Page 51: Manual Throttle

    ACQUAINTANCE WITH TRACTOR Manual throttle A - Maximum speed of the engine B - Idle run The lever allows setting of speed of the engine within range A to B. PGPP014 Pedals and levers 1. Travel clutch pedal 2. Foot operated service brake pedals connected by latch 3.

  • Page 52: Road And Reduced Speeds Shifting Lever

    ACQUAINTANCE WITH TRACTOR Road and reduced speeds shifting lever H Road gears N Neutral L Reduced gears Shifting is carried out with tractor in standstill. PGPPN161...

  • Page 53: Pto Selection Control Lever

    ACQUAINTANCE WITH TRACTOR PTO selection control lever P18N016 a - independent revolutions of the PTO shaft drive - revolutions are dependent on the engine revolutions n - neutral position b - dependent revolutions of the PTO shaft drive through the gearbox - revolutions are dependent on the shifted gear Shifting is performed when the tractor is idling.

  • Page 54: Battery Disconnector

    ACQUAINTANCE WITH TRACTOR Battery disconnector P18N100 The battery disconnector is located on the left side of the tractor behind the driver's stairs. A - Battery connected B - Battery disconnected C - Disconnector plate is located on the cover of the accumulator battery When the engine is switched off, the engine control unit remains active for about 2 minute because of storage of operation data.
  • Page 55 NOTES...

  • Page 56: Instrument Panel

    INSTRUMENT PANEL Instrument panel - signal lamps P18N039 1 - green - left turn signal indicator 2 - blue - high beam indicator. Illuminated when the high beam is lit. 3 - green - 1st trailer turn signal light indicator 4 - green - 2nd trailer turn signal light indicator 5 - orange - warning light 6 - blue - operating protection indicator.

  • Page 57: Instrument Panel - Instruments

    INSTRUMENT PANEL Instrument panel - instruments P18N040 A - coolant thermometer B - fuel gauge C - engine speedometer D - information display Instrument panel - buttons P18N041 A - Reset button, exit from instrument panel menu B - Enter button, entry to instrument panel menu, confirmation of the selection of instrument panel menu item C - Scroll button in the instrument panel menu up or left D - Scroll button in the instrument panel menu down or right...

  • Page 58: Display Description

    INSTRUMENT PANEL Display description PGPPN191 The following values are displayed on the basic display: 1 - Neutral position of the reverse shift lever 2 - Engaged gear of the torque multiplier, 1 or 2 displayed according to gear engaged 3 - Air pressure symbol in the air-pressure system of the tractor 4 - Graphic representation of air pressure in the air-pressure system of the tractor 5 - Air pressure in the air-pressure system of the tractor 6 - Display with information to be displayed...

  • Page 59: Display - Change Of Display

    INSTRUMENT PANEL Display - change of display P18N041 By repeated pressing of buttons (C) and (D) you can click between individual displays of data on the display (so called screens). Press the button (C) or (D) for longer time to initiate automatic switching between individual screens which is performed while you keep the button pressed.

  • Page 60: Display - Display Of Air Pressure In The Air-Pressure System Of The Tractor

    INSTRUMENT PANEL Display - display of air pressure in the air-pressure system of the tractor P18N075 The air pressure in the tractor's air system is displayed on the instrument panel display. 1 - Air pressure symbol, white light, has no signaling function. 2 - Red display field, gradual filling of the field with red color indicates the increase of air pressure in the tractor's air-pressure system in the range from 0 bar to 4.5 bar.

  • Page 61: Display - Resetting Data

    INSTRUMENT PANEL Display - resetting data P18N047 The procedure for resetting data on the main screens where the data can be reset is as follows: 1 - Use the buttons (C) and (D) to select display of the corresponding main screen. 2 - Reset the data by longer pressing of the button (A) (RESET).

  • Page 62: Display - Service Menu

    INSTRUMENT PANEL Display - service menu Entering the service menu: Enter the service menu by longer pressing of the button (B) (ENTER). Use the buttons (C) and (D) to select the items. The selected item is marked with a frame. Exiting the service menu: Press the button (A) to return from the service menu to the main screen.

  • Page 63: Zeroing (Reset) Of The Indicator Of Service Inspection Intervals

    INSTRUMENT PANEL Zeroing (reset) of the indicator of service inspection intervals P18N073 When the maintenance was performed, zero (reset) the indicator of service inspection intervals. Enter the service menu by longer pressing of the button (B). Use the buttons (C) and (D) to select the calibration item indicated with the arrow (1). Press the button (B) to enter the calibration menu.

  • Page 64: Display - Error Messages

    INSTRUMENT PANEL Display - error messages During tractor operation, three types of error messages may appear in the display. A. - Warning of operational protection, that a small deviation from the set values or error by the operator occurred. The warning is displayed in the display for about 10 seconds and then the display is switched to the previously set main screen.

  • Page 65: Symbols Of Tractor Nodes

    INSTRUMENT PANEL Symbols of tractor nodes Engine Hydraulic systems Gears and travelling clutches System of treatment of exhaust gases Systems facilitating start of the engine...

  • Page 66: Display - History Of Defects

    INSTRUMENT PANEL Display - history of defects P18N076 Press the button (B) to enter the service menu 1 - use the buttons (C) and (D) to select the item listing of defects; press the button (B) to enter the screen selection of tractor nodes from which you want the listing of defects to be displayed.

  • Page 67: Display - Backlight Of Display

    INSTRUMENT PANEL Display - backlight of display P18N097 Press the button (B) to enter the service menu a - use the buttons (C) and (D) to select the item Display settings, press the button (B) to enter the screen with the display settings menu. b - the display settings menu contains these items: 1 - day mode, high intensity of the display backlight 2 - night mode, low intensity of the display backlight...

  • Page 68: Display - Setting The Automatic Mode Of The Display Backlight

    INSTRUMENT PANEL Display - setting the automatic mode of the display backlight P18N099 Enter the display settings menu. a - Use the buttons (C) and (D) to select the item (1) for the automatic mode of the display backlight. Long press the button (B) to enter the screen for setting the automatic mode of the display backlight (b).

  • Page 69: Display - Setting And Calibration

    INSTRUMENT PANEL Display - setting and calibration P18N078 Press the button (B) to enter the service menu 1 - use the buttons (C) and (D) to select the item Calibration; press the button (B) to enter the screen with the calibration menu. 1 - setting of display of revolutions of the rear PTO shaft - more information in the chapter POWER OF AGRICULTURAL MACHINES 2 - calibration of travel speed...

  • Page 70: Travel Speed Calibration

    INSTRUMENT PANEL Travel speed calibration PCLPN090 The instrument panel after assembly in the factory is calibrated. Perform a new calibration of the travel speed: - after a considerable tyre wear - when installing new tyres - during replacement of the instrument panel Calibration procedure - indicate the track of the length of 100 m on a suitable place - inflate the tractor tyres to the specified pressure;...

  • Page 71: Display - Machined Area

    INSTRUMENT PANEL Display - machined area The display of the work area (Performance Monitor) is only available on tractors with the electro-hydraulically controlled three-point hitch The same applies to the aggregation width setting and user selection in the Menu. The processed area display shows the processed area in hectares.

  • Page 72: Processed Area - User Selection

    INSTRUMENT PANEL Processed area - user selection PSH18N010 Enter the processed area menu - user selection. Three aggregation widths can be adjusted for each user. There is an extra memory of the processed area for each user. In the use selection menu (a) use the buttons (C) and (D) of one out of three users. Shortly press the button (B) to select the user with the set aggregation.

  • Page 73: Machined Area Record

    INSTRUMENT PANEL Machined area record PHS18N012 Enter the aggregation setting menu. Check whether the proper user and aggregation width (1) are adjusted or perform setting of the user and aggregation width. Each user has their values of the processed area; when the user is changed, values valid for the selected user are displayed on the main screen.

  • Page 74: Instrument Panel - Warning

    INSTRUMENT PANEL Instrument panel - warning Replenish fuel When the fuel signal lamp (orange) is lit up, the prompt to refill the fuel appears in the display for about 3 seconds. If the fuel is not refilled, the prompt always appears in the display when the key is moved from the position ´0´...
  • Page 75 NOTES...

  • Page 76: Operation

    OPERATION Before a drive with the new tractor get to know how to shift gears and try individual positions of the shifting lever when the engine is stopped. During normal operation and before you set up, make sure that the technical condition ensures safe operation of the tractor.

  • Page 77: If You Do Not Succeed In Starting The Engine

    OPERATION If you do not succeed in starting the engine Return the key to '0' position. Wait 60 second and repeat the start. Never help the stopping engine by a starter. You are being exposed to the danger of starter damage.

  • Page 78: Starting The Engine While Using Coolant Heater

    OPERATION Starting the engine while using coolant heater PCLPN091 With low temperatures of the surroundings, engine starting eases heating coolant. Leadin electrical installation and its protection against dangerous contact must be done pursuant to valid regulations 1. First plug the plug to the heater. 2.

  • Page 79: Engine Heating

    OPERATION Engine heating PCLPN039 Do further heating of the engine when driving. Heating engine by lengthy idle run or abrupt revolutions increase is harmful to the engine. If the temperature of coolant has not reached 45°C, do not overcome engine revolutions over 2,000 rpm. Error signalling Errors arising during tractor operation are indicated by switching the corresponding signal lamp, acoustic signal...

  • Page 80: Drive Away

    OPERATION Drive away PCLPN039 1. Depress the clutch pedal. 2. Shift the main shifting lever to neutral position. 3. Start the engine. 4. Set the engine speed from 800 to 850 r.p.m. 5. Select road or reduced gears. 6. Shift the reversing lever to the tractor's travel direction (to the front or reversing). 7.

  • Page 81: Diesel Particle Filter

    OPERATION Diesel particle filter The exhaust system of a tractor is equipped with a diesel particle filter which serves for cleaning exhaust fumes. Solid particles (carbon particles) are collected and burned in diesel particle filter which originate by burning diesel. PCLPN081 Indication of operation of the diesel particulate filter is indicated by the pair of signal lamps (green and orange) on the instrument panel.

  • Page 82: Diesel Particle Filter Failure Codes

    OPERATION Diesel particle filter failure codes Failure Operator´s activity code E: 11, 12, 21, The tractor can be 22, 23, 31, worked without any 34, 35, 37, limitations, after 38, 41, 42, terminating your work, 51, 52, 61, contact authorized service and report the code of failure.

  • Page 83: Gear Shifting

    OPERATION Gear shifting The tractors are equipped with a four-speed synchronized transmission, a two-speed torque multiplier, a reverser and a two-speed reduction. The four-speed transmission is operated by the main gearshift lever (1) with buttons for the torque multiplier control. The gearshift scheme is located on the gearshift knob label and on the sticker on the right bottom windshield.

  • Page 84: Shifting Road And Reduced Speeds

    OPERATION Shifting road and reduced speeds H - road speeds N - neutral L - reduced speeds Shifting of gears of the main gearbox with reduced speeds is the same as with road speeds. Considering low speed of the tractor, change nearly always means moving off from rest.

  • Page 85: Gear Shifting From Lower To Higher Gears

    OPERATION Gear shifting from lower to higher gears Depress the clutch pedal (clutch disengaged). At the same time release the pedal of foot fuel control and shift the applicable higher gear. Release the clutch pedal (clutch is engaged) smoothly and at same time increase engine revolutions.

  • Page 86: Differential Lock

    OPERATION Differential lock P18N061 Activation of the differential closure is performed by pressing the button on the instrument panel which is, when released, automatically returned into its original position. Activation of the differential closure is indicated by the activated symbol on the display of the instrument panel, by the activation of the signal lamp on the instrument panel and by the activated symbol on the button.

  • Page 87: Driving With Engaged Front Driving Axle

    OPERATION Driving with engaged front driving axle Use the front driving axle when tyre slip of rear wheels occurs to increase the pulling power of the tractor. Driving with the activated front driving axle is not recommended on the road or on a hard surface (driving with the activated front driving axle causes increased wear of front tyres).

  • Page 88: Foot Brakes

    OPERATION Foot brakes Foot brakes are disc type, wet, controlled hydraulically by the pressure oil from common gearbox filling with strengthening effect of the pump and with automatic pressure equalization in brake circuits. When driving on the road, both pedals must be connected with a latch.

  • Page 89: Brakes Of Trailers And Semi-Trailers

    OPERATION Brakes of trailers and semi-trailers Connection of the ABS system of the trailer or semi-trailer If the trailer or semi-trailer is equipped with the ABS system, insert the control cable of this system into the socket located in the rear part of the tractor, near outlets of the outer hydraulic circuit.

  • Page 90: Warning Indication Of Air Pressure Drop

    OPERATION Warning indication of air pressure drop Decrease of air pressure below 450 kPa is indicated by activation of the red signal lamp on the instrument panel. The tractor with the braked trailer or semi-trailer during pressure decrease in the air-pressure system below 450 kPa must not continue in operation until increase of air pressure occurs.

  • Page 91: One-Hose And Two-Hose Brakes

    OPERATION One-hose and two-hose brakes 1. clutch head of one-hose brakes 2. clutch heads of two-hose brakes Clutch heads after disconnection or without a connected trailer, articulated trailer must be closed by a valve. PCLPN042 One-hose brakes Valve is marked with a black colour. Operating pressure is adjusted with the control valve at 600 ±...

  • Page 92: Hydraulic Brakes Of Trailers

    OPERATION Hydraulic brakes of trailers Connect hydraulic brakes of trailer or articulated trailer to the quick couplings marked by an arrow. Control of hydraulic brakes of trailers (articulated trailers) and control of tractor brakes is done so that the braking effect of both vehicles is synchronized.

  • Page 93: Stopping The Engine

    OPERATION Stopping the tractor - hand brake Under normal conditions stop the tractor slowly. Shortly before stopping: 1. Tread on the clutch pedal and brake the tractor by the foot brake. 2. Move the main shifting lever to neutral position. 3.

  • Page 94: Warning Signalization Of Hydrostatic Steering Failure

    OPERATION Warning signalization of hydrostatic steering failure Hydrostatic steering pump failure is with oil pressure drop under 120 kPa behind a pump signalized on a dashboard by an applicable symbol. Note: When starting the tractor or with low engine revolutions, the control may blink, if it switches off after starting or increasing the revolutions, it is not a failure.
  • Page 95 NOTES...

  • Page 96: Running-In The Tractor

    RUNNING-IN THE TRACTOR General principles of new tractor run-in in first 100 hours of operation PGPPN001 During first 100 hours of operation: Load tractor in a normal way, avoid operation with low or maximum engine revolutions Avoid operation under partial loading of the engine Avoid excessive idle run operation Check oil levels in engine often (during this time increased oil consumption is normal) Check screw joints in particular in supporting parts of tractor...
  • Page 97 NOTES...

  • Page 98: Transport Use

    TRANSPORT USE Before a drive make sure that the technical condition ensures safe operation of the tractor. In case that a trailer or implement is coupled, verify its coupling and proper fixing of the load. Never get out of the tractor to couple a trailer yourself. Pay also attention to your assistant. Front hook P18N095 Used only for towing tractor without connected trailer or a different connected machinery.

  • Page 99: Automatic Mouth Of The Cbm Stage Hitch

    TRANSPORT USE závěsy_2 A - Multi-level hitch bracket B - The hitch (B) can be adjusted in the range of holes 3-8 see Figure (A) C - The hitch (C) can be adjusted in the range of holes 3-8 see Figure (A) D - The hitch (D) can be adjusted in the range of holes 4-8 see Figure (A) E - The hitch (E) can be adjusted in the range of holes 7-8 see Figure (A) Automatic mouth of the CBM stage hitch...

  • Page 100: Modular System Of Hitches For Trailers And Semi-Trailers

    TRANSPORT USE Modular system of hitches for trailers and semi-trailers PCLPN051 Module types: Fig. (B) - Swinging draw-bar console Fig. (C) - Swinging draw-bar console with a fixed pin Fig. (D) - Console with a ø 80 ball Disassembly, fig. (A): 1 - Remove the locking screw (1).

  • Page 101: Console With A Ø 80 Ball Module

    TRANSPORT USE Console with a ø 80 ball module The console with a ø 80 ball is only used to connect semi-trailers with a hitching device designed for a ø 80 ball. Releasing the hitch, fig. (A): By moving the lever (1) in the arrow direction you will remove the locking wedge (2).

  • Page 102: Hitch For A Single-Axle Cbm Semi-Trailer

    TRANSPORT USE Hitch for a single-axle CBM semi-trailer The hitch for a single-axle trailer can be equipped with a hook (A) that is designed for coupling of single-axle trailers having poles according to the standard ISO 5692 (inner diameter of the eye 50 mm and height of the eye 30 mm) or pivoted pull bar (B).

  • Page 103: Coupling With A Trailer Or Semi-Trailer

    TRANSPORT USE Coupling with a trailer or semi-trailer PCLPN056 The tractor can be coupled only with a tractor trailer after matching of operating brakes of the tractor and pneumatic or hydraulic brakes of the trailer. In case of coupling with a semi-trailer the static loading of the rear axle of the tractor may not exceed the maximum permitted value.

  • Page 104: Maximum Permissible Vertical Static Load Of Hitches For Trailers And Semi-Trailers

    TRANSPORT USE Maximum permissible vertical static load of hitches for trailers and semi-trailers Hitch type Allowed Ø of Hitch type Allowed Ø of vertical hitch pin vertical hitch pin static load static load 2,000 kg 31 mm 2,000 kg 38 mm CBM GTF30015 CBM GTF30014 2,000 kg...
  • Page 105 NOTES...

  • Page 106: Pto Drive Of Agricultural Machines

    PTO DRIVE OF AGRICULTURAL MACHINES Work with PTO shaft Before attaching of an implement, driven by means of the tractor PTO shaft, check the speed compatibility of both, it means tractor PTO shaft and implement driven shaft (540 rpm or 1,000 rpm). Different PTO speed values may cause serious damages and injuries.

  • Page 107: Display Of Revolutions Of Pto Shafts

    PTO DRIVE OF AGRICULTURAL MACHINES Display of revolutions of PTO shafts (1) - In case that the tractor is equipped with the front PTO shaft, the revolutions of the front PTO shaft are shown on the display of the instrument panel after switching the front PTO shaft with the button on the right column of the cabin and rotation of the front PTO shaft.

  • Page 108: Control Elements Of Pto Shafts

    PTO DRIVE OF AGRICULTURAL MACHINES Control elements of PTO shafts The rear PTO shaft - the gear shift lever of dependent and independent revolutions PGPPN032 Shifting is performed when the tractor is idling and when the clutch pedal is pressed. a - independent revolutions of the PTO shaft (the number of revolutions depends on the number of engine revolutions) n - neutral position...

  • Page 109: The Buttons For Activation Of Pto Shafts

    PTO DRIVE OF AGRICULTURAL MACHINES The buttons for activation of PTO shafts PGPPN033 Activation and deactivation of PTO shafts is performed using switches: (A) the tractor is equipped with hydraulics with mechanical control - located on the right pillar of the cabin. (B) the tractor is equipped with electro-hydraulics EHR - located on the control panel of the outer hydraulic circuit 1 - button for activation of the rear PTO shaft...

  • Page 110: Setting Automatic Disengagement Of Pto Shaft Clutch - Display Description

    PTO DRIVE OF AGRICULTURAL MACHINES Setting automatic disengagement of PTO shaft clutch - display description PHS18N021 Gradually press the buttons (C) and (D) to display the screen of automatic switching off of the PTO shaft on the instrument panel. The following values are displayed on the screen: OFF-LIMIT (1) - position of arms of the rear three-point hinge where the clutch of PTO shaft is deactivated ON (2) - the current position of arms of the rear three-point hinge ON-LIMIT (3) - position of arms of the rear three-point hinge where the clutch of PTO shaft is activated...

  • Page 111: Work With Automatic Disengagement Of Pto Shaft Clutch

    PTO DRIVE OF AGRICULTURAL MACHINES Work with automatic disengagement of PTO shaft clutch PGPPN034 Switch on automatic deactivation of the clutch of PTO shaft using the button (A) when the tractor is going or standing with the engine running. The activation of the function of automatic deactivation of the clutch of PTO shaft is indicated by the symbol A (1) on the display of the instrument panel (B).

  • Page 112: Facilitating Connection Of Joint Shaft Of An Aggregated Machine To The Tractor

    PTO DRIVE OF AGRICULTURAL MACHINES Facilitating connection of joint shaft of an aggregated machine to the tractor PHSPN007 The button (1) located on the rear mudguards can be used to facilitate connection of the transmission shaft of the aggregated machine to the tractor. When the engine is running and the switch of the rear PTO shaft is deactivated, the rear PTO shaft starts to rotate when you press the button (1).

  • Page 113: Activation Of The Rear Pto Shaft - Independent Revolutions - Common Working Mode

    PTO DRIVE OF AGRICULTURAL MACHINES Activation of the rear PTO shaft - independent revolutions - common working mode PHS18N015 The number of PTO shaft revolutions depends on the number of engine revolutions. When the tractor is not going with its engine running and the clutch of the rear PTO shaft is deactivated: A - Use the gear shift lever to select suitable speed of the rear PTO shaft.

  • Page 114: Activation Of The Rear Pto Shaft - Independent Revolutions - Stationary Working Mode

    PTO DRIVE OF AGRICULTURAL MACHINES Activation of the rear PTO shaft - independent revolutions - stationary working mode PGPPN009 The number of PTO shaft revolutions depends on the number of engine revolutions. When the tractor is not going with its engine running and the clutch of the rear PTO shaft is deactivated: A - Use the gear shift lever to select suitable speed of the rear PTO shaft.

  • Page 115: Deactivation Of The Rear Pto Shaft - Independent Revolutions

    PTO DRIVE OF AGRICULTURAL MACHINES Deactivation of the rear PTO shaft - independent revolutions PHS18N017 A - Press the button on the right column of the cabin or on the panel of the outer hydraulic control (according to the tractor equipment) to deactivate the rear PTO shaft. B - This state is indicated by the fact that the revolutions of the rear PTO shaft are not shown on the display of the instrument panel.

  • Page 116: Front Pto Shaft

    PTO DRIVE OF AGRICULTURAL MACHINES Front PTO shaft Front PTO shaft is equipped with a solid six or twenty-one splined end point and it comes only in design of 1,000 revolutions. Tractor may be equipped with front PTO shaft with varied direction of spinning: In compliance with the direction of engine revolutions (standard)

  • Page 117: Activation Of The Front Pto Shaft - Stationary Working Mode

    PTO DRIVE OF AGRICULTURAL MACHINES Activation of the front PTO shaft - stationary working mode PHS18N025 The number of PTO shaft revolutions depends on the number of engine revolutions. When the tractor is not going with its engine running: A - Brake the tractor with the hand brake. B - The reversing gear lever must be in the neutral position.

  • Page 118: Maximum Transferred Output

    PTO DRIVE OF AGRICULTURAL MACHINES Maximum transferred output P15N038 Output shaft Transferred power front 1,000 min 60 kW* rear 1,000 min full power 540 min full power 540E min full power Drive of machines with greater inertia masses. (crushers, rotary harrows, reaping machines, etc.) Cardan shaft for drive of these machines must be equipped with the so called freewheel clutch which ensures disconnection of torque transfer with retroaction...
  • Page 119 NOTES...

  • Page 120: Hydraulic System

    HYDRAULIC SYSTEM Hydraulic system It consists of the inner and outer circuits. Gear pump is the source of pressure oil. Oil is taken from reservoir shared by gearbox and transmission. Hydraulic pump cannot be switched off. If the engine is working, the pump is on.

  • Page 121: Amount Of Oil Taken From Outer Hydraulic Drives

    HYDRAULIC SYSTEM Amount of oil taken from outer hydraulic drives If the amount of oil in transmission decreases after disconnecting the tool due to its permanent outflow out of the tractor into the machine's hydraulic circuit, refill the oil missing. If the amount taken exceeds the limit, hydraulic pump can absorb air and can get damaged.

  • Page 122: Connecting Machines And Tools To External Hydraulic Circuit

    HYDRAULIC SYSTEM Connecting machines and tools to External hydraulic circuit Connecting a double acting cylinder A double acting cylinder must always be connected to quick couplers of one section. Connecting machinery and tools assembled from more parts When working with agriculture machinery which is assembled from more parts (combinators, scrubbers, or harrows) where the edge frame is hinged to the central frame because it is diagonally folded during transport by independent hydraulic cylinders which are controlled by outer hydraulic circuit of the tractor, it is recommended to connect the lifting arms of the cylinders to quick couplers (3) and (5) which are equipped...

  • Page 123: Front Outlets Of The External Hydraulic Circuit

    HYDRAULIC SYSTEM Front outlets of the external hydraulic circuit On request, the tractor can be equipped with external hydraulic circuit outlets located in the front. The quick couplings (1) and (2) are the pressure couplings, the quick coupling (0) is directly connected to the space of the axle final drive housing and is designed so that the return oil can flow back from the external hydraulic appliances.

  • Page 124: Mechanical Hydraulics

    MECHANICAL HYDRAULICS The hydraulic system is intended for lifting and lowering of agricultural machines and implements attached in the rear three point hitch. Hydraulics control panel Hydraulics control panel is located in the area of the right wing. Controlling the rear three-point hitch is enabled by the inner hydraulic circuit (1). Controlling outer hydraulic circuits (couplers) is enabled by outer hydraulic circuit (2).

  • Page 125: Controlling The Inner Hydraulic Circuit

    MECHANICAL HYDRAULICS Controlling the inner hydraulic circuit 1.position or power regulation lever 2.lever for selecting floating position, adjusting the height of the three-point hitch in position regulation or mixed regulation. 3.three-point hitch lowering speed control 4.hydraulic system sensitivity control 5.adjustable stop PGPPN040 Free (floating) position Free (floating) position makes it possible to work with tools...

  • Page 126: Hydraulic System Sensitivity Control

    MECHANICAL HYDRAULICS Hydraulic system sensitivity control Hydraulic system sensitivity control (4) adjusts the sensitivity of the hydraulics in power or mixed regulation. Turning the knob in (a) direction increases sensitivity, turning it in (b) direction decreases sensitivity. PGPPN037 Position regulation of the lifting of the rear three-point hitch PGPPN043 Position regulation of the lifting of the rear three-point hitch means that the tool connected to the rear three- point hitch is automatically kept in the same height (position) with regard to the tractor.

  • Page 127: Power Regulation Of The Lifting Of The Rear Three-Point Hitch

    MECHANICAL HYDRAULICS Power regulation of the lifting of the rear three-point hitch PGPPN044 Power regulation of the lifting of the rear three-point hitch means that the tool connected to the rear three- point hitch is automatically being adjusted depending on changing soil resistance. Set the adjustable stop (5) to a position on the edge between floating position and the beginning of the range of lifting of the rear three-point hitch.

  • Page 128: Exterior Rear Hydraulic Arms Controls

    MECHANICAL HYDRAULICS Exterior rear hydraulic arms controls Exterior rear hydraulic arms controls are located on the rear right wing. They make it easier for the operator to conncet tools by controlling the movements of the lower drawbars of the three-point hitch from the outside. They only serve for connceting and disconnecting the tools.

  • Page 129: Outer Hydraulic Circuit Controls

    MECHANICAL HYDRAULICS Outer hydraulic circuit controls The control levers of the outer hydraulic circuit are distinguished by colours. The lever colour corresponds to the colour of quick coupler dusters that are controlled by the corresponding lever. PGPPN047 Outer hydraulic circuit controls are located on the right wing. lever (a) controls the lower section of distributor - quick couplers (1) and (2) lever (b) controls the central section of distributor - quick couplers (3) and (4) lever (c) controls the upper section of distributor - quick couplers (5) and (6)

  • Page 130: Different Functions Of Outer Hydraulic Circuit Control Levers

    MECHANICAL HYDRAULICS Different functions of outer hydraulic circuit control levers PGPPN049 There are four positions of the lever (a): N - Neutral position. Quick coupler drives (1) and (2) are closed and oil in the hydraulic appliance connected is blocked. Lever (a) is locked in this position. 1 - Pressure in quick coupler (1).
  • Page 131 MECHANICAL HYDRAULICS PGPPN051 There are four positions of the lever (c) which controls quick couplers (5) and (6): N - Neutral position. Quick coupler drives (5) and (6) are closed and oil in the hydraulic appliance connected is blocked. Lever (c) is locked in this position. 5 - Pressure in quick coupler (5).

  • Page 132: Electro-Hydraulic System

    ELECTRO-HYDRAULIC SYSTEM Control element functions PGPPN054 1. Lifting switch a - Transport, lifting b - STOP c - Regularity of lowering (working) d - Free position, fast sinking- automatic return of lever to (c) position by a spring 2. Blocking (in transport position) 3.

  • Page 133: Blocking Cancellation

    ELECTRO-HYDRAULIC SYSTEM Blocking cancellation When you switch on the electric installation with the key of the switching box (I), the lifting device remains blocked electronically - the lifting and lowering function is deactivated; on the EHR-B control panel the diagnostic LED (7) and the vibration dampening LED (11) shortly light up - the system self-test is in progress.

  • Page 134: Transport Of Implements

    ELECTRO-HYDRAULIC SYSTEM Transport of implements Shift the lifting lever (1) to position 'a' and block it with the moving latch (2). Blocking the lifting lever (1) by the moving latch (2) in position (a): A - Lever movement blocked B - Lever movement not blocked When the tractor with an attached implement is stopped, the implement must be lowered onto the ground (it must not be left in the lifted position).

  • Page 135: Limitation Of The Upper Position Of The Three-Point Hitch

    ELECTRO-HYDRAULIC SYSTEM Limitation of the upper position of the three-point hitch It is activated with the control (5). The limitation can be implemented in the upper half of the three-point hitch lift. PGPPN060 Lowering speed The lowering speed of the three-point hitch is set with the control (3).

  • Page 136: Manual Setting Of Control Of Three-Point Hitch

    ELECTRO-HYDRAULIC SYSTEM Manual setting of control of three-point hitch PGPPN074 Perform according to 'Cancel blocking' part and set the required position of elements with regard for the nature of performed works. To reach the depth of working tools, there is a control (4). For setting the kind of control and its mixing, use a control (6).

  • Page 137: Using The Rear Control

    ELECTRO-HYDRAULIC SYSTEM Using the rear control The rear control is used to connect and disconnect implements. The lifting switching lever (1) on the EHR-B electro-hydraulic control panel must be in position (b) or (c). The designation symbols of buttons on both the tractor fenders correspond to the movement direction of the three-point hitch after their pressing.

  • Page 138: Indication Of Ehr-B Errors

    ELECTRO-HYDRAULIC SYSTEM Indication of EHR-B errors The electronic part of the electro-hydraulic system continuously checks proper functioning of the system. Possible errors are indicated by repeated flashing combinations of the diagnostic LED (7). After the remedy of the error the diagnostic LED (7) goes off.

  • Page 139: Description Of Minor Errors Of The Ehr-B Electro-Hydraulic System

    ELECTRO-HYDRAULIC SYSTEM Description of minor errors of the EHR-B electro-hydraulic system PGPPN076 Flashing combination of the diagnostic LED (7). Error location Possible cause of the error Long Short pause pause flashes flashes Right dynamometric pin Faulty dynamometric pin Left dynamometric pin (A) Faulty contact or interrupted conductor of the dynamometric pin Short-circuit of the dynamometric pin conductor...

  • Page 140: Outer Hydraulic Circuit

    ELECTRO-HYDRAULIC SYSTEM Outer hydraulic circuit It supplies pressure oil for hydraulic devices on outer drives of hydraulics ended with couplers. Coupler sockets with 12.5 mm bore are in accordance with the international recommendation of ISO. P+13N011 Outer hydraulic circuit controls The control levers of the outer hydraulic circuit are distinguished by colours.

  • Page 141: Locking Control Levers

    ELECTRO-HYDRAULIC SYSTEM Locking control levers Outer hydraulic circuit control levers are locked in neutral (N) position. To unlock them, raise the lock control (1) and turn it to a stop point in the direction shown by the arrow. To lock them again, move the levers to neutral (N) position and turn the lock control in the opposite direction than shown by the arrow to a stop point and push the control down.

  • Page 142: Different Functions Of Outer Hydraulic Circuit Control Levers

    ELECTRO-HYDRAULIC SYSTEM Different functions of outer hydraulic circuit control levers PGPPN181 Yra keturios svirties (a) padėtys: N - neutrali padėtis. Greitosios jungties pavaros (1) ir (2) yra uždarytos, o hidraulinis skystis prijungtame hidrauliniame įrenginyje yra užblokuotas. Svirtis (a) yra užblokuota šioje padėtyje. 1 - slėgis greitojoje jungtyje (1).
  • Page 143 ELECTRO-HYDRAULIC SYSTEM PGPPN080 There are four positions of the lever (c) which controls quick couplers (5) and (6): N - Neutral position. Quick coupler drives (5) and (6) are closed and oil in the hydraulic appliance connected is blocked. Lever (c) is locked in this position. 5 - Pressure in quick coupler (5).

  • Page 144: Hitches

    HITCHES Rear three-point hitch Serves for connecting carrier-mounted or semi mounted agriculture machines and tools with linkage points of category I. or II. pursuant to ISO. The categories differ based on the length of linkage axis, which is the distance of the centre of balls of lower linkage joints with connected tool.

  • Page 145: Safety Principles Of Working With The Three-Point Hitch

    HITCHES Safety principles of working with the three-point hitch PCLPN086 Persons that are not authorized to work with the attached implement must not stand between the tractor and the hitched machine (implement) - (A). Do not park the tractor with an attached implement in the lifted position (B).

  • Page 146: Height Adjustment Of The Lifting Draw-Bars

    HITCHES Height adjustment of the lifting draw-bars Lifting pull rod see fig. (A): Perform adjustment by turning of the eye (1) after disconnection of the upper end of the lifting pull rod. Lifting pull rod see fig. (B): Pull out the arm cross (2) in direction of the arrow and perform adjustment by turning of the arm cross.

  • Page 147: Upper Pull Rod

    HITCHES Upper pull rod Length of the upper pull rod (1) is adjustable. The pull rod can be connected to the tractor to one of four holes in the bracket that transfers forces from the hitched implement to the torsion rod in the cover of the hydraulics regulation. When transporting an implement it is necessary to reposition the upper pull rod to the hole 'd' to prevent overloading of the lifting hydraulics kinematic...

  • Page 148: Lower Draw Bar With Slipping Out End Pieces

    HITCHES *Lower draw bar with slipping out end pieces Lower draw bar of linkages are equipped with semi- automatic protruding CBM end pieces. They enable connecting of tools behind a tractor. After protruding securing pegs (1) slip the end pieces out (2). Slipped-out end pieces are attached to tightening pins of mounted tools.

  • Page 149: Front Three-Point Hitch

    HITCHES *Front three-point hitch It is designed for attachment of frontally carried agricultural machines and implements in accordance with ISO 8759-2. During transport of a carried implement the hitch must always be hydraulically locked in the lifted position with valves that are installed on the left side of the tractor over the front axle.

  • Page 150: Hydraulic Lock Of The Front Three-Point Hitch

    HITCHES Hydraulic lock of the front three-point hitch Hydraulic locking of the front three-point hitch is performed in any position of the hydraulic cylinders with the ball valve in the front part of the tractor (2). Free position Valve levers are in the horizontal position - The hitch can be controlled from the cabin Locked position Valve levers are in the vertical position...
  • Page 151 NOTES...

  • Page 152: Wheel Tread Change

    WHEEL TREAD CHANGE Change of front wheels track with front drive axle Gauges of the front wheels of the front drive axle of the tractors equipped with screwed footer discs Change of wheel track is done by a change of rim and disc position. Secure the tractor against movement first, heave the axle with a hoist and support.

  • Page 153: Front Wheels Track Of Front Drive Axle In Tractors Equipped With Non-Removable Discs

    WHEEL TREAD CHANGE Front wheels track of front drive axle in tractors equipped with non-removable discs Secure the tractor against motion first, heave the axle by a heaver and support. Tighten the nut of front wheels at a torque of 250 - 290 Nm. The change of wheel tracks is done by turning the wheel and mounting with rim offset to the inside, while the wheels are interchanged to keep the right direction of the tyre pattern with arrow to the front.

  • Page 154: Front Wheels Toe-In

    WHEEL TREAD CHANGE Front wheels toe-in Proper toe-in of the front wheels of tractors with the front driving axle is 0 to 2 mm and is measured on the front wheel hub flanges (if the front wheels are installed, you can measure toe-in on the wheel rims). Toe-in 'S' is determined by the difference of the measured values: S = b - a.

  • Page 155: Setting Wheel Stops With Front Drive Axle

    WHEEL TREAD CHANGE Setting wheel stops with front drive axle Set the stops always with any wheel track change or tire replacement with front drive axle. Wheel stops with front drive axle must be set so that there would be a distance of at least 50 mm between front drive axle tires and tractor with full lock and full axle swing around central pin.

  • Page 156: Rear Wheels Wheel Track

    WHEEL TREAD CHANGE Rear wheels wheel track Gauges of the tractor rear wheels equipped with screwed footer discs Used Tires Tire width Adjustable tread in mm 13,6-36 1350 - 1800 16,9-28 1425 - 1800 16,9R28 1425 - 1800 16,9-30 1425 - 1800 16,9R30 1425 - 1800 480/70R30...

  • Page 157: The Gauges Of The Tractor Rear Wheels Equipped With Solid Discs

    WHEEL TREAD CHANGE The gauges of the tractor rear wheels equipped with solid discs Track of rear wheels in mm 16,9-30 2,000 480/70 R30 1,950 460/85 R30 1,950 19,9L-24IND 1,650 210/95R44 1,930 1,140 230/95R44 1930 1148...

  • Page 158: Additional Weights

    ADDITIONAL WEIGHTS Ballast weights are necessary to additionally load the tractor axles and to ensure manoeuvrability and stability of the tractor. Note: The weight of all ballast may vary by up to 5%. Weights in front of the bonnet mask Combination Weights of weights of weights...

  • Page 159: Chocking Of Front Wheels

    ADDITIONAL WEIGHTS Chocking of front wheels Before lifting of rear wheel do not forget to secure the tractor against any movement by chocking of front wheels! PGPPN105...

  • Page 160: Procedure Of Filling The Tyres With Liquid

    ADDITIONAL WEIGHTS Procedure of filling the tyres with liquid PGPPN181 1. Unload the tyre by lifting the tractor and turn it with the valve upwards (A). 2. Deflate the tyre and unscrew the valve insert. 3. Screw the adapter for water filling on and attach the liquid supply hose to it. 4.

  • Page 161: Antifreeze Solution For Tyre Filling

    ADDITIONAL WEIGHTS Maximum liquid weight (kg) by tyre dimensions Tyredimensions 12.4-36 14.9-28 16.9-28 16.9-30 480/70R30 16.9-34 18.4-30 18.4-34 Weight (kg) Antifreeze solution for tyre filling An antifreeze solution may only be used for filling tyres if you have purchases additional tubes! Caution, the tractor is equipped with tubeless tyres by the manufacturer! Water for Calcium...

  • Page 162: Electric Installation

    ELECTRIC INSTALLATION No additional interventions may be carried out on electric installation of the tractor (connection of other electric consumers) due to its possible overloading! With repairs of electric installation pay special attention in particular to manipulation with the battery to avoid any contact of electrolyte with skin or clothing.

  • Page 163: Battery Disconnector

    ELECTRIC INSTALLATION Battery disconnector P18N100 The battery disconnector is located on the left side of the tractor behind the driver's stairs. A - Battery connected B - Battery disconnected C - Disconnector plate is located on the cover of the accumulator battery When the tractor is switched off, disconnect the battery using the battery disconnector.

  • Page 164: Accumulator Battery Maintenance

    ELECTRIC INSTALLATION Accumulator battery maintenance PCLPN099 Keep the accumulator battery clean and properly fixed to the vehicle. However, the fixing device must not deform the battery case. In the case of polypropylene batteries the electrolyte level must not be below the minimum mark indicated on the case.

  • Page 165: Alternator

    ELECTRIC INSTALLATION Alternator Charging is indicated by the red signal lamp on the united board instrument which must be deactivated after the start. If the engine is running and the red signal lamp is activated, it is a charging error. If this situation occurs, stop the tractor and contact the service centre.

  • Page 166: Fuse Panels

    ELECTRIC INSTALLATION Fuse panels P18N006 There are three fuse panels located on the tractor: The fuse panel (A) is located on the left side of the tractor behind the driver's stairs, not far from the battery disconnector and it is accessible from the outside of the tractor.
  • Page 167 ELECTRIC INSTALLATION Fuse panel (B) PGPPN007...
  • Page 168 ELECTRIC INSTALLATION Note Fuse size Protected system brake lights, warning lights interrupter horn, beacon appliances powered when the key is switched to position I high beam lights with indicator light position lights left, instrument panel light, license plate lights position lights right low beam lights right, fog light with indicator light 7,5A low beam lights left...
  • Page 169 ELECTRIC INSTALLATION Fuse panel (C) Pos. Fuse size Secured system F44 5A 3pins socket F46 7.5A socket in the cabin F47 10A trailer brake system F48 10A trailer brake system F49 5A trailer brake system PHSU18N001 The glow fuse F61 is a strip type with the size of 80 A. It is located in the right side of the engine and is accessible when the engine bonnet is open.

  • Page 170: Checking The Adjustment Of The Front Grill Headlights

    ELECTRIC INSTALLATION Checking the adjustment of the front grill headlights PGPPN065 During a check on a test wall the tractor must stand on a level surface and the tyres must be inflated to the prescribed pressure. The basic vertical setting is 3.5% at the shipping weight of the tractor.In the horizontal direction the light beams must be parallel with the longitudinal axis of symmetry of the tractor.

  • Page 171: List Of Lamps

    ELECTRIC INSTALLATION List of lamps headlights HB3 12 V 60 W P 20d work lights H9 12 V 65 W PGJ19-5 front combination lights turn signal lights P21W 12 V 21 W BA 15s position lights R5W 12 V BA 15s low beam lights H7 12 V 55 W...

  • Page 172: Tractor Maintenance

    Next service inspections always after covering another 500 EH but not later than 12 months after the previous service inspection. The service inspections are a part of tractor maintenance. The services authorized by Zetor will provide professional performance of service inspections according to the manufacturer's instructions.

  • Page 173: Steps Performed Outside The Interval Of 500 Hours Of Work

    TRACTOR MAINTENANCE Steps performed outside the interval of 500 hours of work New tractor or a tractor after an overhaul then always after... engine Eh counter 500 1,000 1,500 2,000 2,500 3,000 hours (Eh) Check and adjustment of the 2,000 valve clearance Check of the injector opening pressure and injection nozzle...

  • Page 174: Filling And Filter Replacement

    TRACTOR MAINTENANCE Filling and filter replacement Related to new tractor or tractor after overhaul then always EH counter status 1000 1500 2000 after ... EH worked Engine oil replacement Engine oil cleaner insert replacement Fuel filter insert replacement Air filter insert replacement 500 or every year 1,000 or every Air filter safety insert replacement...

  • Page 175: Fuels, Coolants And Lubricants Used - Amounts

    The manufacturer does not take responsibility for any damages caused by the usage of service fillings that do not comply with requirements stated in this service manual. ZETOR service fillings To maintain best operational characteristics of your tractor, original operational Zetor fillings are recommended to be used. Motor oils...

  • Page 176: Specification Of Oils For Zetor Engines Equipped By Diesel Particle Filter

    TRACTOR MAINTENANCE Specification of oils for Zetor engines equipped by diesel particle filter Classification ACEA Viscosity class SAE Performance class API E9/E7 15W-40 API CJ-4/SM Specification of the oil for the gearbox housing and the final drive housing Viscosity Class SAE Performance Class API...

  • Page 177: Oil In The Rear Axle Gantries

    TRACTOR MAINTENANCE Oil in the rear axle gantries Manufacturer Oil designation Viscosity class Performance class API Paramo Gyrol - UTTO GL-4 Gyrol 80W GL-4 Mogul Trans 80 GL-4 Mogul Traktol UTTO/EKO GL-4 Esso Torque Fluid 62 GL-4 Aral EP 80 GL-4 Fluid HGS GL-4...

  • Page 178: Oil For The Hydrostatic Steering Of The Tractors

    TRACTOR MAINTENANCE Oil for the hydrostatic steering of the tractors Manufacturer Oil designation Classification Shell TELLUS DO 32 HLP DIN 51524 Aral Vitam DE 32 HLP DIN 51524 Fuchs RENOLIND10VG32 HLP DIN 51524-2 ÖMV Hyd HLP 32 HLP DIN 51524 PARAMO MOGUL H-LPD 32 HLP DIN 51524...

  • Page 179: A/C Coolant

    TITAN ZH LHM PLUS is not compatible with synthetic hydraulic fluids and therefore must not be mixed with them. Under no circumstances TITAN ZH LHM PLUS should be mixed with brake fluids of DOT type! Fuel for Zetor engines which are equipped with diesel paricle filter Diesel complies with EN 590 standard IMPORTANT NOTE! By using motor oil with elevated sulphur content, the service life of diesel particle filter can be significantly reduced.

  • Page 180: Tractor Greasing Plan

    TRACTOR MAINTENANCE Tractor greasing plan Safety instructions for lubrication of the tractor The tractor maintenance may be performed only by the trained personnel thoroughly familiarized with operational and safety principles. During maintenance of the tractor wear appropriate (specified) personal protective equipment (occupational footwear, protective gloves, safety goggles, etc.).

  • Page 181: Front Three-Point Hitch

    TRACTOR MAINTENANCE Front three-point hitch Pos. Identification No. of lubrication points Pins of cylinders of the front three-point hitch PGPPN111 Three-point hitch Pos. Identification No. of lubrication points Pins of auxiliary hydraulic cylinders Lifting draw-bars PGPPN183 Hitch mouth for a trailer Pos.

  • Page 182: Pin Of Coupling Switching Off

    TRACTOR MAINTENANCE Pin of coupling switching off Pos. Name Number of lubr. points Pin of coupling switching off PCLPN093 Reversion lever pin Disassemble the left side cover of the control panel. Disassemble the lock ring (1) of the reversion lever pin. Partly push out the reversion lever towards the instrument panel.
  • Page 183 NOTES...

  • Page 184: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS Most of operations of planned maintenance may be carried out by the driver or other user of the tractor. In case you do not have sufficient technical equipment, let the difficult operations carried out by a specialised repair shop. All works, connected with cleaning, lubrication and adjustments of the tractor or coupled mechanisms may only be carried out after stopping of the engine and other movable components except checks of brakes, recharging and hydraulic system.

  • Page 185: Replacing Full-Continuous Motor Oil Filter

    MAINTENANCE INSTRUCTIONS Replacing full-continuous motor oil filter To be done with every oil replacement in engine. Before you screw in a new filter, clean the sealing surface of the body (1) and the filter (2). Grease rubber sealing with oil, with which you will fill the engine and tighten the filter with your hand.

  • Page 186: Fuel System Venting

    MAINTENANCE INSTRUCTIONS Fuel system venting Before you vent, place a suitable vessel under the engine to catch dripping fuel from the filter and injection pump. 1. by several heaves of a manual control of feeding pump (1) pressurize the fuel system 2.

  • Page 187: Maintenance Instruction Of Dry Air Filter

    MAINTENANCE INSTRUCTIONS Maintenance instruction of dry air filter Maintenance of the dry air cleaner includes the following activities: 1. Inspection of suction line (joint tightness, hose damage) 2. Checking the main filter cartridge (clogging, damage) 3. Checking the securing filter cartridge Replace damaged parts Air cleaner disassembly Disassemble the air cleaner according to the following...

  • Page 188: Back Assembly Of Air Filter Elements

    MAINTENANCE INSTRUCTIONS Back assembly of air filter elements Do back assembly of air filter elements reversely. Mind the following with back assembly: - contact surfaces cleanliness - elements must not be deformed with assembly and must not vibrate after assembly - after closing the filter with a lid a perfect tightness of the whole filter must be ensured - after completing the maintenance of dry air filter, secure...

  • Page 189: Checking Amount Of Oil In Hydrostatic Steering Tank

    MAINTENANCE INSTRUCTIONS Checking amount of oil in hydrostatic steering tank Inspect daily before starting the operation with tractor standing horizontally. Lift off the bonnet. Unscrew dipstick, wipe off with a cloth and screw back in. After repeated unscrewing of the gauge, the level must not drop below bottom gauge line.

  • Page 190: Venting Hydraulic Circuit Of Hydrostatic Steering

    MAINTENANCE INSTRUCTIONS Venting hydraulic circuit of hydrostatic steering E722 1. secure the tractor against movement and lift the front axle 2. start the engine and allow it to run for approximately 1 minute in idle run 3. turn the steering wheel several times to both sides with idle run 4.

  • Page 191: Replacing Coolant

    MAINTENANCE INSTRUCTIONS Replacing coolant Proceed in the following way: 1 - Open the heating valve and release the pressure cap (C) on equalizing vessel. 2 - Drain the coolant from the radiator. Plug (A) is accessible after lifting the bonnet. 3 - Drain the coolant from the block of engine.

  • Page 192: Check And Replacement Of Oil In Gearbox, Axle Drive And Rear Axle Portals

    MAINTENANCE INSTRUCTIONS Check and replacement of oil in gearbox, axle drive and rear axle portals Oil level in the gear mechanisms is checked oil gauges, whitch is located in left rear part of the gearbox case. A - Standard oil filling Carry out checks when the engine is stopped.

  • Page 193: Oil Replacement In Gear System

    MAINTENANCE INSTRUCTIONS Oil replacement in gear system Prior to draining the oil always put a suitable vessel for catching the dripping oil under the tractor. 1. Unscrew the drain plugs, preferably after the drive or when the oil is heated to the operating temperature 2.

  • Page 194: Replacement Of The Transmission Oil Cleaner Element With Hydraulic Pump Suction Filter

    MAINTENANCE INSTRUCTIONS Replacement of the transmission oil cleaner element with hydraulic pump suction filter The oil cleaner is placed on the left side of the gearbox. Before replacing the oil cleaner element, place a suitable vessel for dripping oil under the tractor. 1.

  • Page 195: Front Pto

    MAINTENANCE INSTRUCTIONS Front PTO The inspection and filling plug of oil (1) is situated on the front side of the front PTO case. Note: The front PTO with the standard turning direction is equipped with a hollow bolt of the oil cooler hose instead of the inspection and filling plug.

  • Page 196: Cleaning The Heating Filters

    MAINTENANCE INSTRUCTIONS Cleaning the heating filters Regeneration of the filters located under the cover grille in the roof lip outside the cab according to the degree of clogging: - by tapping - by blowing with compressed air Check for clogging daily. Replace heavily polluted filters. The tractor's safety cab is not equipped with special air intake filters.

  • Page 197: Air-Conditioning Maintenance

    MAINTENANCE INSTRUCTIONS Air-conditioning maintenance The most important element of maintenance of the air-conditioning system is cleaning the AC condenser (it is installed in front of the engine cooler). If the AC condenser is clogged, it does not only reduce the cooling efficiency of the AC system but also the efficiency of the engine cooling.

  • Page 198: Working Pressure Of Air Brakes

    MAINTENANCE INSTRUCTIONS Working pressure of air brakes In the single- and double-hose version the air pressure at the double-hose coupling (2) (red cap) is 740 ± 20 kPa and at the single-hose coupling (1) max. 600 ± 20 kPa (at the moment the pressure controller relieves the compressor - blows out the air).

  • Page 199: Diesel Particle Filter Maintenance

    MAINTENANCE INSTRUCTIONS Diesel particle filter maintenance Leave the maintenance of diesel particle filter to an authorized service. PCLPN081...

  • Page 200: Adjustment

    ADJUSTMENT Almost all the following works require certain experience and more exacting service and diagnostic equipment. That's why we recommend to do the works at specialized or authorized workshops. Cogged belt tension If the V-belt is properly stretched, the belt deflection must be A = 7-8 mm when the force B = 50 N is applied on one belt.

  • Page 201: Bleeding Of Tractor Brake System

    ADJUSTMENT Bleeding of tractor brake system Brakes bleeding should be carried out by an authorized service center. Check and adjustment of service and parking brakes Adjustment must be done in the following steps: 1. service brake adjustment 2. parking brake adjustment Another way is not possible.

  • Page 202: Service Brake Adjustment

    ADJUSTMENT Service brake adjustment Secure the tractor against movement! 1. Lift the tractor rear wheels. 2. Loosen the nuts (2), nuts (6) and nuts (8). 3. Loosen the screw (7). 4. Let your helper turn one wheel and simultaneously tighten the screw (5) until the wheel starts to be braked.

  • Page 203: Bleeding Of Hydraulic Clutch Circuit

    ADJUSTMENT Bleeding of hydraulic clutch circuit PGPPN154 The liquid reservoir for control of the clutch is located on the left in front of the tractor cabin and is accessible when the front engine bonnet is open. During bleeding observe the amount of liquid in the balancing tank to avoid intake of air. 1.

  • Page 204: Adjustment Of Hitch For Single-Axle Trailers

    ADJUSTMENT Adjustment of hitch for single-axle trailers 1. Lift the hydraulic arms to their upper (transport) position with selected position regulation (P) 2. Screw the nuts on the adjustable pull rods to the guide tube without any play. 3. Further tighten the nuts by 3.5 turns. 4.
  • Page 205 NOTES...

  • Page 206: Main Technical Parameters

    MAIN TECHNICAL PARAMETERS Main tractor's parameters (mm) Note Maximum length with front and rear three- point hitch folded to the largest length of the vehicle without ballast 4678 Without ballast weights Minimum length without rear and front three-point hitch, without front ballast and 3625 - 3757 Without ballast weights carrier...

  • Page 207: Technical Data Of Engines

    MAIN TECHNICAL PARAMETERS Technical data of engines Tractor type GP 80 GP 90 GP 100 GP 110 Engine model 1106 1206 1006 1306 diesel, for-stroke with direct fuel injection, Engine type turbocharged Engine design serial, standing, water cooled Number of cylinders Cylinder capacity 4156 Bore x stroke...

  • Page 208: Permitted Maximum Load Of Front Axle (Kg)

    MAIN TECHNICAL PARAMETERS Permitted maximum load of front axle (kg) Track of wheels (mm) Travel speed 1610 - 1680 - 1760 - 1825 - (km.h 1040 1104 1525 1620 1690 1770 1835 2600 2600 4000 4000 4000 3800 3600 2600 2600 3000 3000...

  • Page 209: Front Tires Steerability

    MAIN TECHNICAL PARAMETERS Front tires steerability Travel speed Tire size 40 km.h Tire load capacity (kg) tire axle inflation (kPa) 1 pc 210/95R28 1250 2600 210/95R32 1400 2600 340/85R24 1650 2600 380/70R24 1650 2600 440/65R24 2120 2600 11,2-24 1000 2600 280/85R24 1215 2600...

  • Page 210: Bearing Capacity Of Rear Tires

    MAIN TECHNICAL PARAMETERS Bearing capacity of rear tires Travel speed Tire size 40 km.h Tire load capacity (kg) tire axle inflation (kPa) 1 pc 19,9L-24IND 2470 5000 16,9-28 1750 5000 420/85R28 2430 5000 480/70R28 2500 5000 540/65R28 2900 5000 16,9-30 1850 5000 420/85R30...

  • Page 211: Permitted Combinations Of Wheels For Tractors

    MAIN TECHNICAL PARAMETERS Permitted combinations of wheels for tractors Combination Front wheels Rear wheels dimension of tyre equivalent dimension of tyre equivalent 12,5/80-18 340/80-18 19,9L-24IND 500/70-24 340/85R24 13,6R24 16,9-34 380/70R24 420/85R34 16,9R34 440/65R24 480/70R34 540/65R34 340/85R38 13,6R38 11,2-24 16,9-28 420/85R28 16,9R28 480/70R28 540/65R28...

  • Page 212: Performance On Rear Pto Shaft

    MAIN TECHNICAL PARAMETERS Performance on rear PTO shaft Tractor type GP 80 GP 90 GP 100 GP 110 PTO power (kW ± 2%) - at rated engine speed and pto rated speed 1,000 min Engine not run-in 43.5 62.5 Engine run-in (after 100 EH) 52.5 65.5 Lifting force of the three-point hitch...

  • Page 213: Forward Travelling Speed Of The Tractor - 40 Km/H

    MAIN TECHNICAL PARAMETERS Forward travelling speed of the tractor - 40 km/h Speed of dependent rear Speed of dependent Speed of the tractor in km/h at nominal output shaft rear output shaft speed of the engine (2,200 rpm) and 540/1000 at 540/540E at nominal Multiplier given sizes of rear wheel tyres...

  • Page 214: Backward Travelling Speed Of The Tractor - 40 Km/H

    MAIN TECHNICAL PARAMETERS Backward travelling speed of the tractor - 40 km/h Speed of dependent rear Speed of dependent Speed of the tractor in km/h at output shaft rear output shaft nominal speed of the engine (2,200 540/1000 at 540/540E at nominal rpm) and given sizes of rear wheel Multiplier nominal speed of...

  • Page 215: Rear Independent Pto Shaft Rotation

    MAIN TECHNICAL PARAMETERS Rear independent PTO shaft rotation mark rotation shaft rotation/engine rotation shaft rotation/engine rotation 540 / 1987 598 / 2200 540/1000 1000 1000 / 1950 1128 / 2200 540 / 2005 592 / 2200 540/540E 540E 540 / 1584 750 / 2200 Speed of the Zuidberg front PTO Direction of...

  • Page 216: Calculation Of Tractor Load Limit

    MAIN TECHNICAL PARAMETERS Calculation of tractor load limit Connection of machines to the front or rear hydraulic arms must not exceed the allowed total load of the tractor, individual axles and tractor tyres. Therefore make sure before buying the aggregation that these assumptions are fulfilled using the following calculation: The following data must be known for the calculation: (kg) - instantaneous mass...
  • Page 217 MAIN TECHNICAL PARAMETERS Rear carried machine or front and rear carried combination 1. Calculation of the minimum front axle load G V min The calculated value of the minimum front axle load should be recorded in the table. 2. Calculation of the minimum rear axle load G H min The calculated value of the minimum rear axle load should be recorded in the table.
  • Page 218 MAIN TECHNICAL PARAMETERS Allowed load of the tractor and axles Table The real value according to the calculation must be lower or equal to the allowed value specified by the tractor manufacturer. Allowed value Real value according to according to the calculation manufacturer Total tractor weight...
  • Page 219 NOTES...

  • Page 220: Index

    INDEX Console with a ø 80 ball module Control element functions A/C coolant Control elements of PTO shafts Accumulator battery Control of front driving axle Accumulator battery maintenance Control of the external hydraulic circuit front outlets Acquaintance with tractor Control panel on right cab pillar Activation of the front PTO shaft - common working mode Controlling front three-point hitch Activation of the front PTO shaft - stationary working mode...
  • Page 221 List of lamps Front wiper speed switch Location of serial numbers Fuel filter element replacement Locking control levers Fuel for Zetor engines which are equipped with diesel Locking control levers paricle filter Lower draw bar with CBM hooks Fuel system leaks...
  • Page 222 Permitted maximum load of rear axle (kg) Specification of oil for the tractor hydrostatic control system Permitted maximum weight of set 'tractor + mounted Specification of oils for Zetor engines equipped by diesel machine' (kg) particle filter Pin of coupling switching off...
  • Page 223 Zeroing (reset) of the indicator of service inspection Valve for filling tyre tubes with liquid intervals Venting hydraulic circuit of hydrostatic steering ZETOR service fillings Vibration compensator (damper) Zetor tractors used for work in the woods Warning indication of air pressure drop...
  • Page 224  ...
  • Page 225 Operator's manual PROXIMA GP 80 PROXIMA GP 90 PROXIMA GP 100 PROXIMA GP 110 Edition: 1-100-2019 PublicationNo.:222.213.403 12/2019 ZETOR TRACTORS a.s. Department of Technical Documentation Trnkova 111 628 00 Brno...
  • Page 226 Made in EU...

This manual is also suitable for:

Proxima gp 80Proxima gp 90Proxima gp 100Proxima gp 110

Table of Contents

Save PDF
