Open-Q™ 212A Development Kit User Guide Version 1.0

3.8.9 Debug Serial UART – J22

The UART debug console can be accessed via J22 (USB micro-b). The UART signals are translated

to USB signal by the FTDI FT232RQ chip on the carrier board. Please ensure the

FTDI virtual COM

port driver

has been installed on your PC. Note: This port provides access to the APQ UART

interface only, for ADB function, please use J2901. See Section 3.8.24.

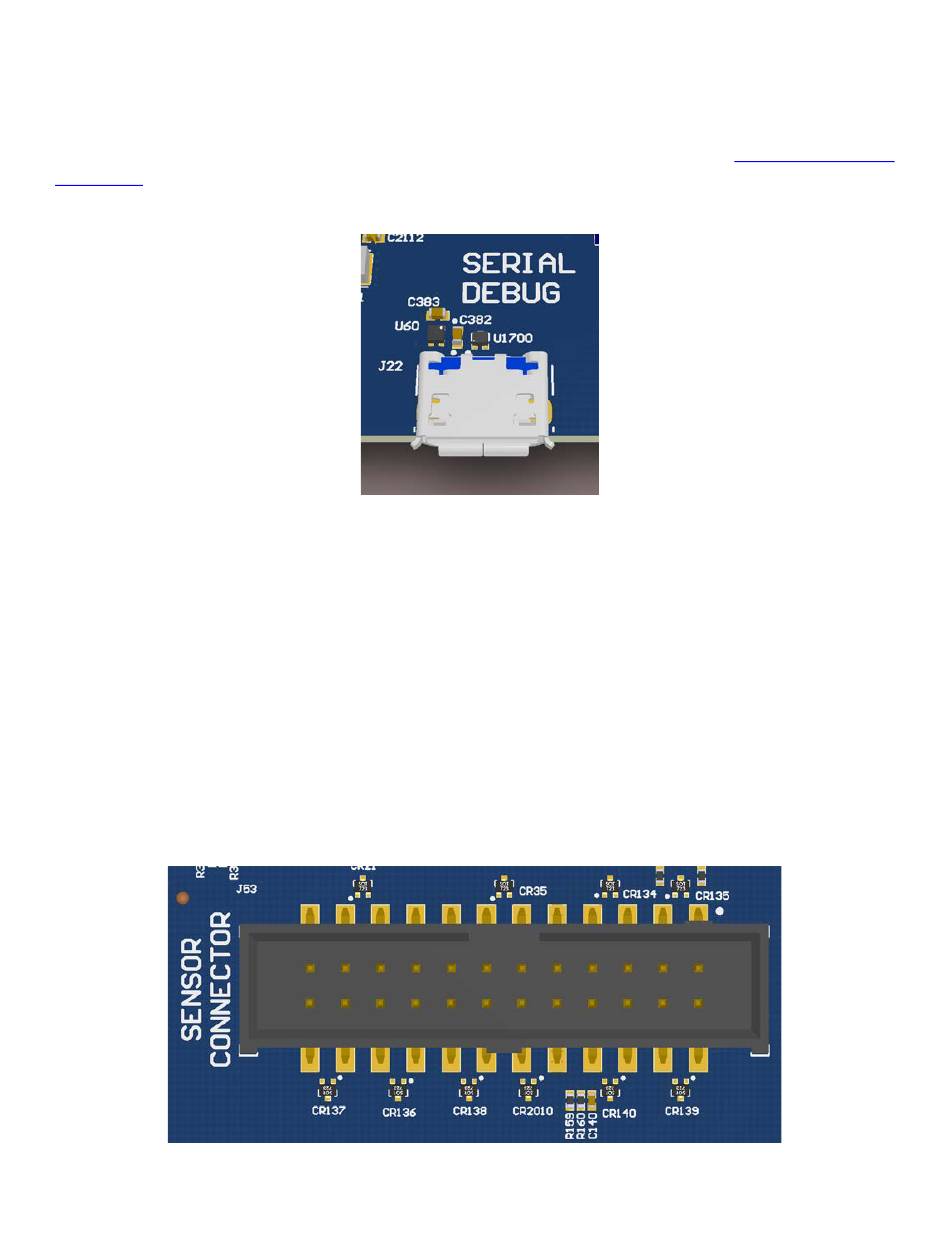

Figure 11 J22 Debug UART over USB

The following DIP Switch needs to be set in order to use the UART:

DIP Switch S10 Position 8 'FORCE_SW_UART' = OFF/OPEN

Serial Port Settings:

Baud Rate: 115200

Data: 8 bits

Parity: None

Stop:1 bit

Flow Control: None

3.8.10 Sensor IO Expansion Header – J53

Figure 12 J53 Sensor Expansion Header
