First Puck
4. Apply two to three drops of Loctite 243 to the threads at the top center of each puck as
shown in
5. Position the linkage plate assembly over the top of both pucks.
6. Secure the linkage plate to the top of the pucks using new washers (dome side up) and
new screws. Tighten each screw to 0.9 N•m [8 in•lb].
The Loctite must cure for 2 hours at 22° C [72° F] before using the puck.
MagneMover LITE Service Manual
Second Puck

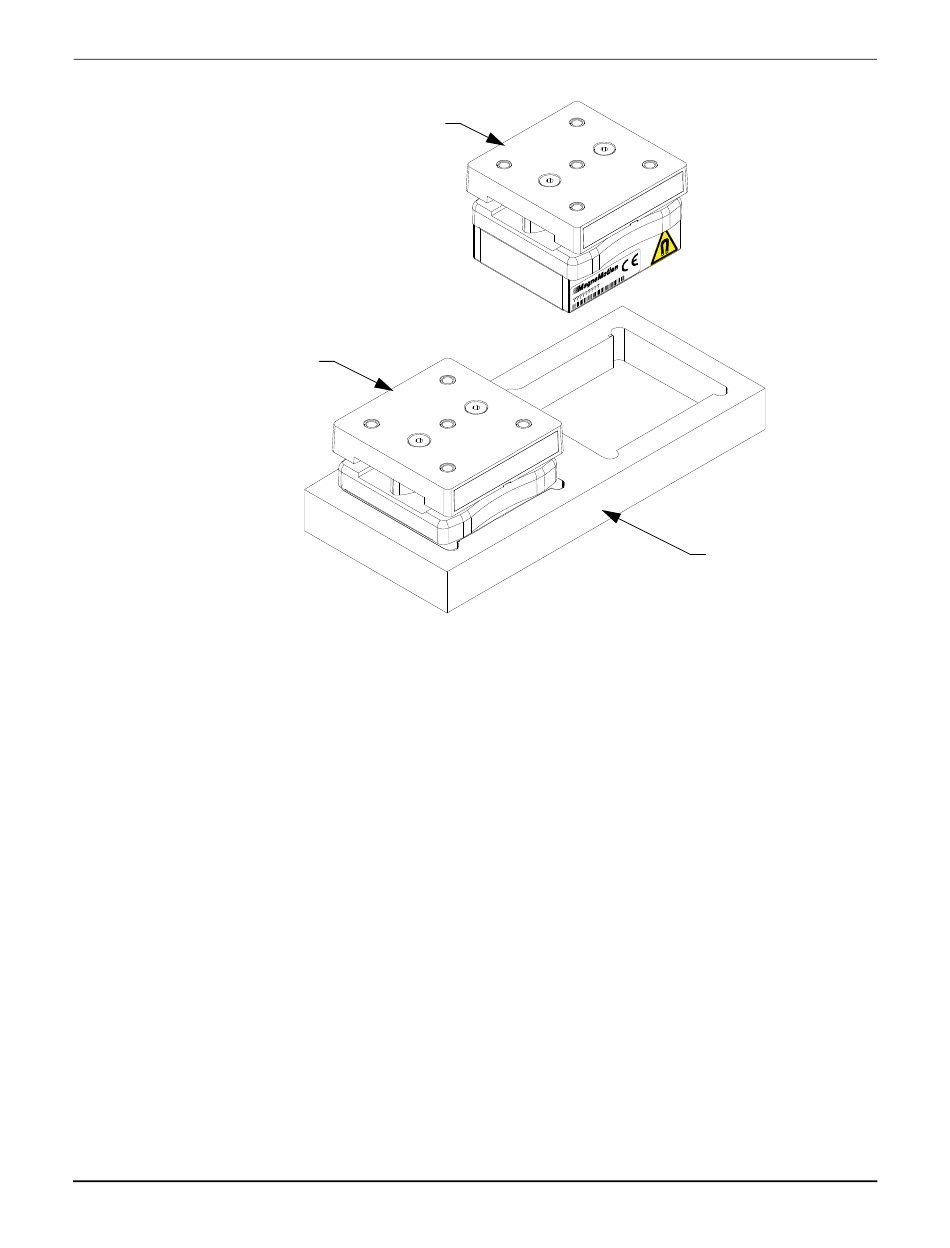

Figure 26: Place Second Glide Puck in Fixture
Figure 27.
