Required Tools and Equipment
• Open-end wrench, 13 mm, thin.
• Socket wrench, 13 mm.
• Torque wrench (0.9–26 N•m [8–230 in•lb] range) with the following socket:
• 13 mm Hex.
• Loctite 290, Thread locker, Wicking Grade, Green.
Replace Concentric Bearings
Figure 47 shows a dual array vehicle, however the same process is used for single array vehi-
cles.
Top Nut
(2X)
Washer
(2X)
Bearing Nut
(2X)
Concentric
Bearing
(2X)

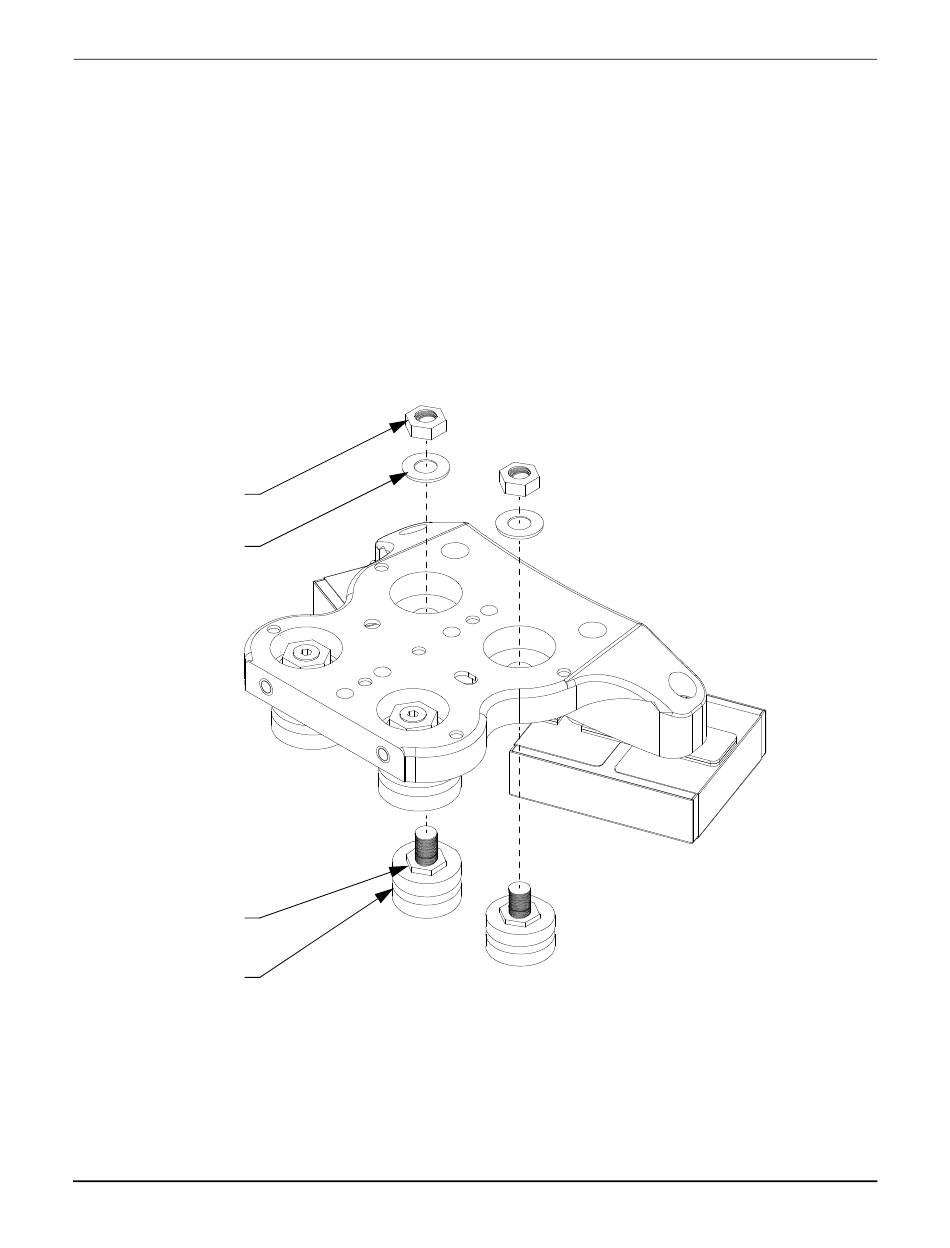

Figure 47: Precision Rail Vehicle Concentric Bearings Disassembly/Assembly
1. Stop all motion on the path where the vehicle is located.
2. Remove the vehicle from the precision rail (see
page 104).
