Maintenance
Repair
Replace Pins on Precision Locator Arms
The pins used to locate the pallet can be removed and replaced if they become damaged or
worn due to extended use.
Required Tools and Equipment
• 200-2298-00 – Pin, Spherical Contact, Precision Locator (2X)
• Isopropyl Alcohol.
• Torque wrench with the following bits:
• 000-0772-04 – Pinning Locator, Installation Tool, ML-PL
• 2 mm Hex Wrench.
Procedure
Locator Arm
Spherical Contact Pin
128
(2X)
(2X)

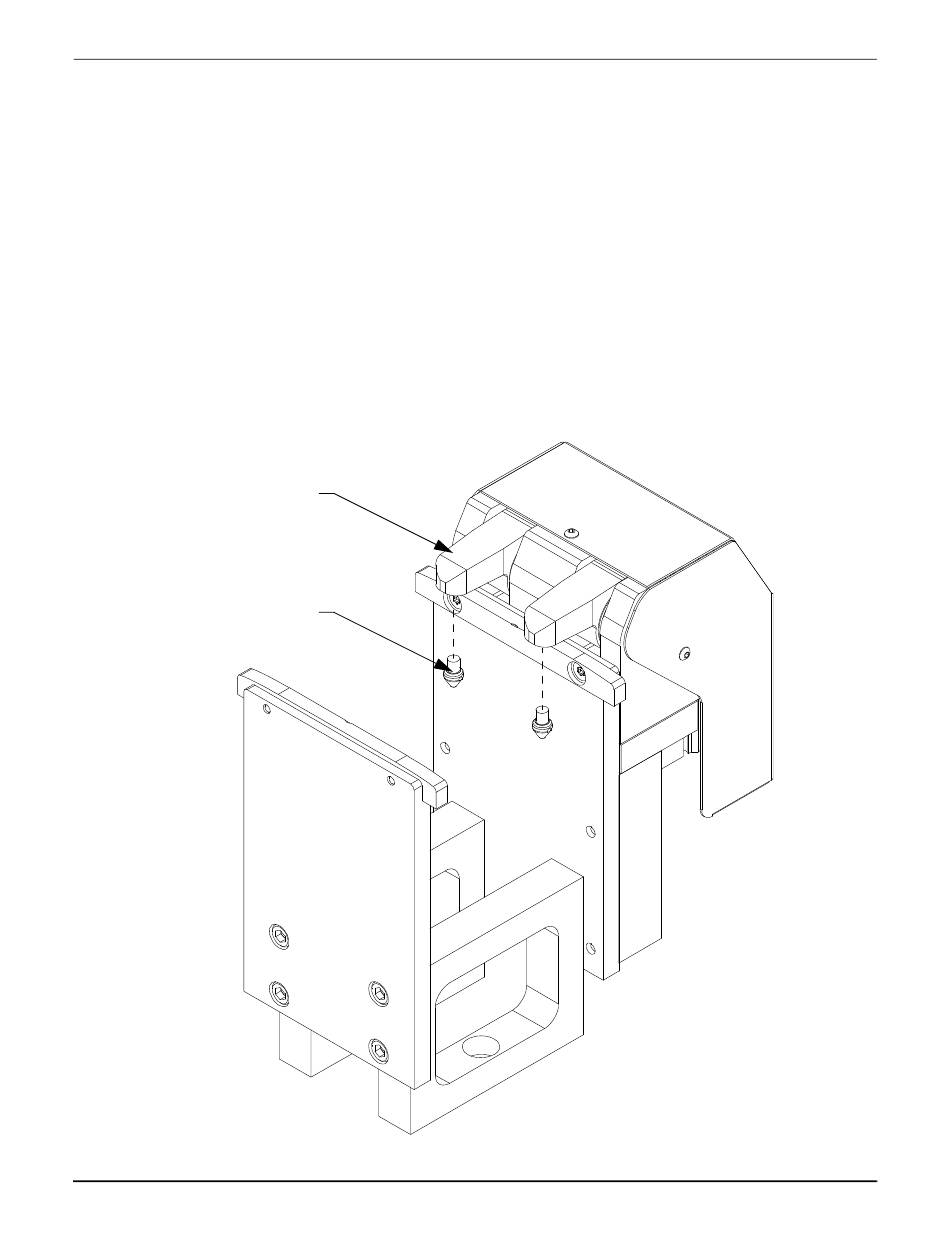

Figure 52: Replace Pins on Precision Locator Arms
