7

Operating the modules

7.1

Installation

Attention

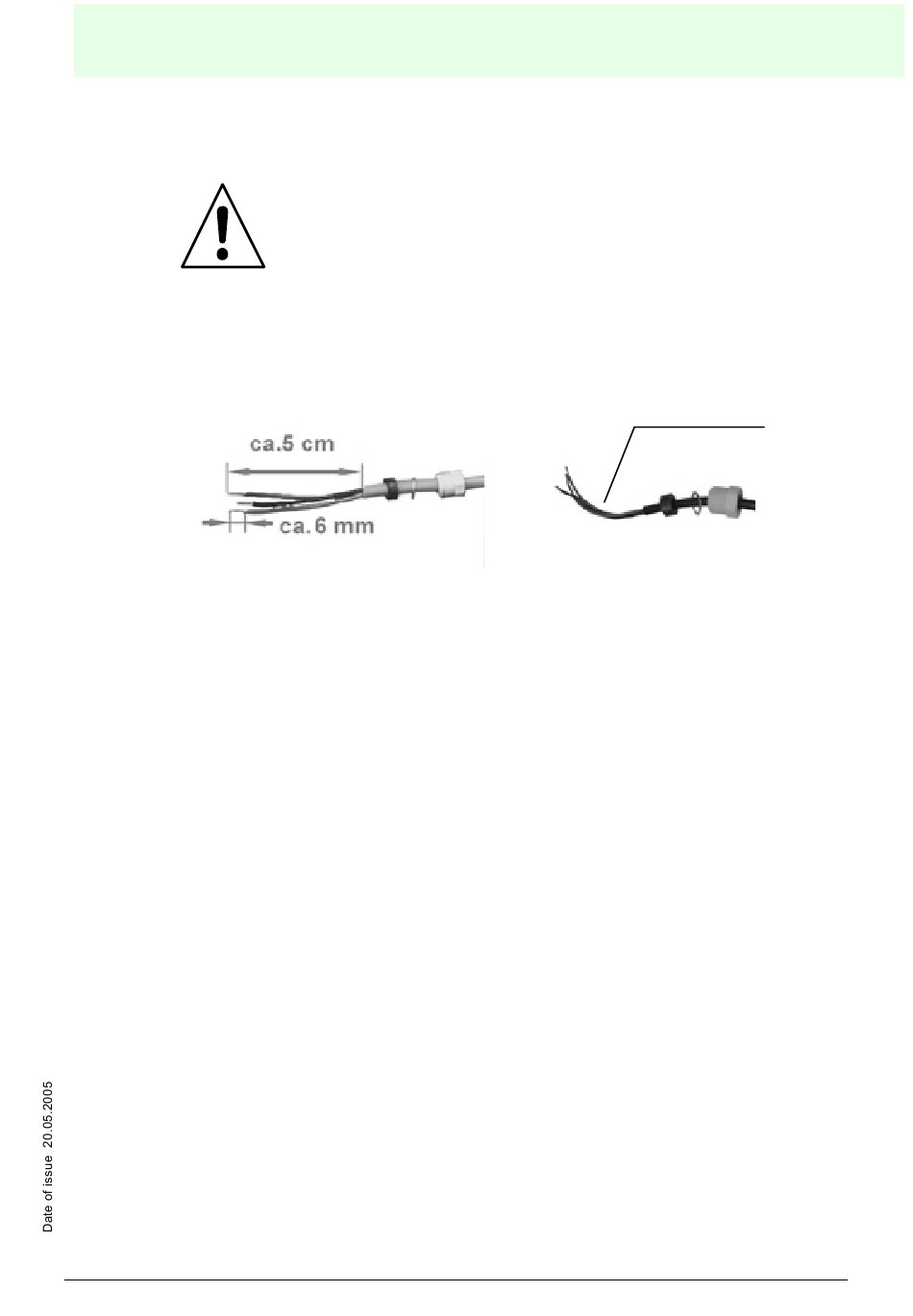

Put the screw fittings on the sensor/actuator cable.
Connect the den insulated sensor/actuator cable in sequence
3, 4, 2, 1.
7.2

Addressing of the modules

The addressing of the AS-Interface slave is performed with the aid of a
manual addressing device or with an AS-Interface master. When using
the manual addressing device, the AS-Interface slave is simply plugged
into this device and then the adress can be set. Addresses from 1 to 31
can be assigned. The state as supplied is address 0.
7.3

Operation of the AS-Interface safety input modules

The safety function of the slave is also determined by the monitor. The
corresponding documentation must be observed.
Subject to reasonable modifications due to technical advances.
Pepperl+Fuchs Group • Tel.: Germany +49 621 776-0 • USA +1 330 4253555 • Singapore +65 67799091 • Internet http://www.pepperl-fuchs.com
In order to achieve IP67 the housing must be screwed with
the lower section in a way that it lies evenly on the
supporting points on the lower section.
VAA-2E-G4-SN
Operating the modules
Cabel bended
