- Page 1 FACTORY AUTOMATION MANUAL VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Original Operating Instructions SAFETY AT WORK...
- Page 2 VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 With regard to the supply of products, the current issue of the following document is ap- plicable: The General Terms of Delivery for Products and Services of the Electrical Indus- try, published by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the...
-
Page 3: Table Of Contents
VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Introduction................. 5 Content of this Document ..............5 Manufacturer ..................5 Target Group, Personnel..............5 Symbols Used ..................6 Product Description ..............7 Intended Use ..................7 2.1.1 Non-Secure Outputs ................7 AS-Interface Safety at Work VAA-2E2A-KE1-S/E2 and VAA-2E2A- KE1P-S/E2..................... - Page 4 VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Appendix A................18 Application Examples ................18 Category 2...................18 Category 3...................18 Category 4...................21 Appendix B................24 Summary of the Requirements for Categories in Accordance with EN 954-1/ISO 13849-1 ........24 Certificates ..................25 Probability of Failure on Demand Calculation .........25 Transfer Time of the Safety-Relevant Information ......25...
-
Page 5: Introduction
VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Introduction Introduction Content of this Document This document contains information required to use the product in the relevant phases of the product life cycle. This may include information on the following: Product identification Delivery, transport, and storage Mounting and installation... -
Page 6: Symbols Used
VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Introduction Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid property damage. -
Page 7: Product Description

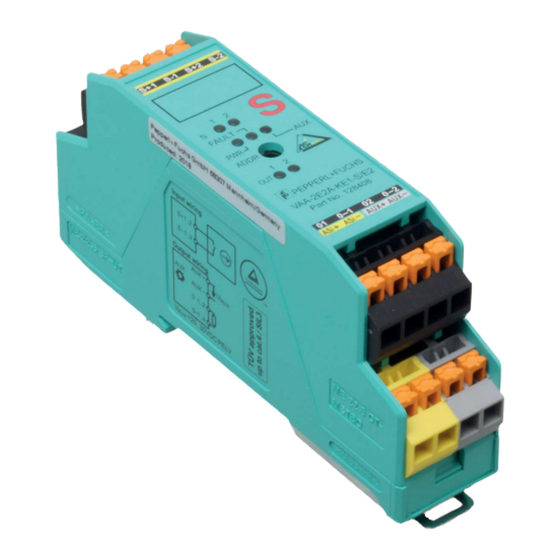

VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Product Description Product Description Intended Use When used as intended, the AS-Interface safety module allows the operation of sensor- controlled personal protective equipment up to category 4 and PL e as per ISO 13849 or up to SIL 3 as per EN/IEC 61508 and EN/IEC 62061 in combination with an appropriately programmed AS-Interface safety monitor. -
Page 8: Peripheral Requirements
VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Product Description If single-channel force-guided mechanical switches are connected, the module can be upgraded to Performance Level c in accordance with EN ISO 13849-1 if wired appropriately and if the switch is selected accordingly. If a dual-channel force-guided mechanical switch is connected, the module can be upgraded to Performance Level e in accordance with EN ISO 13849-1 if wired appropriately and if the switch is selected accordingly. -
Page 9: Interfaces And Connections
VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Product Description Safety related inputs Designation Description Mechanical switch 1+ Mechanical switch 1- Mechanical switch 2+ Mechanical switch 2- Outputs Designation Description Output 1+ Output 1- Output 2+ Output 2- Supply Designation Description ASi+ AS-Interface + ASi- AS-Interface -... -
Page 10: Inputs
VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Product Description 2.5.2 Inputs General The switches are connected to removable terminals. One or more mechanical switches can be connected in series per channel. Short circuit jumper Figure 2.2 = 2 mechanical switches (or one two-channel switch) = 1 mechanical switch If only one single-channel switch is to be used, input 1 should be used in this case. - Page 11 VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Product Description AS-i Chip 24 V PELV AS-Interface OUT1 ≥ 1 Figure 2.3 Output modes Modes and logic table of the outputs The modes are selected by the Master with parameter bit P0: S1 S2 DO0 DO1 OUT1 OUT2...
-
Page 12: Commissioning
2. Check the package contents against your order and the shipping documents for completeness and accuracy. Should you have any questions, direct them to Pepperl+Fuchs. 3. Retain the original packaging in case the device is to be stored or shipped again at a later date. -
Page 13: Operating Mode
VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Commissioning Performing a Function Test 1. Activate the safety function by interrupting the input. This can be done by actuating a con- nected mechanical switch or on the cable. 2. Check whether the safety monitor detects the interruption without issuing a fault message. -
Page 14: Maintenance And Repair
VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Maintenance and Repair Maintenance and Repair Maintenance and repair Regular function tests may be necessary, depending on the safety category. -
Page 15: Technical Data
VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Technical Data Technical Data 50.5 22.5 48.5 Figure 5.1 General Data Slave type Safety slave UL file number E223772 Functional Safety Data Safety Integrity Level (SIL) SIL 3 Performance Level (PL) PL e MTTF 200 a Indicators/Operating Elements FAULT LED Fault indication;... - Page 16 VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Technical Data Input Number/type 2 safety-related inputs for mechanical contacts, monitored for crossed circuits: 2 single-channel contacts: up to category 2/PL c in accordance with ISO 13849-1 or 1 dual-channel contact: up to category 4/PL e in accordance with ISO 13849-1 Cable length must not exceed 300 m per input.
- Page 17 VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Technical Data Standard Conformity Insulation coordination EN 50178:1998 Electromagnetic EN 61000-6-2:2005, EN 61000-4-5:2005 1 kV asymmetrical, compatibility criterion B, EN 61000-6-4:2007 Degree of protection EN 60529:2000 Fieldbus standard EN 62026-2:2013 Electrical safety EN 50178:1998 IEC 60204-1:2007 Emitted interference...
- Page 18 VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Appendix A Appendix A Application Examples Note! The examples listed here correspond to our understanding of the categories in accordance with ISO 13849-1 and should not be regarded as binding. Category 2 The safety function(s) must be tested at appropriate intervals of time by the machine control system.
- Page 19 VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Appendix A Example 2: If a dangerous failure (short circuit) of the switches cannot be excluded, these switches must be duplicated and connected in series. Channel 1 Channel 2 Figure 6.3 Example 3: If a short circuit in the cabling across the switches cannot be excluded, both channels are needed to achieve a category 3 safety function.
-
Page 20: Category 2
VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Appendix A Example 3: Dual-channel, dependent Dual-channel, force-guided Danger! The function block "Dual-channel, independent" must not be used in example 3. Category 4 The occurrence of a fault and an accumulation of faults must not lead to the loss of the safety function. - Page 21 VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Appendix A Example 2: If a dangerous failure (short circuit) of the switch cannot be excluded, two dependent mechanical switches must be used for each channel. To detect a dangerous accumulation of faults, the safety function must be tested. The test intervals must be adapted to the application.
-
Page 22: Summary Of The Requirements For Categories In Accordance With En 954-1/Iso 13849-1
VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Appendix B Appendix B Summary of the Requirements for Categories in Accordance with EN 954-1/ISO 13849-1 Essential principle to achieve Category Summary of the requirement System behavior safety The safety-related parts of machine If a fault occurs, it can lead... - Page 23 VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Appendix B Essential principle to achieve Category Summary of the requirement System behavior safety The requirements of B must be The occurrence of a fault Via the fulfilled and principles that are proven structure can lead to the loss of...
-
Page 24: Certificates
VAA-2E2A-KE1-S/E2, VAA-2E2A-KE1P-S/E2 Appendix B Certificates Approvals in accordance with EN/IEC 61508 and EN/IEC 62061. Probability of Failure on Demand Calculation To calculate the probability of dangerous failure on demand (PFD) of a safety-related function, the PFD values for all components used within this function must be taken into consideration. In the case of dual-channel applications, the AS-Interface safe input module does not significantly contribute to the PFD or PFH (probability of dangerous failure per hour) of the overall system. - Page 25 Twinsburg, Ohio 44087 · USA Tel. +1 330 4253555 E-mail: sales@us.pepperl-fuchs.com Asia Pacific Headquarters Pepperl+Fuchs Pte Ltd. Company Registration No. 199003130E Singapore 139942 Tel. +65 67799091 E-mail: sales@sg.pepperl-fuchs.com www.pepperl-fuchs.com Subject to modifications 130863 / DOCT-0168E Copyright PEPPERL+FUCHS • Printed in Germany 04/2019...
