Displays
I1
I2
FAULT
PWR
Note
Subject to reasonable modifications due to technical advances.
Pepperl+Fuchs Group • Tel.: Germany +49 621 776-0 • USA +1 330 4253555 • Singapore +65 67799091 • Internet http://www.pepperl-fuchs.com

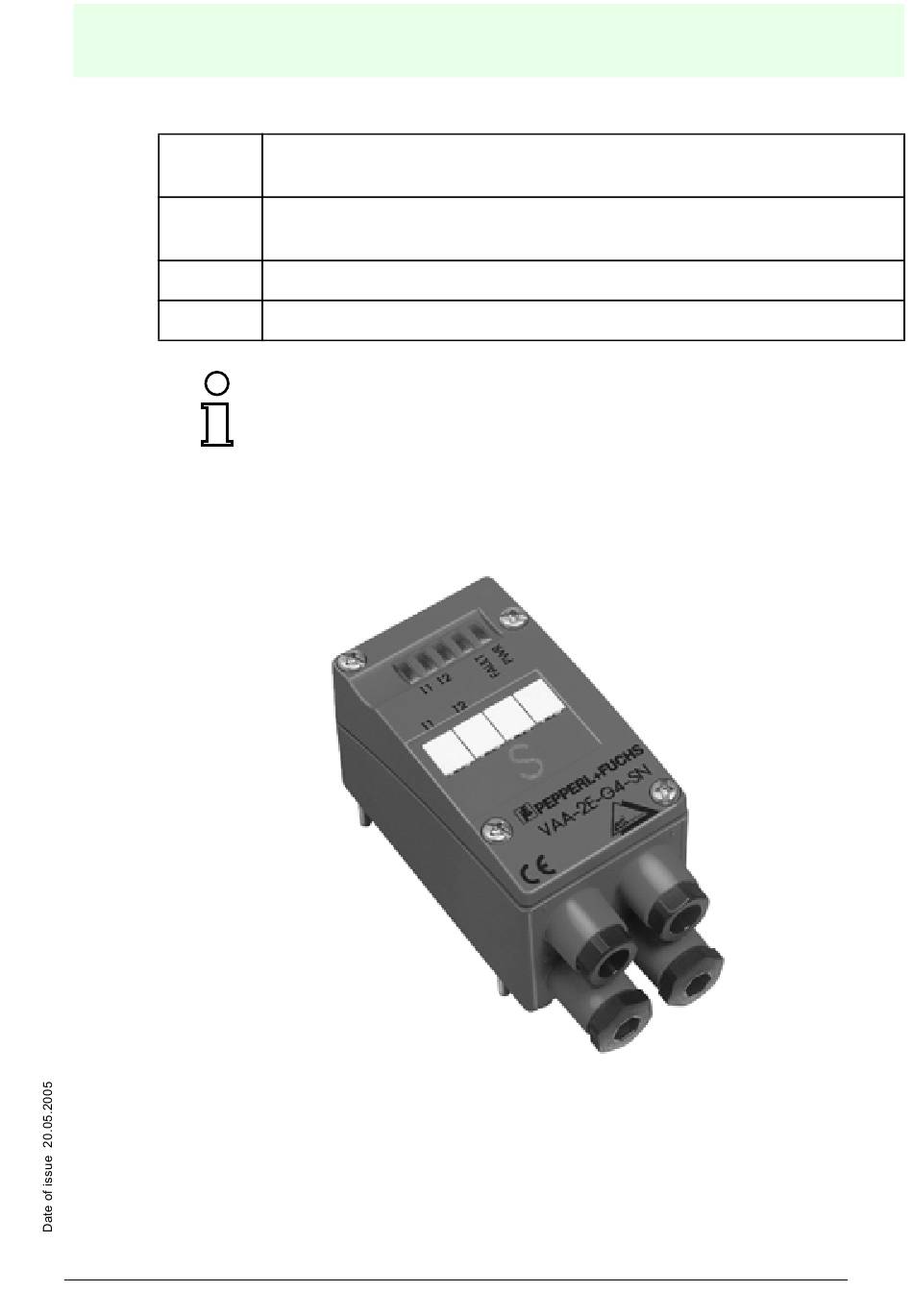

Connections, displays and control elements
Yellow LED, switching state of input channel 1 (independent of the sensor
technology)
Yellow LED, switching state of input channel 2 (independent of the sensor
technology)
Red LED, AS-Interface communication error
Green LED, AS-Interface power
The yellow LEDs I1 and I2 indicate the status of the
dynamic safety code, which is forwarded on to the safety
motor. Since the frequency of the safety code decreases
with the number of AS-Interface slaves that are connected,
the LEDs may flicker noticeably. This is a normal operating
state.
