General information
Information regarding the activation of the connected sensors (for
example with Emergency Stop activated, SN proximity switch muted,
code transfer is interrupted) is transferred as follows:
:
Activated input channel
1
2
1 and 2
None
Code words 0000, XX00 and 00XX cause the safety monitor to bring the
system to a safe state (for example in Emergency Stop) without reporting
a malfunction. If a bit of a code word deviates from the target code word,
the safety monitor switches the system into the safe state and indicates a
malfunction in the slave.
An input circuit consists of two dynamically controlled comparators that
affect 2 of the 4 data inputs of the AS-Interface interface component. One
input for SN/S1N proximity switches and one input for mechanical position
switches each are switched logically in series.

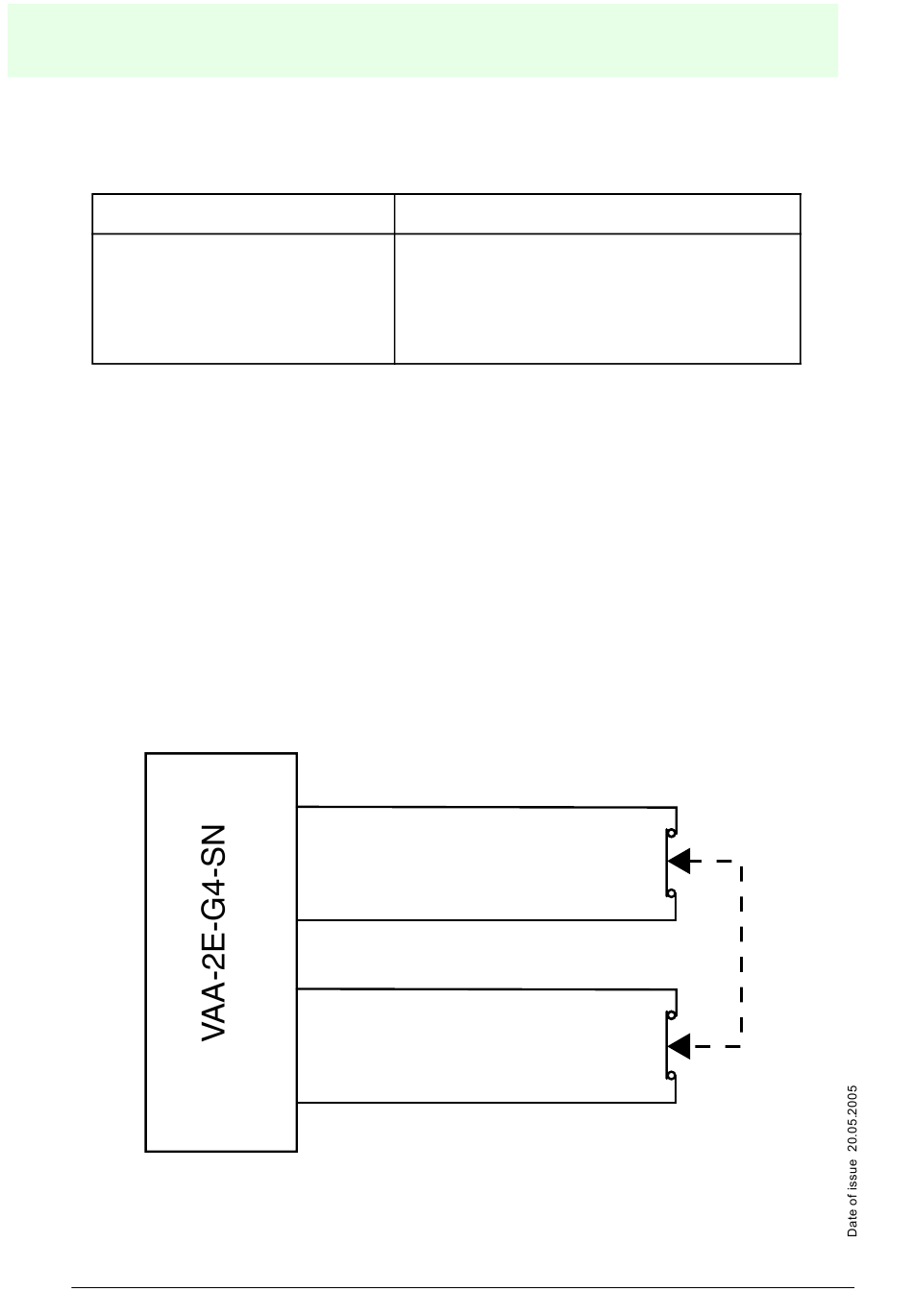

Example: An Emergency Stop with two separate circuits (Fault detection
behaviour according to Category 4) assigns both module channels.
