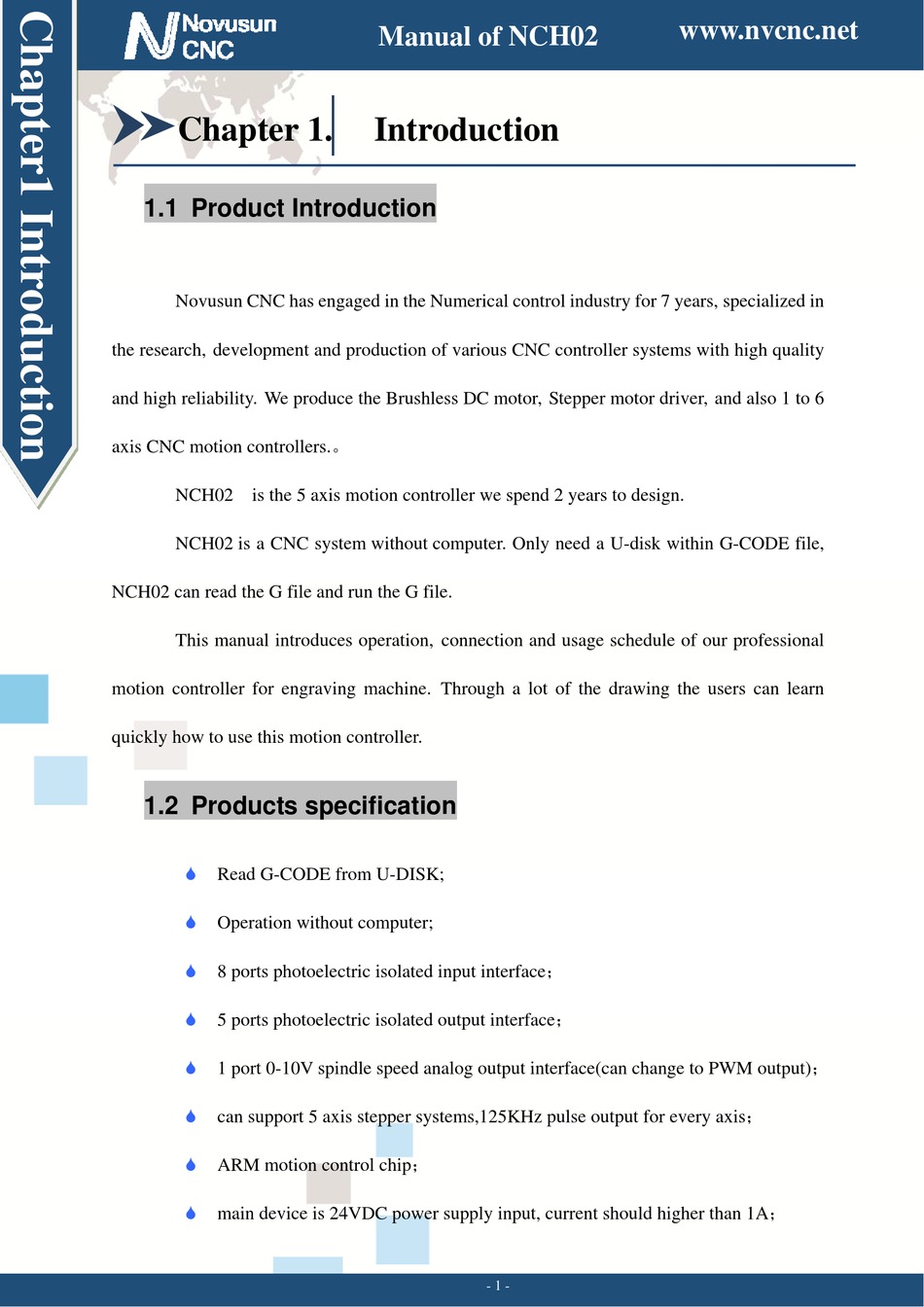

Chapter 1.

1.1 Product Introduction

Novusun CNC has engaged in the Numerical control industry for 7 years, specialized in
the research, development and production of various CNC controller systems with high quality
and high reliability. We produce the Brushless DC motor, Stepper motor driver, and also 1 to 6
axis CNC motion controllers.。
NCH02 is the 5 axis motion controller we spend 2 years to design.
NCH02 is a CNC system without computer. Only need a U-disk within G-CODE file,
NCH02 can read the G file and run the G file.
This manual introduces operation, connection and usage schedule of our professional
motion controller for engraving machine. Through a lot of the drawing the users can learn
quickly how to use this motion controller.

1.2 Products specification


Read G-CODE from U-DISK;

Operation without computer;

8 ports photoelectric isolated input interface；

5 ports photoelectric isolated output interface；

1 port 0-10V spindle speed analog output interface(can change to PWM output)；

can support 5 axis stepper systems,125KHz pulse output for every axis；

ARM motion control chip；

main device is 24VDC power supply input, current should higher than 1A；
