16. Repeat steps 4 through 14 for each speaker being installed.
17. Attach the speaker assembly to the back can enclosure.
a.
Connect the speaker wires from the back can enclosure to the speaker assembly.

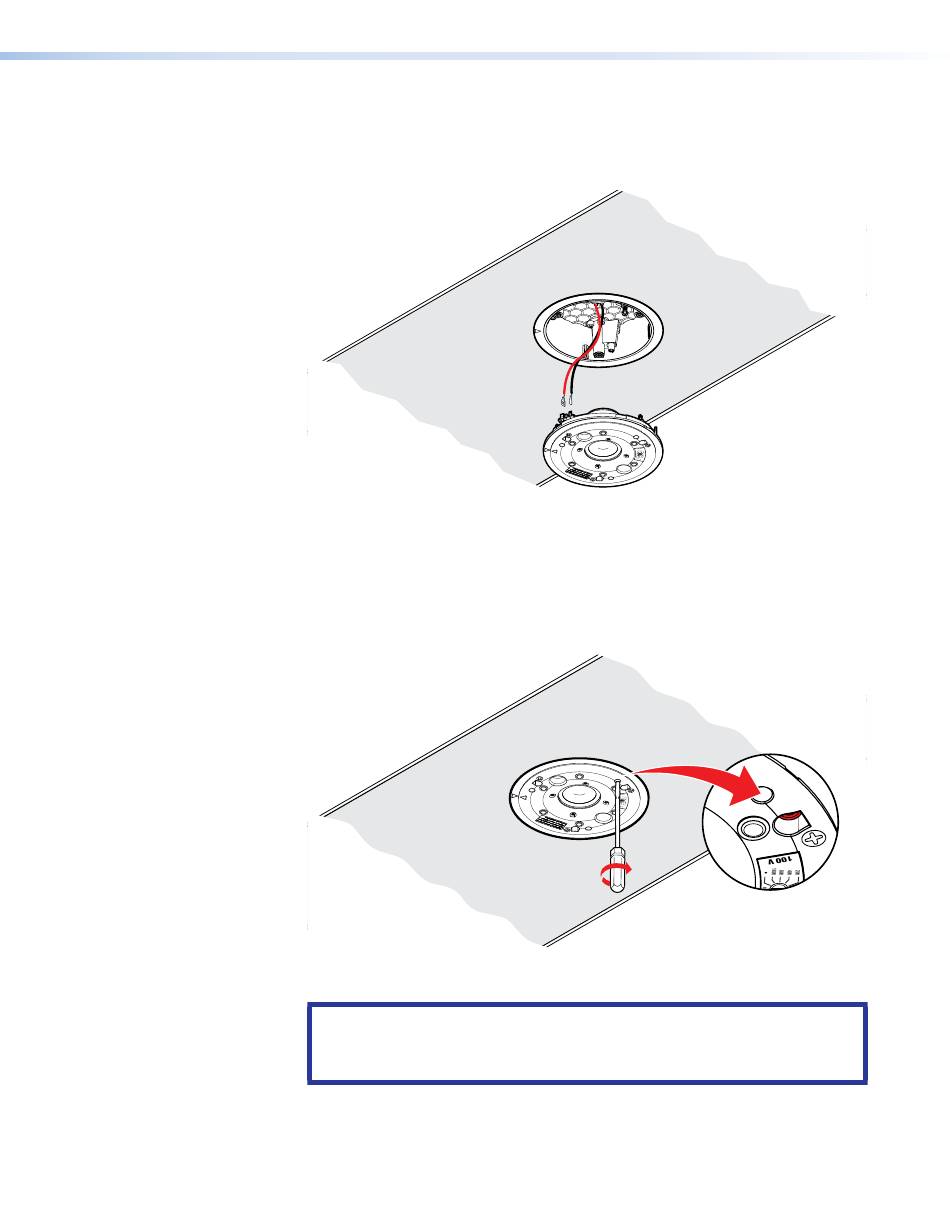

Figure 29. Connecting Speaker Wires to the Speaker Assembly
b. Rotate the speaker assembly so that the white arrows on the back can enclosure
and the speaker assembly are aligned with each other and insert the speaker into
the back can.
c. Using a flat head screwdriver, tighten the three screws that attach the speaker
assembly to the back can.
Figure 30. Screwing the Speaker Assembly to the Back Can
ATTENTION:
•
To avoid damaging the speaker, do not overtighten the three screws.
• Pour éviter d'endommager l'enceinte, ne serrez pas trop les trois vis.
