2. Separate the speaker assembly from the back can — Carefully separate the
speaker assembly from the back can, as shown below.
NOTE: Disconnect the speaker wires from the speaker assembly before completely
separating the speaker assembly from the back can.

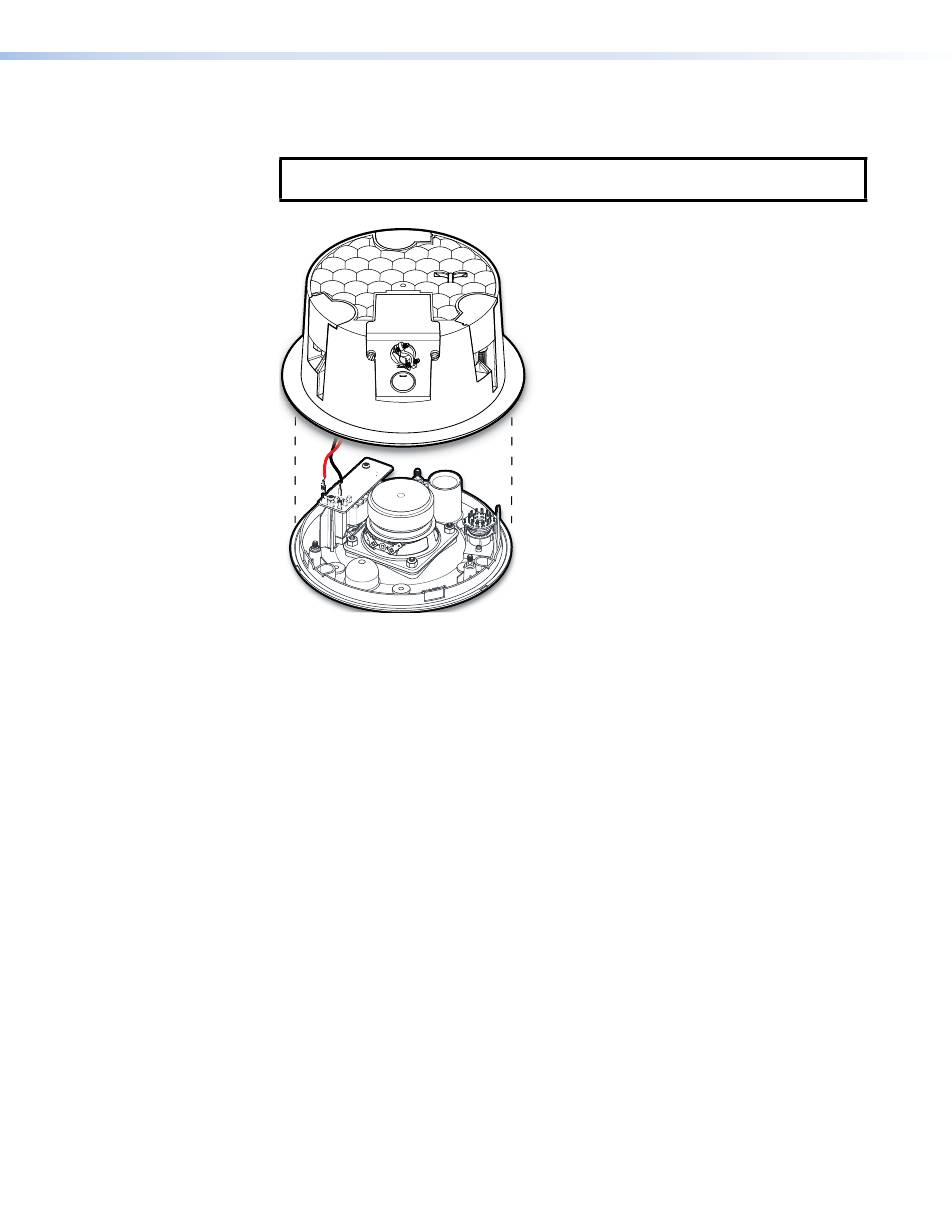

Figure 16. Separating the Speaker Assembly from the Back Can
3. Repeat steps 1 and 2 for each speaker in the system and distribute the
components to the appropriate installers.
4. Disconnect power
—
5. Verify the space where the system will be installed — Ensure that there is sufficient
clearance above the ceiling tile for the unit to be installed.
6. Cut a hole for the speaker — Use the provided cutout template to outline the hole to
be cut in the ceiling tile as described below.
a. Remove the ceiling tile.
b. To find the center of the tile, use a tape measure to measure the space between
two opposite corners, and mark the half-way point.
c.
Position the center hole of the cutout template directly over the center of the tile
that you marked in step 6b.
d. Using the provided cutout template, trace a circle around the cutout template.
e. Cut out the circle traced on the ceiling tile.
f. Replace the tile in the ceiling.
Power down all attached devices before proceeding.
