SIMPLEX 4100 EWIS
Page 7
INSTALLATION MANUAL

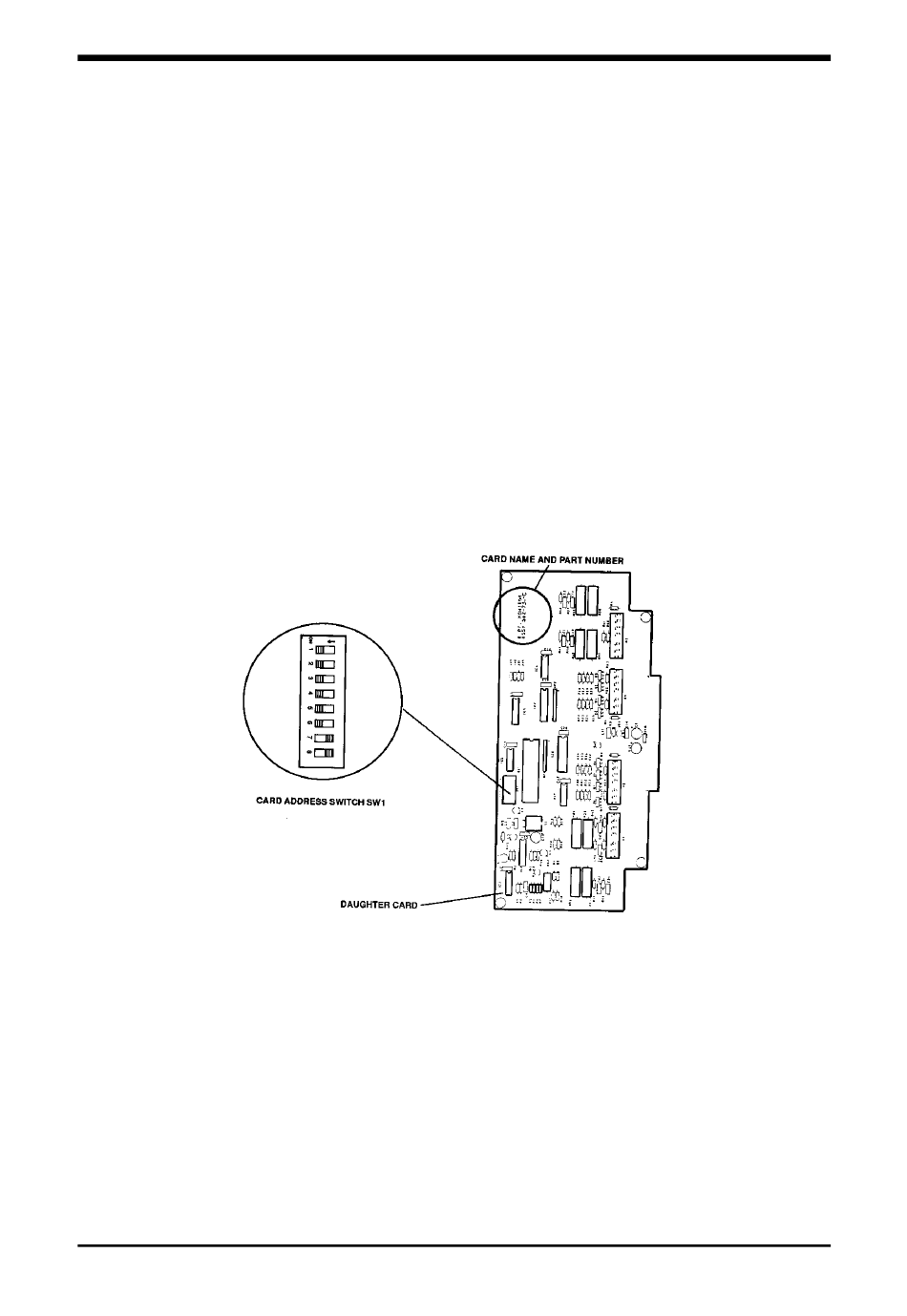

Figure 5 Location of Address Switch SW1 on a Typical 4100 Daughter Card
7. Make certain that all cables and wiring harness are connected in original locations
as shipped from the factory.
• Refer to Simplex Field Wiring Diagram (Part No. 841-731).
Document No.: 4100-M011
March 1998
Issue 1.0
