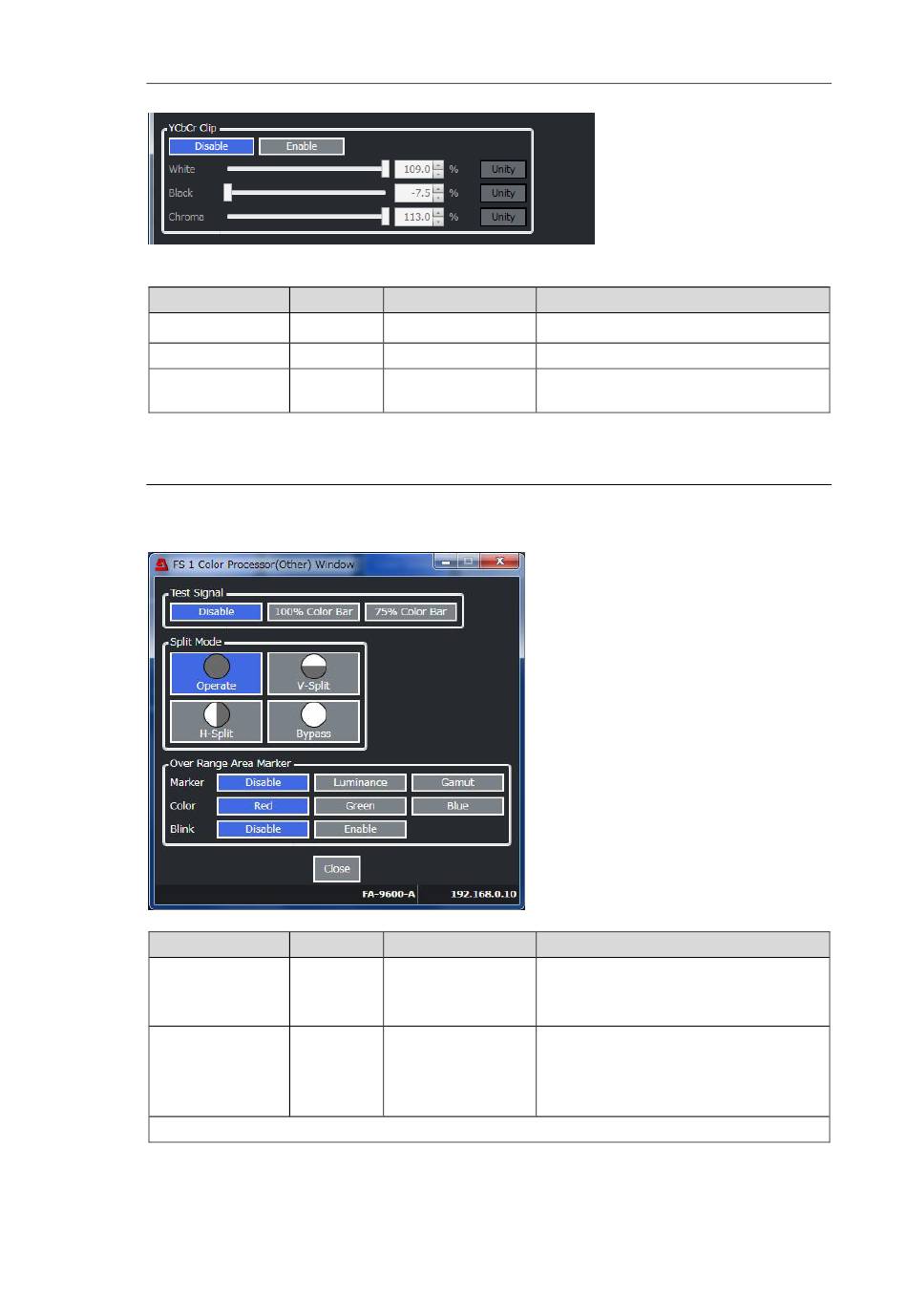

11-2-5-7. YCbCr Clip

Click Color Processor 1 or 2 in the Video Block and select YCbCr Clip to display the menu.
Use the Disable / Enable button to enable / disable YCbCr CLIP.
If enabled, the following parameters are available.
Item Default
White 109.0%
Black -7.5%
Chroma 113.0%

11-2-5-8. Other

Click Color Processor 1 or Color Processor 2 in the Video Block and select Other to display
the window as shown below.
Item Default
Test Signal Disable
Split Mode Operate
The following settings require FA-96AHDR or AHDR2.
Setting
50.0 to 109.0% Sets the upper Y signal limit.
-7.5 to 50.0% Sets the lower Y signal limit.
Sets the upper and lower CbCr signal
50.0 to 113.0%
limits.
Setting
Disable
100% Color Bar Outputs the selected test signal.
75% Color Bar
Operate
V-Split
Selects the output image display
method.
H-Split
Bypass
135
