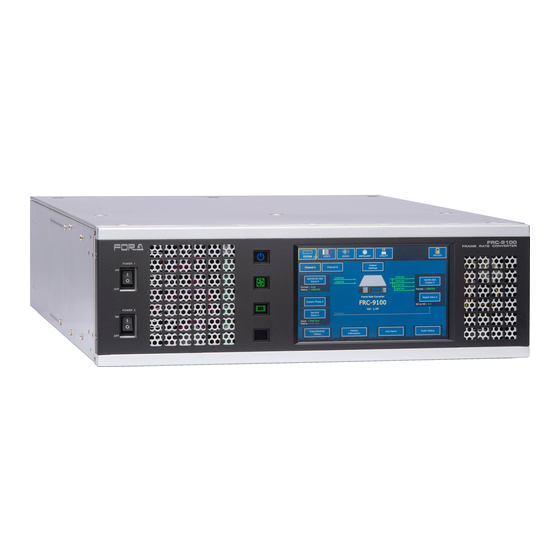

FOR-A FRC-9100 Operation Manual

Frame rate converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION
MANUAL
FRC-9100
Frame Rate Converter
FRC-912C
FRC-914K
FRC-90DA
FRC-90DM
rd
3
Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRC-9100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FOR-A FRC-9100

Summary of Contents for FOR-A FRC-9100

  • Page 1 OPERATION MANUAL FRC-9100 Frame Rate Converter FRC-912C FRC-914K FRC-90DA FRC-90DM Edition...
  • Page 2 Edition Revision History Edit. Rev. Date Description Section/Page 2019/05/27 First edition 2020/07/30 Added SNMP monitoring. Changed Front Panel Auto Reboot description. 8-7-5 Changed option names (FRC-912C, FRC-914K) 2021/02/02 Changed audio delay settings 6-5-1-14 to 16 8-4-7 Throughout Supported 12G-SDI.
  • Page 3 Precautions Important Safety Warnings [Power] Operate unit only at the specified supply voltage. Caution Disconnect the power cord via the power plug only. Do not pull on the cable portion. Do not place or drop heavy or sharp-edged objects on the power cord. A damaged cord can cause fire or electrical shock hazards.
  • Page 4 [Circuitry Access] Do not remove covers, panels, casing, or access the circuitry with power applied to the unit. Turn the power off and disconnect the power cord prior to removal. Internal servicing / adjustment of unit should only be performed by qualified personnel. Do not touch any parts / circuitry with a high heat factor.
  • Page 5 Upon Receipt FRC-9100 units and their accessories are fully inspected and adjusted prior to shipment. Check your received items against the packing lists below. Check to ensure no damage has occurred during shipment. If damage has occurred, or items are missing, inform your supplier immediately.

  • Page 6: Table Of Contents

    3-5. Conversions from 4K to HD (with FRC-914K) ................17 4. Operation ............................18 5. System Requirements ........................18 6. Web Browser Control (SD/HD to HD Mode) ..................19 6-1. Connection between Web Browser and FRC-9100 ..............19 6-2. STATUS Page [Web] ........................19 6-2-1. [STATUS - General] ......................19 6-2-2. [STATUS - Video] ......................20 6-2-3.
  • Page 7 6-8-5. Get List ..........................66 6-8-6. Trap List ..........................68 7. Web Browser Control (Other modes than SD/HD to HD) ................69 7-1. Connection between Web Browser and FRC-9100 ..............69 7-2. STATUS Page [Web] ........................69 7-3. SYSTEM Page [Web] ........................69 7-4. VIDEO Page [Web] ........................72 7-5.
  • Page 8 8-2-3-4. System Phase ......................79 8-2-3-5. Genlock Input ......................80 8-2-3-6. Video Genlock Status ....................80 8-2-3-7. Version Information ....................80 8-2-3-8. Unit Alarm ........................81 8-2-3-9. Audio Status .......................81 8-3. VIDEO Menu [Panel] .........................82 8-3-1. Conversion Mode .......................82 8-3-2. Conversion Settings ......................83 8-3-3. Extension Settings ......................83 8-3-4.

  • Page 9: Prior To Starting

    The FRC-9100 uses motion compensation processing by motion vectors to convert field frequencies and enables conversion between different 12G/3G/HD frame rates, as well as up conversion from SD to 3G/HD. The FRC-9100 is ideal for converting the frame rate prior to transmitting at international sporting events, for example.

  • Page 10: Supported Formats

    1-3. Supported Formats Output 2160p/ 1080p/ 1080i/ 720p/ 59.94, 50, 30, 60, 59.94, 50, 30, 29.97, 25, 24, 29.97, 25, 24, 60, 59.94, 50 60, 59.94, 50 23.98 (*1) 23.98 2160p/ 59.94, 50, 30, ✓ ✓ ✓ ✓ 29.97, 25, 24, 23.98 (*1) 1080p/ 60, 59.94, 50, 30,...

  • Page 11: Panel Descriptions

    Description Switch used to turn POWER 1 ON / OFF. Power Unit 1 switch The FRC-9100 will start at around a minute. Switch used to turn POWER 2 ON / OFF. Power Unit 2 switch The FRC-9100 will start at around a minute.

  • Page 12: Rear Panel

    2-2. Rear Panel (10) A REF IN 9/10 11/12 13/14 15/16 A IN META DATA A OUT 9/10 11/12 13/14 15/16 AC1 00-240 V 50/60 Hz IN 9/10 11/12 13/14 15/16 9/10 11/12 13/14 15/16 B IN B OUT B REF IN FRC-90DA AC1 00-240 V 50/60 Hz IN OU T1...
  • Page 13 (10) FRC-90DA (Option) The top row provides digital audio input/output for Channel A (1st frame rate converter). The bottom row provides digital audio input/output for Channel B (2nd frame rate converter). See Sec. 6-3 “SYSTEM Page [Web]” and Sec. 6-5. “AUDIO Page [Web” for more details. 9/10 11/12 13/14...

  • Page 14: Connections

    FRC-9100 factory default network settings IP Address: 192.168.0.10 Subnet mask: 255.255.255.0 Default gateway: 0:0:0:0 See Sec. 6-8. “NETWORK Page [Web]” or Sec. 8-6-4. “NETWORK Menu” to change FRC-9100 network settings. 3-2. 3G/HD/SD-SDI 2-Channel Conversions (with FRC-912C) AC1 00-240 V 50/60 Hz IN...

  • Page 15: Conversions Between 4K Signals (With Frc-914K)

    Settings” for details.) Signals are not input or output via unselected terminals. ◆ If Output Terminal settings are changed, save settings and reboot the FRC-9100 to apply settings. There are 3 ways to reboot the FRC-9100 as shown below. ...

  • Page 16: Conversions From Hd To 4K (With Frc-914K)

    Settings” for details.) Signals are not input or output via unselected terminals. ◆ If Output Terminal settings are changed, save settings and reboot the FRC-9100 to apply settings. There are 3 ways to reboot the FRC-9100 as shown below. ...

  • Page 17: Conversions From 4K To Hd (With Frc-914K)

    Settings” for details.) Signals are not input or output via unselected terminals. ◆ If Output Terminal settings are changed, save settings and reboot the FRC-9100 to apply settings. There are 3 ways to reboot the FRC-9100 as shown below. ...

  • Page 18: Operation

    4. Operation There are two ways to operate FRC-9100, one is via web browser on a computer and another is through the FRC-9100 front touch panel control. See Sec. 6 “Web Browser Control (SD/HD to HD Mode)” and Sec. 7 “Web Browser Control (Other Modes than SD/HD to HD)” for web browser control, and Sec. 8 “Front Touch Panel Operation”...

  • Page 19: Web Browser Control (Sd/Hd To Hd Mode)

    Start the web browser on the computer and connect with 192.168.0.10. FRC-9100 settings are shown on the web browser. To change FRC-9100 network settings, refer to Sec. 6-8 “NETWORK Page [Web]” or Sec. 8-6-4. “NETWORK Menu” for details. When connection with FRC-9100 is established, Status of Main window opens.

  • Page 20: Status - Video]

    6-2-2. [STATUS - Video] Selecting Video in the STATUS tab opens a web page as shown below. ◆ Input Video Status Input video format. Converter input and channels are displayed under Assign. ◆ Genlock Status Genlock signal format. Converter reference and channels are displayed under Assign. ◆...

  • Page 21: Status - Emb. Audio Out]

    6-2-4. [STATUS - Emb. Audio OUT] Selecting Emb. Audio OUT in the STATUS tab opens the window as shown below. ◆ SDI OUT 1 to SDI OUT 4 Audio Status is displayed Embedded audio status on the SDI OUT 1 to SDI OUT 4 streams. Output assignments and signal information is displayed under Assign.

  • Page 22: Status - Aes In/Out] (Frc-90Da)

    6-2-6. [STATUS - AES IN/OUT] (FRC-90DA) Selecting AES IN/OUT in the STATUS tab opens the window as shown below. ◆ AES IN A/B Audio Status Displays the DIGITAL AUDIO IN A/B input audio status. ◆ AES OUT A/B Audio Status Displays the DIGITAL AUDIO OUT A/B output audio status.

  • Page 23: Status - Version]

    6-2-8. [STATUS - Version] ◆ FRC-9100 Version information FRC-9100 version details...

  • Page 24: System Page [Web]

    6-3. SYSTEM Page [Web] FRC-9100 basic operation settings are configured in the SYSTEM tab. Selecting Channel A displays the 1st channel frame rate converter setting page. Selecting Channel B displays the 2nd channel frame rate converter setting page. To use Channel B, install an FRC-912C option and set SD/HD to HD Dual Channel in the [SYSTEM - General - Output Settings] menu.
  • Page 25 1080/50i 720/60p 720/59.94p 720/50p 525/59.94i 625/50i 1080/60p-A 1080/59.94p-A 1080/50p-A 1080/60p-B 1080/59.94p-B 1080/50p-B 1080/30p 1080/29.97p Output Format 1080/25p Selects an output signal format. (*2) 1080/24p 1080/23.98p 1080/60i 1080/59.94i 1080/50i 720/60p 720/59.94p 720/50p Sets the synchronous mode. Free Run: Synchronizes to an internally generated signal.

  • Page 26: Channel B (System)

    ◆ Aspect Ratio Settings Select the aspect ratio for Channel A output images when converting SD to HD. Click Change to open a window for changing settings. Setting range Menu Description (Highlighted: Default) Selects the output image aspect ratio in the Aspect Zoom (14:9) pull-down menu.
  • Page 27 Setting range Menu Description (Highlighted: Default) 3G/HD/SD-SDI Input Selects Input Terminal. Terminal 12G-SDI 3G/HD-SDI Output Selects Output Terminal. Terminal 12G-SDI ◆ General Settings Setting Range Menu Descriptions (Highlighted: Default) SD/HD to HD 4K to 4K Process Mode Selects a processing mode. HD to 4K 4K to HD Selects whether to use only Ch A or Ch A and...

  • Page 28: Video Page [Web]

    6-4. VIDEO Page [Web] Sets the video conversion mode. Selecting Channel A displays the 1st channel frame rate converter setting page. Selecting Channel B: displays the 2nd channel frame rate converter setting page. Channel B is selectable when the FRC-912C option is installed and SD/HD to HD Dual Channel is selected in the [SYSTEM - General - General Settings] menu.
  • Page 29 The following parameters are available if Conversion Mode is set to Motion Comp. When a movie with drastic changes in movement is input, select conversion mode. Auto is the setting that maximize the performance of FRC-9100. Try to select Linear or Pull Down/FS, if the final image sometimes looks broken. Auto Auto: Performs optimal motion-compensated conversion.

  • Page 30: Extension Settings

    6-4-1-2. Extension Settings Click Change in the Extension Settings area to open the window as shown below. Setting Range Menu Descriptions (Highlighted: Default) Off: No cut detection. Normal: Detects cut transitions or rapid image Cut Detect changes and provides a smooth and Normal continuous transition during conversion.

  • Page 31: Text Area 1-4 Settings

    Setting Range Menu Descriptions (Highlighted: Default) Selects whether to mask with black outside the Effective Area. Disable Mask Disable: Outside region is unmasked. Enable Enable: Outside region is masked. Specifies horizontal / vertical effective area of video signal (see figure below). Outside Start H effective area will not be corrected during a End H...

  • Page 32: Video - Channel B]

    (Start H, Start V) Text1 Area (End H, End V) Output screen Default value HD 1080 Setting range signals Text Area 1 Text Area 2 Text Area 3 Text Area 4 Start H 0-1918 1620 1620 End H 2-1920 1820 1820 Start V 1-1079...

  • Page 33: Audio Page [Web]

    6-5. AUDIO Page [Web] Select Channel A in the AUDIO tab to open a web page as shown below. Selecting a light blue box ( ) opens a corresponding setting window. Grey boxes ( ) are optional settings, and turn to light blue if an option is installed. ◆...

  • Page 34: Audio - Channel A]

    6-5-1. [AUDIO - Channel A] Open each setting window by clicking the corresponding box on the AUDIO page. Set items to change referring to tables and click Close. 6-5-1-1. SDI SRC Settings Click SDI A in the SRC block to open a window as shown below. Setting Range Menu Descriptions...

  • Page 35: Aes Polarity Settings

    Setting Range Menu Descriptions (Highlighted: Default) Sets the polarity of audio channels that are de-embedded from the SDI input. Normal Ch. 1 to 16 Normal: Does not reverse polarity. Invert Invert: Reverses polarity. 6-5-1-4. AES Polarity Settings Click AES A in the Polarity block to open a window as shown below. See Sec.

  • Page 36: Down Mix Settings

    6-5-1-6. Down Mix Settings Click Down Mix A to open a window as shown below. Down-mixed audio can be generated from input sources. The generated audio can be assigned to output channels as Down Mix L/R. Setting Range Menu Descriptions (Highlighted: Default) Stereo Mode...

  • Page 37: Mono Sum 1-8 Settings

    6-5-1-7. Mono Sum 1-8 Settings Select Mono Sum A to open a window as shown below. Up to 8 channels of mono-summed audio can be generated from input sources. The generated audio can be assigned to output channels as Mono Out1-8. Menu Setting Range Descriptions...

  • Page 38: Mapping Sdi Settings

    6-5-1-8. Mapping SDI Settings Click SDI A in the Mapping block to open a window as shown below. Select audio channels being embedded onto SDI output. Menu Setting Range Descriptions SDI A Ch. 1 to 16 AES A Ch. 1 to 16(*1) DEC A-1 Ch.1 to 8(*2) DEC A-1 Down Mix L/R(*2) DEC A-2 Ch.1 to 8(*3)

  • Page 39: Mapping Dolby Encoder Settings

    6-5-1-10. Mapping Dolby Encoder Settings Click ENC A-1 or ENC A-2 in the Mapping block to open a window as shown below. Select 8-channel sources for Dolby E audio. The Dolby E audio generated in ENC A-1 can be assigned to audio output channels as ENC A-1. Menu Setting Range Descriptions...

  • Page 40: Gain Sdi Settings

    6-5-1-11. Gain SDI Settings Sets the SDI embedded audio output gain. Click SDI A in the Gain block to open a window as shown below. Menu Setting Range Descriptions Sets output gain offset to all the SDI audio -20.0 to 20.0dB channels.

  • Page 41: Gain Aes Settings

    6-5-1-12. Gain AES Settings Sets the digital audio output gain. Click AES A in the Gain block to open a window as shown below. See the previous section for details on setting. 6-5-1-13. Gain Dolby Encoder Settings Sets the gain of audio source channels that are encoded to Dolby E. Click ENC A-1 or ENC A-2 in the Gain block to open a window as shown below.

  • Page 42: Delay Sdi Settings

    Clicking the Unity button changes setting amount to default.  Internal delay values in FRC-9100 calls up values according to input/ output signal format as shown in the table below. Values are shown under “Convert.” (in msec) Output Format 2160 (*1) 59.94p...
  • Page 43 Output Format 2160 (*1) 59.94p 29.97p 23.98p 29.97p 1080 23.98p 59.94i 59.94p 525/60 625/50 Output Format 1080 59.94p 29.97p 23.98p 59.94p 2160 29.97p (*1) 23.98p 59.94p 29.97p 1080 23.98p 59.94i 59.94p 525/60 625/50...

  • Page 44: Delay Aes Settings

    Output Format 1080 720p 59.94i 59.94p 59.94p 2160 29.97p (*1) 23.98p 59.94p 29.97p 1080 23.98p 59.94i 59.94p 525/60 625/50 (*1) FRC-914K required 6-5-1-15. Delay AES Settings Sets the amount of digital audio output delay. Click AES A in the Delay block to open a window as shown below. See the previous section for details on setting.

  • Page 45: Delay Dolby Encoder Settings

    Click ENC A-1 or ENC A-2 in the Gain block to open a window as shown below. Delay value inside of FRC-9100 for ENC A-1 or ENC A-2 the “Convert” value is set to 5msec regardless of input/ output formats.

  • Page 46: Test Signal/Mute Settings

    6-5-1-18. Test Signal/Mute Settings Enables you to mute audio or output a test signal. To set SDI output, select SDI A in the column Test Signal/ Mute to open a setting window. To set AES output, select AES A in the column Test Signal/ Mute. To set the Dolby Encoder input source, select ENC A-1 or ENC A-2 in the column Test Signal/ Mute.

  • Page 47: Dolby Encoder Settings

    DEC A Out: Metadata received from the decoder. Selects which data is used if the metadata input to Encoder interrupts. Internal Reversion Internal: Uses the metadata stored in FRC-9100. Mode Last Used Last Used: Uses the metadata input to Encoder before interruption.

  • Page 48: External Metadata Output Settings

    Program Config Bit Depth Ch 1/2 Ch 3/4 Ch 5/6 Ch 7/8 2 x 2 + 4 x 1 1L / 1R 3C / 4C 5C / 6C 2L / 2R 2 + 6 x 1 1L / 1R 4C / 5C 6C / 7C 2C / 3C 8 x 1...

  • Page 49: Audio - General]

    6-5-3. [AUDIO - General] Select the General tab in the AUDIO page to open a web page as shown below. This page allows you to set detailed procedure for de-multiplexing audio channels from the SDI 1 stream. Open each setting window by clicking Change in each block. Set items to change referring to tables and click Close.

  • Page 50: Sdi In 2 Embedded Audio Demultiplex Settings

    6-5-3-2. SDI IN 2 Embedded Audio Demultiplex Settings Sets how to de-embed SDI IN 2 embedded audio and enables only in SD/HD to HD Dual Channel mode. Setting details are same as SDI IN 1 Embedded Audio Demultiplex Settings. Refer to Sec. 6-5-3-1 “SDI IN 1 Embedded Audio Demultiplex Settings” for details. 6-5-3-3.

  • Page 51: Ancillary Page [Web]

    6-6. ANCILLARY Page [Web] Sets the audio metadata and timecode in the SDI ancillary area. Selecting the Metadata tab displays the audio metadata setting page. Selecting the Timecode tab displays the timecode setting page. Selecting Channel A: displays the 1st channel frame rate converter setting page. Selecting Channel B: displays the 2nd channel frame rate converter setting page.

  • Page 52: Audio Metadata Multiplexer Settings

    6-6-1-2. Audio Metadata Multiplexer Settings Setting Range Menu Descriptions (Highlighted: Default) Disable Selects whether to embed audio metadata into Embedding the SDI stream. Enable Line 9 to 20 Embedding Line Selects the Dolby metadata line position. (Default: Line 9) No Association Selects the Dolby E channel pair, which is Ch.

  • Page 53: Ancillary - Timecode]

    6-6-2. [ANCILLARY – Timecode] Select the Timecode tab in ANCILLARY and select a Channel button to change settings. A web page as shown below opens. The current timecode settings of the selected channel are displayed on the page. Set items to change referring to tables and click Close. TCR: Timecode Reader, TCG: Timecode Generator, DF: Drop Frame 6-6-2-1.

  • Page 54: Tcg Output Settings

    Setting Range Menu (Default is Description highlighted) Reads embedded timecode according to input signal timecode DF setting. From Ancillary This setting is normally used. Reads timecode according to input format. If input format is 59.94Hz or 29.97Hz, reads embedded Drop Frame From Frequency timecode in DF.
  • Page 55 Menu Setting Range Description Sets the output timecode start time, count start time and stop Sync TCR time following the input timecode. TCG Mode (Default) See the next page for detailed settings. Starts output timecode counting when the input timecode coincides with the set time (TCG Trigger Time).

  • Page 56: Tc Time Settings

    6-6-2-4. TC Time Settings Allows you to set starting time to embed the input timecode and starting time of outputting timecode. Setting range is different for each format. See TCR Trigger Time and TCG Start Time Setting Range Tables for details. Setting Range Menu Description...

  • Page 57: Utility Page [Web]

    Select the UTILITY tab to open a web page as shown below. 6-7-1. Event Memory Settings FRC-9100 startup events can be set and FRC-9100 conditions can be saved in a built-in memory. There are two types of settings in event memory. One is “Last Setting” to save the latest settings and the other is “Default Settings”...

  • Page 58: Setting Not Saved In Event Memory

    Refer to Sec. 6-8. “NETWORK Page [Web]” for details. 6-7-3. System Reboot Click Reboot in the UTILITY page. Click OK in the dialog box below to reboot your FRC-9100. 6-7-4. Video Test Signal Settings Video test signals can be output from SDI OUT 1-4.

  • Page 59: Relay Bypass Settings

    6-7-5. Relay Bypass Settings 3G/HD/SD-SDI terminals of FRC-9100 have relay bypass function to connect input and output terminal. This function is used to check video signals when installing FRC-9100. Click Change to bypass output video test signals. To output test signals for each output terminal respectively, select Bypass in IN 1-OUT 1 to IN 4-OUT 4.

  • Page 60: Network Page [Web]

    6-8. NETWORK Page [Web] Select the NETWORK tab to open a web page as shown below. 6-8-1. Network Settings Ethernet IP Address, Subnet Mask and Default Gateway settings are displayed. Click Change to change Ethernet settings. A settings window opens. Change network settings, as necessary.

  • Page 61: Factory Shipment Network Settings

    IMPORTANT To apply network changes, restart the FRC-9100. To restart the FRC-9100, select Utility > System Reboot in the menu. (See Sec. 6-7-3. “System Reboot.”) 6-8-2. Factory Shipment Network Settings Factory shipment network settings are as follows. IP Address: 192.168.0.10 Subnet Mask: 255.255.255.0...

  • Page 62: Get / Set List

    Sets the SNMP Trap community (20 alphanumeric) name. Trap Community 2 IMPORTANT To apply SNMP changes, restart the FRC-9100. To restart the FRC-9100, select Utility > System Reboot in the menu. (See Sec. 6-7-3. “System Reboot.”) 6-8-4. Get / Set List Menu Parameter: Description TYPE OID: 1.3.6.1.4.1.20175.1.356.2(frc9100Setting)
  • Page 63 206: Sdi2160-59p-LevelB-SQD 210: Sdi2160-50p-LevelB-SQD 207: Sdi2160-59p-LevelB-2SI 211: Sdi2160-50p-LevelB-2SI 100: Sdi2160-30p-SQD 102: Sdi2160-29p-SQD 104: Sdi2160-25p-SQD 106: Sdi2160-24p-SQD 108: Sdi2160-23p-SQD HDtoHD, HDto4K mode 60: Sdi1080-60p-LevelA 62: Sdi1080-59p-LevelA 64: Sdi1080-50p-LevelA 61: Sdi1080-60p-LevelB 63: Sdi1080-59p-LevelB 65: Sdi1080-50p-LevelB 23: Sdi1080-30p 24: Sdi1080-29p 25: Sdi1080-25p 26: Sdi1080-24p 27: Sdi1080-23p 10: Sdi1080-60i 11: Sdi1080-59i...
  • Page 64 10: Sdi1080-60i 11: Sdi1080-59i 12: Sdi1080-50i 5: Sdi720-60p 6: Sdi720-59p 7: Sdi720-50p frc9100ChAGenlockSetting Ch A genlock setting INTEGER 0: Freerun 1: InputLock 10: Genlock1 11: Genlock2 frc9100ChAAspectRetioSetting Ch A aspect ratio setting. INTEGER Effective for SD signal input 0: 4:3 1: Zoom14:9 2: Zoom16:9 3: Squeeze...
  • Page 65 After saving, the parameter is automatically reset to “0.” frc9100Reboot 0: Idle (Normal state) INTEGER 1. Reboot (Reboot the device.) Sending 1 reboots FRC-9100. After rebooting (about 60 seconds later) the parameter is automatically reset to “0.”...

  • Page 66: Get List

    6-8-5. Get List Menu Parameter: Description TYPE OID: 1.3.6.1.4.1.20175.1.356.1(frc9100Status) frc9100Fan1Status FAN 1 status INTEGER 0: Normal 1: Failed frc9100Fan2Status FAN2 status INTEGER frc9100PS1Status Power Unit 1 status INTEGER frc9100PS2Status Power Unit 2 status INTEGER frc9100SlotAStatus Slot A status INTEGER frc9100SlotBStatus Slot B status INTEGER frc9100Temperature...
  • Page 67 6: Sdi720-59p 7: Sdi720-50p 1: Sdi525-60 2: Sdi625-50) frc9100ChAOutFormat Ch A output status INTEGER 251: Bypass 254: NotUsed 204: Sdi2160-59p-LevelA-SQD 208: Sdi2160-50p-LevelA-SQD 205: Sdi2160-59p-LevelA-2SI 209: Sdi2160-50p-LevelA-2SI 206: Sdi2160-59p-LevelB-SQD 210: Sdi2160-50p-LevelB-SQD 207: Sdi2160-59p-LevelB-2SI 211: Sdi2160-50p-LevelB-2SI 100: Sdi2160-30p-SQD 102: Sdi2160-29p-SQD 104: Sdi2160-25p-SQD 106: Sdi2160-24p-SQD 108: Sdi2160-23p-SQD 60: Sdi1080-60p-LevelA...

  • Page 68: Trap List

    6-8-6. Trap List Menu Trap report condition TYPE OID: 1.3.6.1.4.1.20175.1.356.0(frc9100Trap) frc9100Fan1AlarmTrap FAN1 alarm INTEGER frc9100Fan2AlarmTrap FAN2 alarm INTEGER frc9100PS1AlarmTrap Power Unit 1 alarm INTEGER frc9100PS2AlarmTrap Power Unit 2 alarm INTEGER frc9100SlotAAlarmTrap Slot A alarm INTEGER frc9100SlotBAlarmTrap Slot B alarm INTEGER frc9100TemperatureAlarmTrap Temperature alarm INTEGER...

  • Page 69: Web Browser Control (Other Modes Than Sd/Hd To Hd)

    (FRC-914K), Sec. 3-4. “Conversions from HD to 4K (FRC-914K)”and” Sec. 3-5. “Conversions from 4K to HD (FRC-914K)” respectively. 7-1. Connection between Web Browser and FRC-9100 Refer to Sec. 6-1. “Connection between Web Browser and FRC-9100” to connect the FRC-9100 to your PC through LAN. 7-2. STATUS Page [Web] See Sec.
  • Page 70 ◆ Selecting a Signal Format Click SYSTEM and the Channel A tab to open a web page. Click Change in the Format Settings block to open a setting window. Refer to the table below to set the input video format and genlock mode. Setting Range Menu Descriptions...
  • Page 71 Setting Range Menu Descriptions (Highlighted: Default) (In 4K to 4K or HD to 4K mode) 2160/59.94p-A SQD 2160/59.94p-A 2SI * 2160/59.94p-B SQD 2160/59.94p-B 2SI 2160/50p-A SQD 2160/50p-A 2SI * 2160/50p-B SQD 2160/50p-B 2SI 2160/30p SQD 2160/29.97p SQD 2160/25p SQD 2160/24p SQD 2160/23.98p SQD Selects an output signal format.

  • Page 72: Video Page [Web]

    7-4. VIDEO Page [Web] See Sec 6-4. “VIDEO Page [Web].” ◆ Effective Area Settings Click Change in the Effective Area Settings area in the VIDEO tab to set the Effective Area. Setting Range Menu Descriptions (Highlighted: Default) Selects whether to mask with black outside the Effective Area.

  • Page 73: Audio Page [Web]

    7-5. AUDIO Page [Web] See Sec. 6-5. “AUDIO Page [Web] for details. 7-6. ANCILLARY Page [Web] See Sec. 6-6. “ANCILLARY Page [Web] for details. 7-7. UTILITY Page [Web] See Sec. 6-7. “UTILITY Page [Web]” for details. 7-8. NETWORK Page [Web] See Sec.

  • Page 74: Front Touch Panel Operation

    8-2. SYSTEM Menu [Panel] Touch SYSTEM to open the SYSTEM menu screen as shown below, in which the current FRC-9100 current status is displayed. Channel A/B selection, Process Mode, input / output signal formats, aspect ratio and Genlock mode can be set here.

  • Page 75: General Settings

    8-2-2. General Settings The Output Settings button is displayed when an FRC-912C or FRC-914K option is installed. Touching the button opens a window as shown below. See General Settings in Sec. 6-3-3 “[SYSTEM - General]” for details on each setting. 12G-SDI is available with FRC-914K option SD/HD to HD Dual Ch.

  • Page 76: Hd/Sd-Sdi Input Format

    8-2-3-1. 3G/HD/SD-SDI Input Format ◆ SD/HD to HD Mode, HD to 4K Mode Touch 3G/HD/SD-SDI INPUT (1 in the SYSTEM diagram, see Sec. 8-2-3) to open a window as shown below. Refer to the table below to select an input signal format, then touch OK. Touch Cancel to cancel the change.
  • Page 77 ◆ 4K to 4K Mode, 4K to HD Mode Touch 4K UHD INPUT (1 in the SYSTEM diagram, see Sec. 8-2-3) to open a window as shown below. Refer to the table below to select an input signal format, then touch OK. Touch Cancel to cancel the change.

  • Page 78: Hd-Sdi Output Format

    8-2-3-2. 3G/HD-SDI Output Format ◆ SD/HD to HD Mode, 4K to HD Mode Touch 3G/HD-SDI OUTPUT (2 in the SYSTEM diagram, see Sec. 8-2-3) to open a window as shown below. Setting Range Menu Descriptions (Highlighted: Default) 1080p Resolution 1080i Selects the output signal resolution.

  • Page 79: Aspect Ratio

    Setting Range Menu Descriptions (Highlighted: Default) If 2160/59.94p or 2160/50p is selected under Level-A 3G-SDI Resolution/Frame Rate, select 3G-SDI Level A or B. Level Level-B Un-available when Input Terminal is 12G-SDI. Selects the 4K video division method. If 2160/30p, 2160/29.97p, 2160/25p, 2160/24p or Division 2160/23.98p is selected under Resolution/Frame Rate, set to SQD.

  • Page 80: Genlock Input

    Touch Video Genlock Status (6 in the SYSTEM diagram, see Sec. 8-2-3) to open a window as shown below. Verify the input/output signal and genlock status. 8-2-3-7. Version Information Touch Version Information (7 in the SYSTEM diagram, see Sec. 8-2-3) to open a window as shown below. Verify the various FRC-9100 various version information.

  • Page 81: Unit Alarm

    8-2-3-8. Unit Alarm Touch Unit Alarm (8 in the SYSTEM diagram, see Sec. 8-2-3) to open a window as shown below. Verify the unit’s power, fan and temperature status. Touch Close when confirmation is complete. 8-2-3-9. Audio Status Touch Audio Status (9 in the SYSTEM diagram, see Sec. 8-2-3) to open a window as shown below.

  • Page 82: Video Menu [Panel]

    8-3. VIDEO Menu [Panel] Touching VIDEO opens the VIDEO menu screen as shown below, in which current FRC-9100 status is displayed. Conversion Mode, Conversion Settings, Extension Settings and Effective Area can be set here. Channel A and Channel B buttons are enabled when the FRC-912C option is installed.

  • Page 83: Conversion Settings

    8-3-2. Conversion Settings Touch Conversion Settings (1 in the VIDEO menu, see Sec. 8-3) to open a screen as shown below. Touch a setting to change then OK. Touch Cancel to cancel the change See Sec. 6-4-1-1. “Conversion Settings” for details on settings.

  • Page 84: Text Area

    8-3-6. Text Area Touch Text Area 1-4 (5 in the VIDEO menu, see Sec. 8-3) to open a screen as shown below to set a text area. Touch Enable or Disable to turn on/off text areas. Use increment / decrement buttons (<<<, <<, <, >, >>, >>>) to adjust each item.

  • Page 85: Src

    8-4-1. SRC In the AUDIO menu, touch SDI A to set SDI input embedded audio settings. In the AUDIO menu, touch AES A to set AES digital input audio settings. See Sec. 6-5-1-1. “SDI SRC Settings” for details on settings. 8-4-2.

  • Page 86: Mono Sum

    ◆ Mix Level Sets each audio channel level for downmixing. Touch Close when settings are complete. ◆ Assign To select multi-channel sources used for L/R/C/Ls/Rs downmixing from input channels: (1) Select L, R, C, Ls or Rs under Assign. (2) Select an audio source group under Display to display its audio sources under Select. (3) Select an audio channel under Select.

  • Page 87: Mapping

    8-4-5. Mapping In the AUDIO menu, touch SDI A under Mapping to display the setting window. This menu allows you to assign audio sources to 16 audio channels to be embedded onto the SDI output stream. Down-mixed and Mono-summed audio channels and test and silence signals are also available.

  • Page 88: Delay

    8-4-7. Delay In the AUDIO menu, touch SDI A, AES A, ENC A-1 or ENC A-2 under Delay to adjust Delay. Adjustable range is from 5 to 1000 msec and minimum scale is 1 msec. (1) Select a channel from CH1 to CH16 or Master. (2) Use increment / decrement buttons (<<<, <<, <, >, >>, >>>) to change the delay value.

  • Page 89: Sdi Test Signal / Mute (Channel A)

    ◆ Audio Clock Touch Audio Clock of Category to select a reference for each audio group. See Sec. 6-5-1-17. “Embedded Audio Multiplex Settings” for details on settings. 8-4-9. SDI Test Signal / Mute (Channel A) In the AUDIO menu, touch SDI A, AES A, ENC A-1 or ENC A-2 in the Test Signal/Mute block to set test signal and mute settings.

  • Page 90: Dolby Encoder

    8-4-11. Dolby Encoder In the AUDIO menu, touch ENC A-1 or ENC A-2 under Encoder to set the Dolby E Encoder. See Sec. 6-5-1-20. “Dolby Encoder Settings” for details on settings. 8-4-12. External Metadata In the AUDIO menu, touch Metadata A Out Sel below Encoder to select the audio metadata to be output.
  • Page 91 ◆ Digital Audio Settings In the AUDIO General menu, touch Setting in the Digital Audio Settings to display the setting window, in which digital audio basic operation settings can be changed. See Sec. 6-5-3-3. Digital Audio Settings” for details on settings. ◆...

  • Page 92: Ancillary Menu [Panel]

    8-5. ANCILLARY Menu [Panel] Touch ANCILLARY to open a screen as shown below. Touch the Metadata button to open the Audio metadata setting page. Touch the Timecode button to open the timecode setting page. Channel A and Channel B buttons are enabled when the FRC-912C option is installed. Selecting Channel A sets the 1st channel frame rate converter.

  • Page 93: Metadata Demultiplex

    8-5-1-1. Metadata Demultiplex Select Channel A, Metadata and Demultiplex to display the setting window for Channel A, in which a channel pair that has audio metadata can be specified in the SDI IN1 stream. 8-5-1-2. Metadata Multiplex Select Channel A, Metadata and Multiplex to display the setting window for Channel A, in which audio metadata to be embedded onto SDI OUT 1 can be set.

  • Page 94: Tcr Input Settings

    8-5-2-1. TCR Input Settings Select Channel A, Timecode and TCR Input Select to display the setting window for Channel A. Select a timecode to read. 8-5-2-2. TCG Output Settings Select Channel A, Timecode and TCG Output Select to display the setting window for Channel A. Select a timecode to output and a drop frame setting.

  • Page 95: Utility Menu [Panel]

    Bypass and Network Settings can be performed. 8-6-1. Event Control The FRC-9100 allows you to specify the startup configuration, or save the last configuration using Event Memory. Last Setting, Event 1-4 and Default Settings of the FRC-9100 configuration can be stored in the Event Memory.

  • Page 96: Video Test Signal Settings

    Ramp signal for each output. To stop test signal output, select Off. 8-6-3. Relay Bypass Settings The FRC-9100 allows you to pass through input to output using relay bypass. This function is useful for checking video signals while installing the FRC-9100.

  • Page 97: Network Menu

    8-6-4. NETWORK Menu In the UTILITY menu, touch Settings in the Network Settings block to change the FRC-9100 network settings. LAN port IP Address, Subnet Mask and Default Gateway settings are displayed. To change network settings, press each number to display the touch panel keypad and change the number between 0 and 255.

  • Page 98: Dolby Metadata Configure Gui

    See Sec. 9-3. “Installing the Dolby Metadata Configure GUI” for details on how to install the software. The software provides the following functions:  Exporting Dolby metadata to FRC-9100 (The FRC-9100 saves sent values in Last Settings automatically. Same function as SAVE and LOAD in Event Control.) ...

  • Page 99: Downloading / Editing / Uploading Metadata

    (6) Click Set FRC-9000 Settings in the File menu. (7) Enter the FRC-9100 IP address and click OK. The currently loaded audio metadata set is sent from the computer to the FRC-9100. (8) When the file upload is successful, an [Upload Success] message appears.

  • Page 100: Copy Metadata Between Programs

    9-1-1. Copy Metadata between Programs Click Copy Program in the Edit menu to display the Copy Program dialog box. (1) Click to select a source program in the Source block. (2) Click to select a destination program in the Destination block. To select multiply programs at a time, click them while pressing the Ctrl key.

  • Page 101: Dolby Metadata

    9-2. Dolby Metadata Parameter Settings Default setting (Sets the Program Description text for * Description text SDI audio metadata. Up to 32 ASCII text characters.) Dialogue Level -31 to -1 dB -23 dB 1+1 (Dual Mono) 1/0 (Mono) 2/0 (Stereo) Channel Mode Complete Main Main Music &...
  • Page 102 Parameter Settings Default setting +3.0dB +1.5dB 0.0dB -1.5dB Lt/Rt Center Downmix Level -3.0dB -3.0dB -4.5dB -6.0dB -999dB -1.5dB -3.0dB Lt/Rt Surround Downmix Level -4.5dB -3.0dB -6.0dB -999dB +3.0dB +1.5dB 0.0dB -1.5dB Lo/Ro Center Downmix Level -3.0dB -3.0dB -4.5dB -6.0dB -999dB -1.5dB -3.0dB Lo/Ro Surround Downmix Level...

  • Page 103: Installing The Dolby Metadata Configure Gui

    9-3. Installing the Dolby Metadata Configure GUI (1) Open the FRC-9000 Metadata Config Tool folder in the supplied CD-ROM and double-click the Setup icon to start the installation wizard. (2) The following screen will appear. Click Next. (3) The following screen will appear. Read the Software License Agreement, check “I accept the terms in the license agreement”...
  • Page 104 (4) Select the installation target folder and click Next. (5) When the Install Shield Wizard opens, click Install. (6) When the installation is completed, the following screen will appear. Click Finish to close the wizard.

  • Page 105: Specifications And Dimensions

    10. Specifications and Dimensions 10-1. Specifications Video formats 2160p /59.94, 50 (12G-SDI, Quad Link 3G-SDI, Level-A/B, SQD/2SI) 2160p /30, 29.97, 25, 24, 23.98 (Quad Link HD-SDI, SQD) 1080p / 60, 59.94, 50 (Level-A/B) 1080p / 30, 29.97, 25, 24, 23.98 1080i / 60, 59.94, 50, 720p /60, 59.94, 50 525/59.94i, 625/50i Frame rate...

  • Page 106: External Dimensions

    566 VA at 240 V Dimensions 430(W)×537(D)×132(H) mm 480(W) (Including rack mount brackets) Weight FRC-9100: 20.5 kg FRC-90DA: 2.4 kg Consumables Power unit: Replace every 5 years (at room temperature) Cooling fan: Replace every 4 years (at room temperature) 10-2. External Dimensions (All dimensions in mm.)
  • Page 107 Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
  • Page 108 Tel: +1 352-371-1505 Fax: +1 714-894-5399 FOR-A Latin America and the Caribbean Miami Office Tel: +1 657-600-5759 FOR-A Latin America and the Caribbean Sao Paulo Office Tel: +55 (0)11-99913-3751 FOR-A Europe S.r.l. Via Volturno, 37, 20861 Brugherio MB, Italy Tel: +39 039-916-4811...
