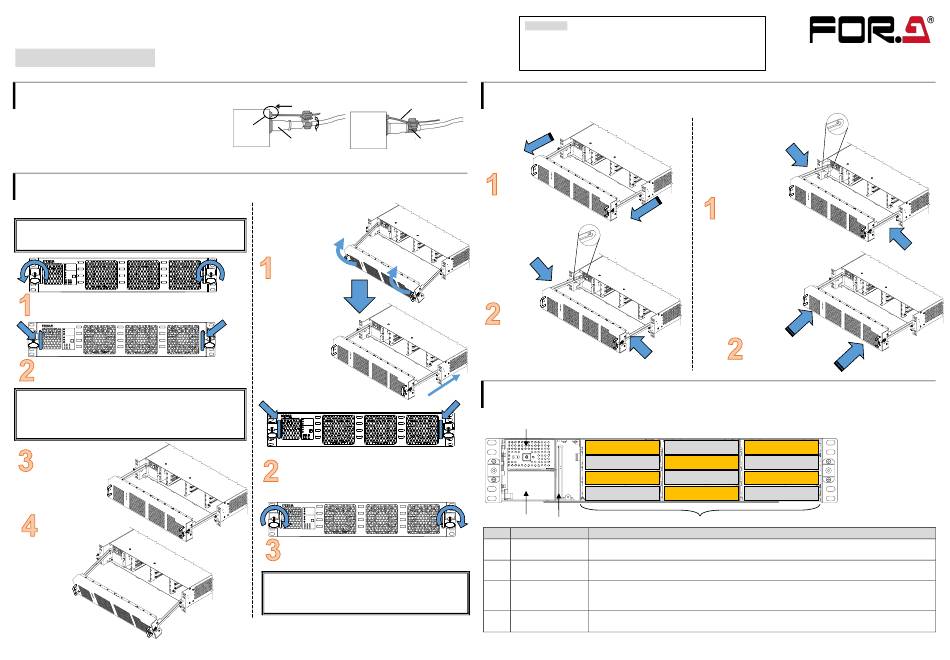

FOR-A USF-212BS Quick Setup Manual

USF-212BS
Quick Setup Guide
1. AC Cord Clamp Installation
1) Insert the anchor into the hole next to the AC inlet.
2) Plug in the AC cord.
3) Adjust the strap length to fit.
4) Wrap the AC cord clamp around the AC cord.
5) Gently pull on the AC cord to ensure it has been securely plugged in.
2. Opening / Closing the Front Panel
Opening the Front Panel
The front panel may be difficult to open or close if the USF frame
is placed on a desk, and may be damaged if it is forced to open.
Perform the following steps after setting the frame in a rack.
USF-2 12BS
UNIVERSAL S YSTEM FRAME
9 5 1
POWER ON
GENLOCK 1
10 6 2
GENLOCK 2
ALA RM
DC 1 BUZZER
OFF
DC 2
11 7 3
FAN
9 5 1
10 6 2
12 8 4
11 7 3
12 8 4
Loosen the two thumbscrews on the front panel by
turning them counterclockwise.
USF-2 12BS
UNIVERSAL S YSTEM FRAME 9 5 1
POWER ON
GENLOCK 1
GENLOCK 2 10 6 2
ALA RM
DC 1
BUZZER
OFF
DC 2 11 7 3
FAN
9 5 1
10 6 2
11 7 3 12 8 4
12 8 4
Pull out the front panel using the pull handles.
The fan stops while the front panel is open.
When the front panel is being opened, one short beep sounds
every 30 seconds to notify the user and after 5 minutes (default
setting), the short beep changes to normal alarm buzzer. When
performing installation or other modification while the power is on,
complete the procedure in a short period of time.
Pull out the front panel.
The front panel rails
can be tilted down.
USF212BS_SETUPGUIDE-E-1.DOCX
Closing the Front Panel
Grab both handles, tilt up
the front panel until it
aligned and push the front
panel back into the frame
body.
USF-2 12BS
UNIVERSAL S YSTEM FRAME 9 5 1
POWER ON
GENLOCK 1
GENLOCK 2 10 6 2
ALA RM
DC 1
BUZZER
OFF
DC 2 11 7 3
FAN
9 5 1
10 6 2
11 7 3 12 8 4
12 8 4
If the frame is powered on, the POWER LED lights green
and fans begin to work once the front panel is properly
installed. If the LED does not light up, grab both handles
and push the panel until it is tightly fitted into place.
USF-2 12BS
UNIVERSAL S YSTEM FRAME
9 5 1
POWER ON
GENLOCK 1
10 6 2
GENLOCK 2
ALA RM
DC 1 BUZZER
OFF
DC 2 11 7 3
FAN
9 5 1
10 6 2
11 7 3 12 8 4
12 8 4
Tighten two screws in both sides to secure the
front panel.
Twenty seconds after the front panel is installed, all LEDs
on the front panel light up.
If not, the front panel has not been installed properly. Re-
install the front panel.
Packing list
USF-212BS: 1
AC Cord: 1 set DVD-ROM: 1
Quick Setup Guide: 1 (This guide)
3. Detaching / Attaching the Front Panel
Detaching the Front Panel
Fully draw out the front
panel.
The front panel can be
detached by gently pushing
both rails inward.
4. Front Interior
The slot configuration as shown below is revealed when the front panel is removed.
(1)
SLOT9
SLOT10
SLOT11
SLOT12
(2) (3)
No. Slot Type
Dedicated power unit installed in this slot as standard.
(1) Power Supply 1 Slot
Power is supplied when the power supply switch is turned on.
Slot for redundant power supply USF-212PS. Redundant operation available when optional USF-
(2) Power Supply 2 Slot
212PS is installed. A blank panel will otherwise cover the slot.
Slot for network control card.
(3) Control Card Slot Enables SNMP monitoring through LAN ports on the rear panel and alarm output from the ALARM
connector and allows control over the all slot modules..
Dedicated USF module slots. (Front USF modules)
(4) USF Module Slots
For details on module operation, refer to the respective operation manuals.
Attaching the Front Panel
Gently push rails on both sides inward to
respectively fit the tab into the aperture of
the guide rail. Handle the front panel
carefully so as not to bend the rails.
Push the front panel straight
into the frame body.
SLOT5 SLOT1
SLOT6 SLOT2
SLOT7 SLOT3
SLOT8 SLOT4
(4)
Description
