NTI ENVIROMUX Series Installation Manual page 4
Digital input/output expander
Hide thumbs
Also See for ENVIROMUX Series:
- Installation and operation manual (150 pages) ,
- Manual (59 pages) ,
- Instruction manual (19 pages)
Advertisement
Reversible Mounting Assembly

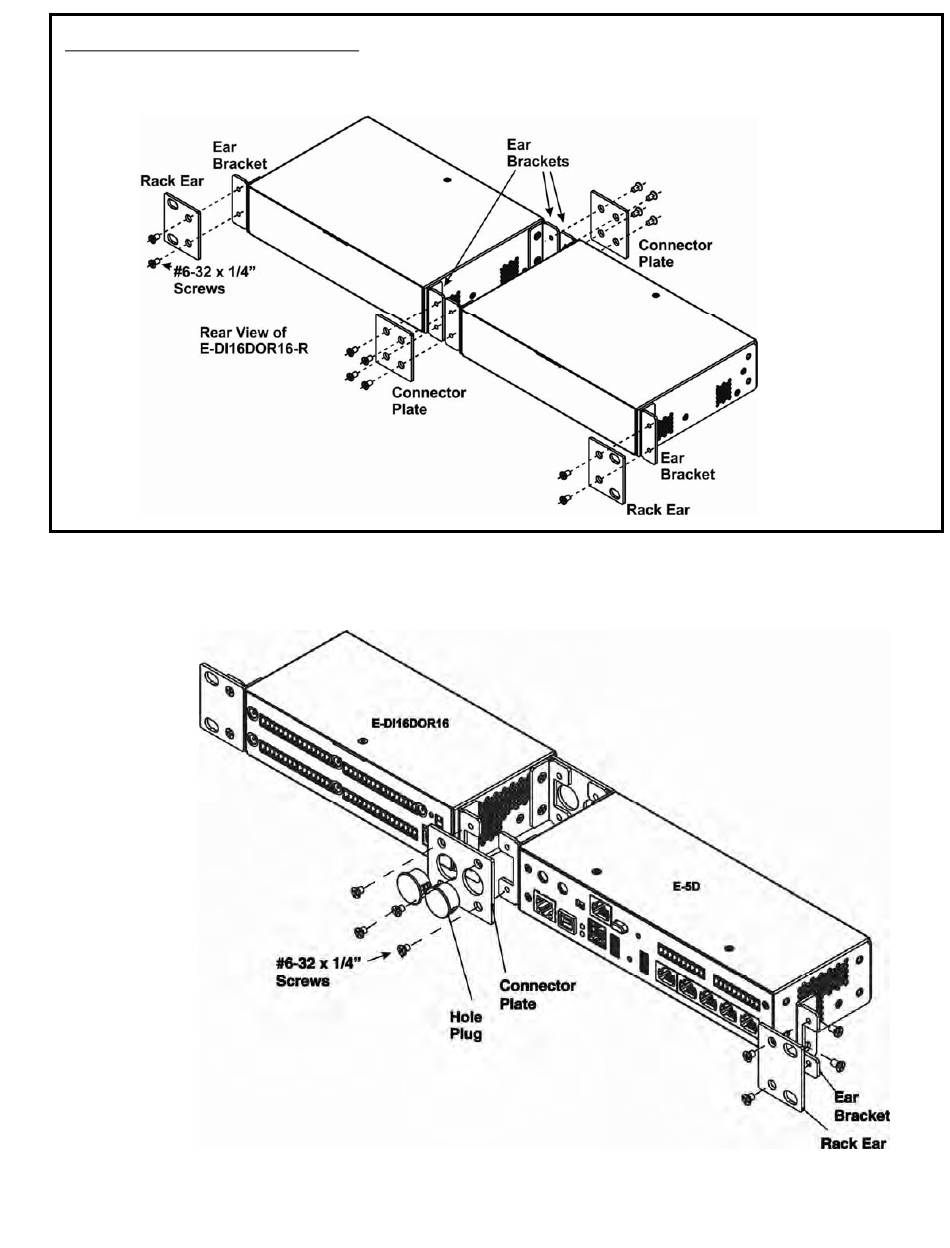

If the Expanders will have the cable connections coming from the rear, the ears and ear brackets can instead be applied to the
back of the Expanders so that the Expanders can be mounted facing the rear.
(Install these before attaching the connector plate
to the front.) Once the ear brackets are applied, the ears and connector plates can be attached.
E-RK1-5DDI16DOR16 Mounting Kit For mounting E-DI16DOR16-V2 and E-5D side by side in 1RU.
