MOUNTING
The E-DI16DOR16-V2 comes with surface/wall mount tabs on the bottom of the case.
attachment to any flat surface.
single unit, order E-DI16DOR16-V2R to receive hardware for single unit mounting.
DI16DOR16-V22R to receive hardware for dual unit mounting.
Follow the instructions below for assembly and installation.
To mount to a wall or other flat surface, remove the screws that secure the mounting tabs, rotate the tabs 180 degrees, and
reinstall the screws.
If the Expander will be mounted as a single or a double, brackets will need to be attached to the case to enable mounting ears or
a connector plate to be attached.

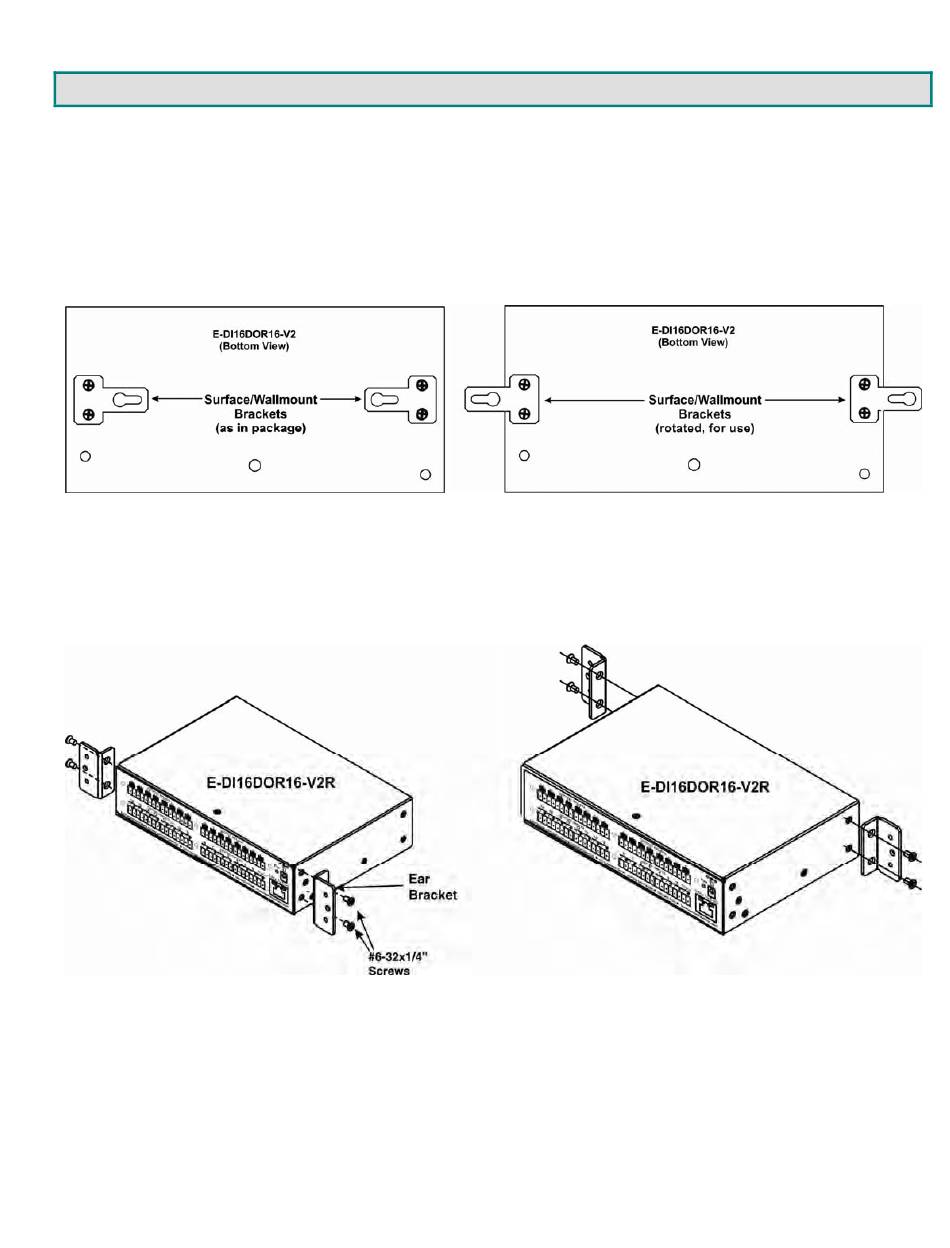

1. Attach the ear brackets to the Expander . The holes in the brackets should line up with pre-threaded holes in the sides of
the Expander. Tighten the screws securely.
It also includes mounting holes for the installation of rack ear brackets. To mount in a rack as a
These are easily removed and rotated for
To mount in a rack as a dual unit, order E-
