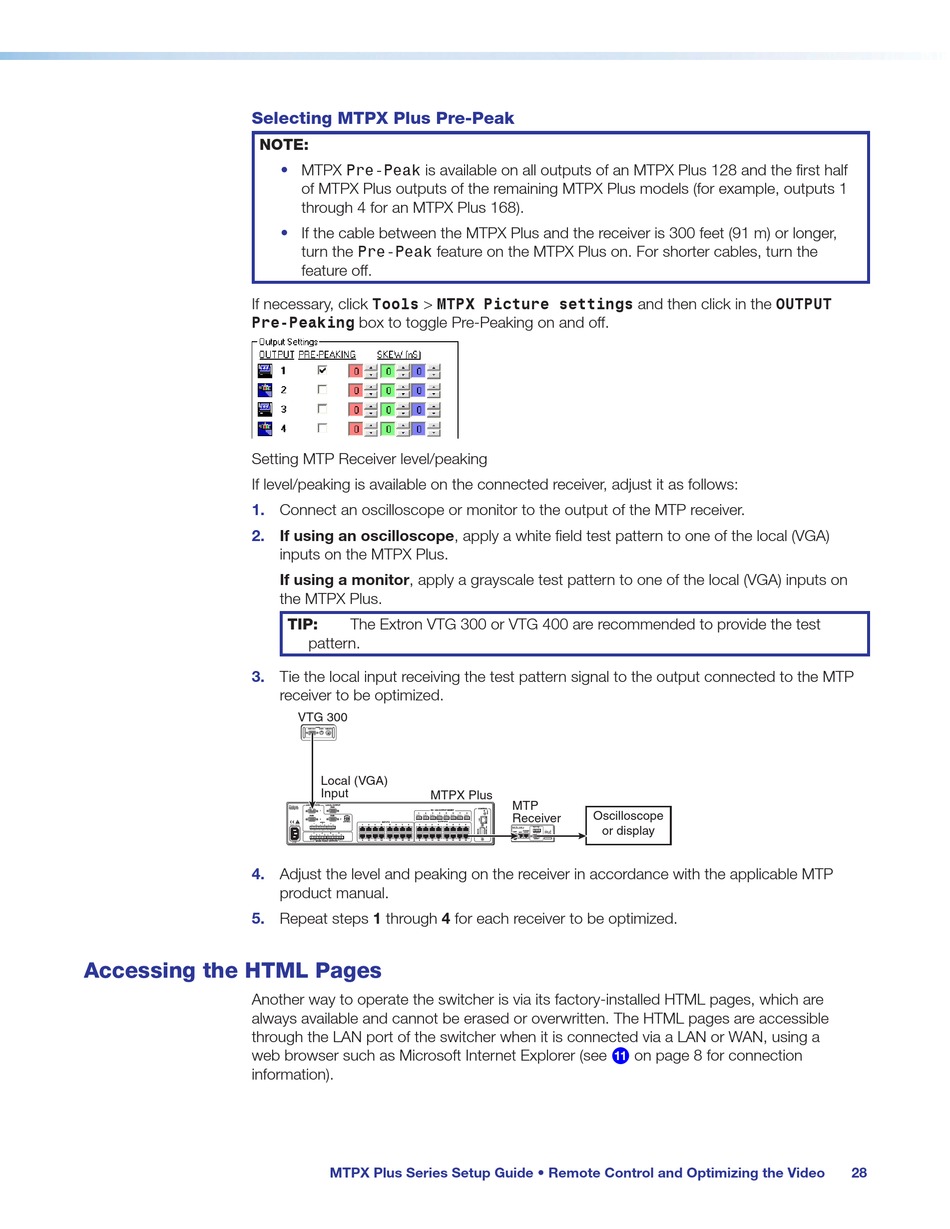

Selecting MTPX Plus Pre-Peak
NOTE:
If necessary, click Tools > MTPX Picture settings and then click in the OUTPUT
Pre-Peaking box to toggle Pre-Peaking on and off.
Setting MTP Receiver level/peaking
If level/peaking is available on the connected receiver, adjust it as follows:
1.
2.
3.
4.
5.

Accessing the HTML Pages

Another way to operate the switcher is via its factory-installed HTML pages, which are
always available and cannot be erased or overwritten. The HTML pages are accessible
through the LAN port of the switcher when it is connected via a LAN or WAN, using a
web browser such as Microsoft Internet Explorer (see
information).
• MTPX Pre-Peak is available on all outputs of an MTPX Plus 128 and the first half
of MTPX Plus outputs of the remaining MTPX Plus models (for example, outputs 1
through 4 for an MTPX Plus 168).
• If the cable between the MTPX Plus and the receiver is 300 feet (91 m) or longer,
turn the Pre-Peak feature on the MTPX Plus on. For shorter cables, turn the
feature off.
Connect an oscilloscope or monitor to the output of the MTP receiver.
If using an oscilloscope, apply a white field test pattern to one of the local (VGA)
inputs on the MTPX Plus.
If using a monitor, apply a grayscale test pattern to one of the local (VGA) inputs on
the MTPX Plus.
TIP: The Extron VTG 300 or VTG 400 are recommended to provide the test
pattern.
Tie the local input receiving the test pattern signal to the output connected to the MTP
receiver to be optimized.
VTG 300
VIDEO
RGB/R-Y,Y,B-Y S-VIDEO COMPOSITE
Local (VGA)
Input
MTPX Plus
LOCAL INPUTS LOCAL OUTPUT
RGB RGB
1 RS - 232 OUTPUT INSERT
1 2 3 4 5 6
RGB RGB LOCAL Tx Rx Tx Rx Tx Rx Tx Rx Tx Rx Tx Rx Tx Rx
ON
2 3
1 2 3
RJ - 45 INPUTS OUTPUT S
AUDIO INPUT SELECT
1 2 3 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7
1 2 3 4
L R L R L R L R
9 10 11 12 13 14 15 16 9 10 11 12 13 14 15
MONO AUDIO OUTPUTS
1
Adjust the level and peaking on the receiver in accordance with the applicable MTP
product manual.
Repeat steps 1 through 4 for each receiver to be optimized.
MTPX Plus Series Setup Guide • Remote Control and Optimizing the Video
MTP
CONTROL
Oscilloscope
Receiver
7 8
Tx Rx
8 or display
MTP R L 15H D A MONO AUDIO
1 2
BUFFERED
POWER INPUT OUTPUT
12V
.5A MAX ON
1 2 3 4 5 6
OUTPUT
16
on page 8 for connection
£
