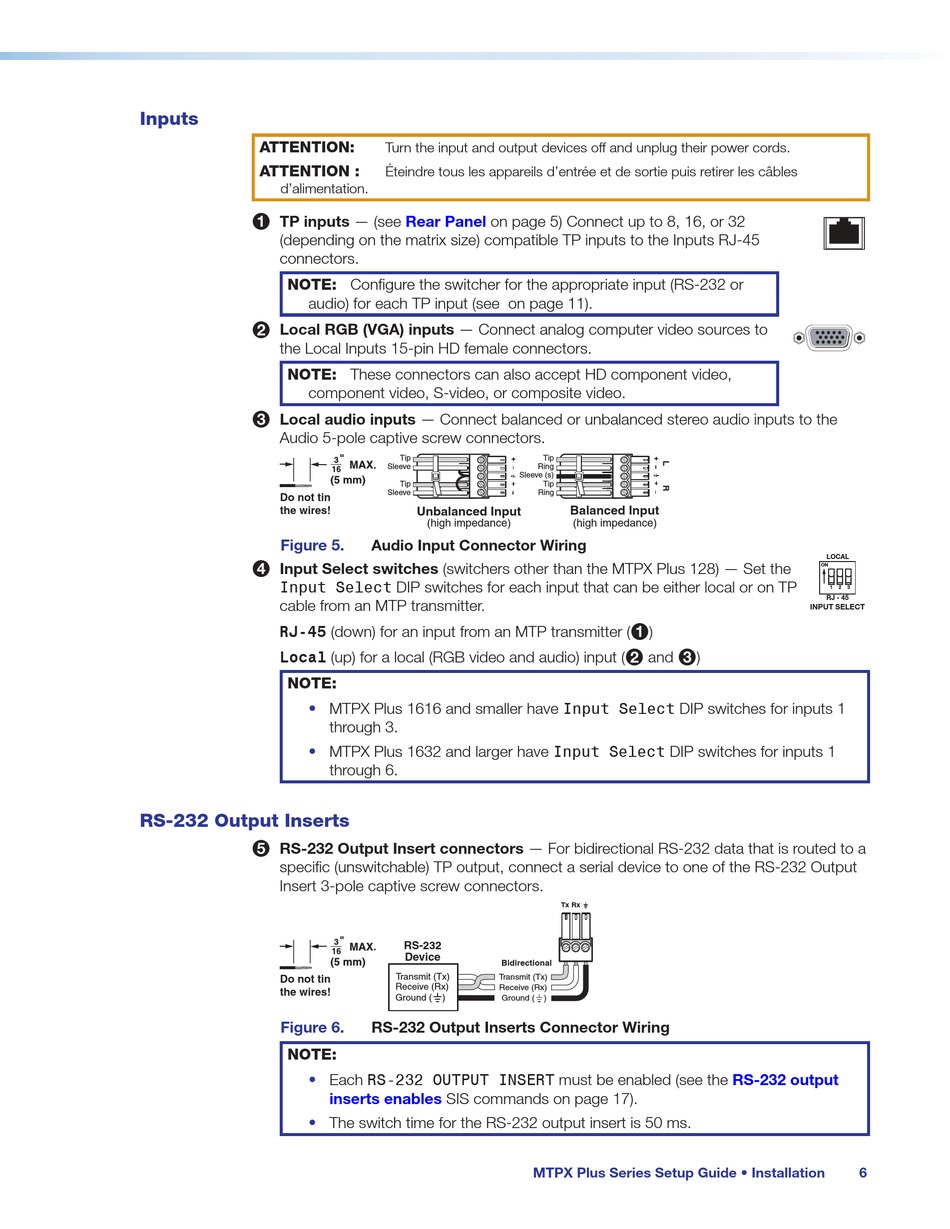

Inputs

ATTENTION:
ATTENTION :
d'alimentation.
TP inputs — (see
1
(depending on the matrix size) compatible TP inputs to the Inputs RJ-45
connectors.
NOTE: Configure the switcher for the appropriate input (RS-232 or
audio) for each TP input (see on page 11).
Local RGB (VGA) inputs — Connect analog computer video sources to
2
the Local Inputs 15-pin HD female connectors.
NOTE: These connectors can also accept HD component video,
component video, S-video, or composite video.
Local audio inputs — Connect balanced or unbalanced stereo audio inputs to the
3
Audio 5-pole captive screw connectors.
Do not tin
the wires!
Figure 5.
Input Select switches (switchers other than the MTPX Plus 128) — Set the
4
Input Select DIP switches for each input that can be either local or on TP
cable from an MTP transmitter.
RJ-45 (down) for an input from an MTP transmitter (
Local (up) for a local (RGB video and audio) input (
NOTE:
•
•

RS-232 Output Inserts

RS-232 Output Insert connectors — For bidirectional RS-232 data that is routed to a
5
specific (unswitchable) TP output, connect a serial device to one of the RS-232 Output
Insert 3-pole captive screw connectors.
Do not tin
the wires!
Figure 6.
NOTE:
•
•
Turn the input and output devices off and unplug their power cords.
Éteindre tous les appareils d'entrée et de sortie puis retirer les câbles
Rear Panel on page 5) Connect up to 8, 16, or 32
Tip
Sleeve
Tip
Sleeve
Unbalanced Input
(high impedance)
Audio Input Connector Wiring
MTPX Plus 1616 and smaller have Input Select DIP switches for inputs 1
through 3.
MTPX Plus 1632 and larger have Input Select DIP switches for inputs 1
through 6.
RS-232
Device
Bidirectional
Transmit (Tx)
Transmit (Tx)
Receive (Rx)
Receive (Rx)
Ground ( )
Ground (
RS-232 Output Inserts Connector Wiring
Each RS-232 OUTPUT INSERT must be enabled (see the
inserts enables SIS commands on page 17).
The switch time for the RS-232 output insert is 50 ms.
Tip
Ring
Sleeve (s)
Tip
Ring
Balanced Input
(high impedance)
)
1
and )
2 3
Tx Rx
)
MTPX Plus Series Setup Guide • Installation
LOCAL
ON
1 2 3
RJ - 45
INPUT SELECT
RS-232 output
6
