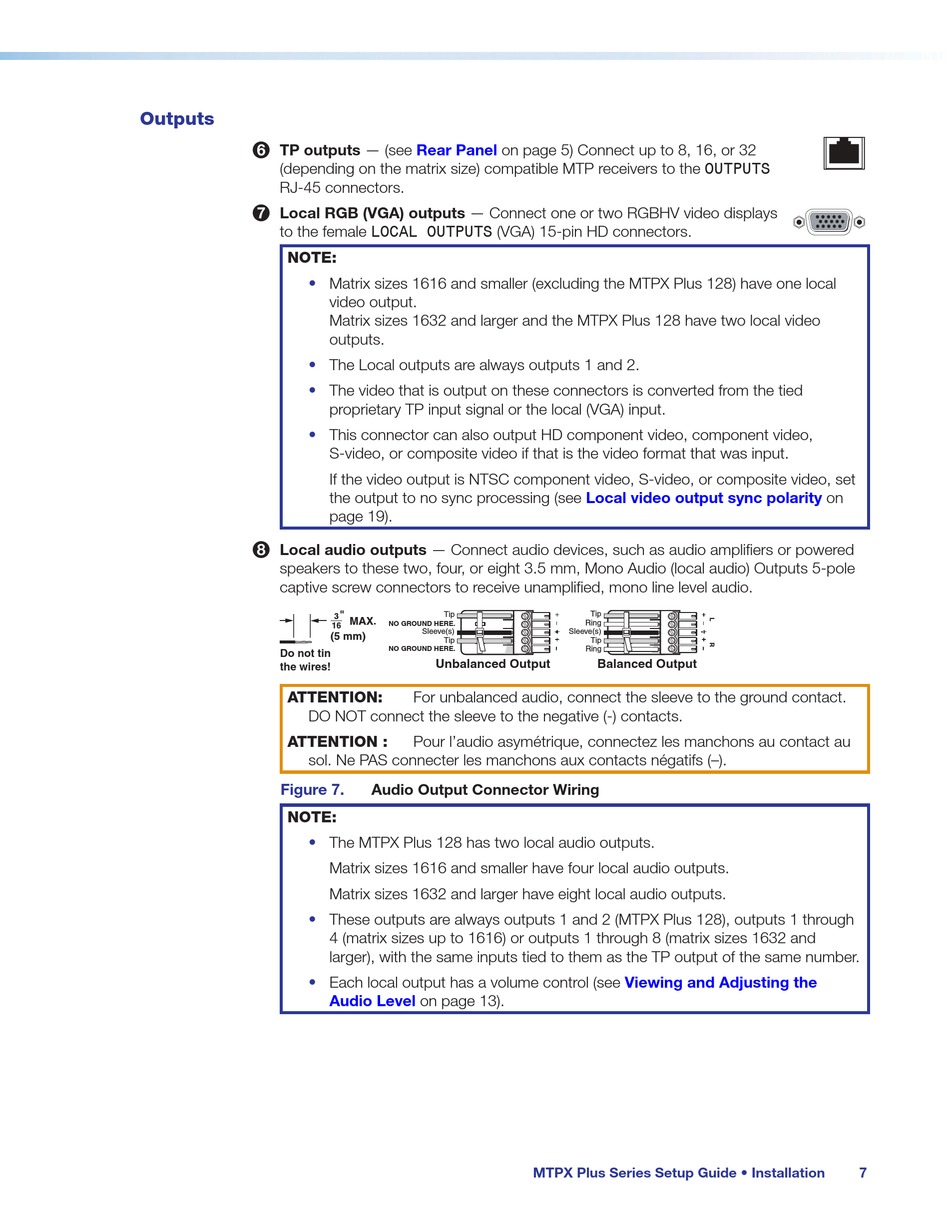

Outputs

TP outputs — (see
6
(depending on the matrix size) compatible MTP receivers to the OUTPUTS
RJ-45 connectors.
Local RGB (VGA) outputs — Connect one or two RGBHV video displays
7
to the female LOCAL OUTPUTS (VGA) 15-pin HD connectors.
NOTE:
•
•
•
•
Local audio outputs — Connect audio devices, such as audio amplifiers or powered
8
speakers to these two, four, or eight 3.5 mm, Mono Audio (local audio) Outputs 5-pole
captive screw connectors to receive unamplified, mono line level audio.
Do not tin
the wires!
ATTENTION:
DO NOT connect the sleeve to the negative (-) contacts.
ATTENTION :
sol. Ne PAS connecter les manchons aux contacts négatifs (–).
Figure 7.
NOTE:
•
•
•
Rear Panel on page 5) Connect up to 8, 16, or 32
Matrix sizes 1616 and smaller (excluding the MTPX Plus 128) have one local
video output.
Matrix sizes 1632 and larger and the MTPX Plus 128 have two local video
outputs.
The Local outputs are always outputs 1 and 2.
The video that is output on these connectors is converted from the tied
proprietary TP input signal or the local (VGA) input.
This connector can also output HD component video, component video,
S-video, or composite video if that is the video format that was input.
If the video output is NTSC component video, S-video, or composite video, set
the output to no sync processing (see
page 19).
Tip
NO GROUND HERE.
Sleeve(s)
Tip
NO GROUND HERE.
Unbalanced Output
For unbalanced audio, connect the sleeve to the ground contact.
Pour l'audio asymétrique, connectez les manchons au contact au
A udio Output Connector Wiring
The MTPX Plus 128 has two local audio outputs.
Matrix sizes 1616 and smaller have four local audio outputs.
Matrix sizes 1632 and larger have eight local audio outputs.
These outputs are always outputs 1 and 2 (MTPX Plus 128), outputs 1 through
4 (matrix sizes up to 1616) or outputs 1 through 8 (matrix sizes 1632 and
larger), with the same inputs tied to them as the TP output of the same number.
Each local output has a volume control (see
Audio Level on page 13).
Local video output sync polarity
Tip
Ring
Sleeve(s)
Tip
Ring
Balanced Output
Viewing and Adjusting the
MTPX Plus Series Setup Guide • Installation
on
7
