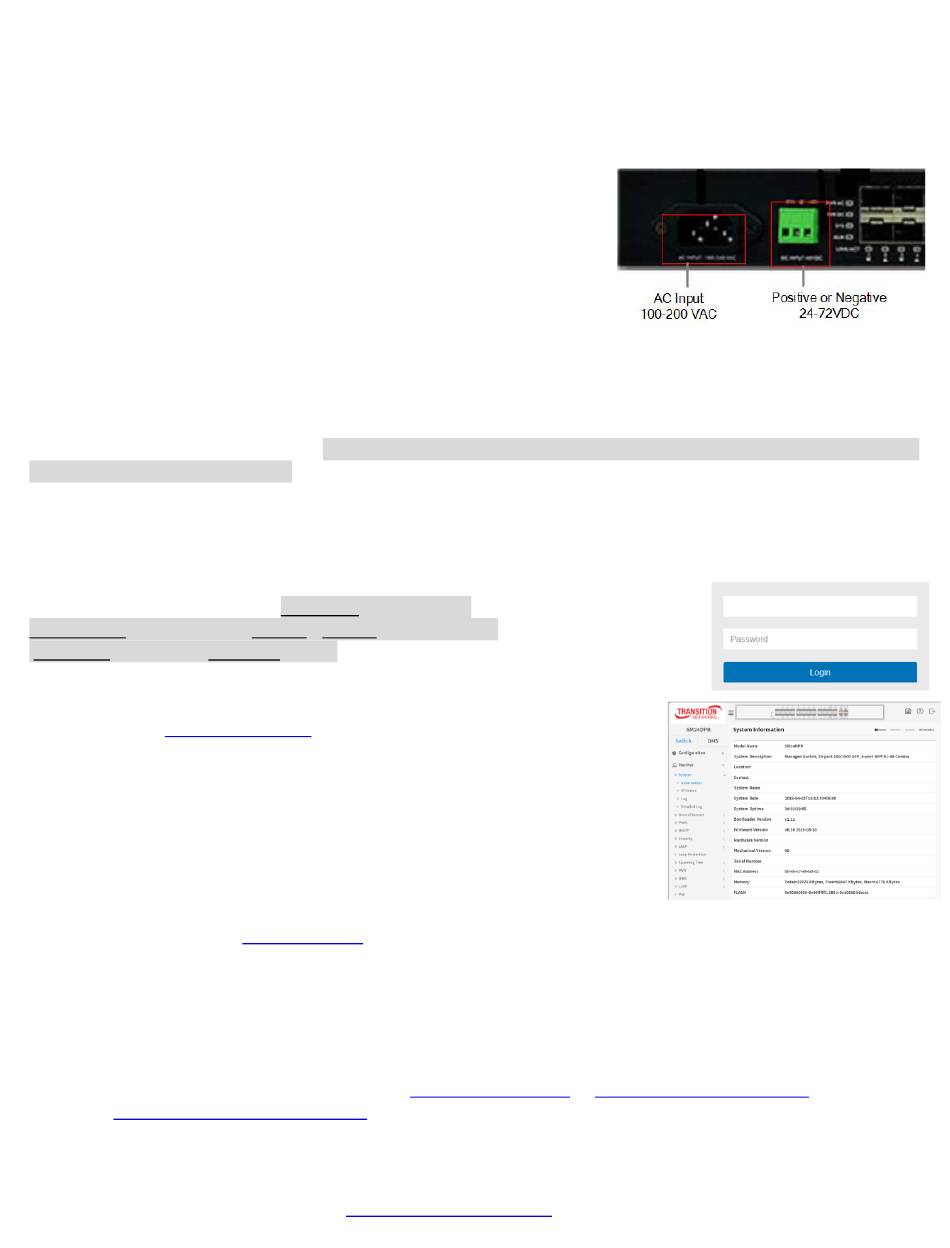

Connecting to Power

Connecting to AC Power Source

1. Insert the AC power cord directly into the AC socket on the front of the switch.
2. Plug the other end of the power cord into an AC power source.
3. Check the front-panel LEDs as the device is powered on to be sure the
POWER LED is lit. If not, make sure the power cable is correctly plugged in.

Connecting to DC Power Source

1. Insert the negative or positive voltage DC power source wires into the DC
INPUT terminals. 2. Use a small flat-blade screwdriver to tighten the wire-
clamp screws on the front of the terminal block connector to keep the DC
wires from pulling loose. 3. Insert the terminal block connector prongs into the terminal block receptor.
4. Check the SYS LED. If it is ON, the power connection is correct. See the Install guide for details.

Connecting to the Console Port

console configuration. The command line interface can be accessed from a terminal or a PC running a terminal emulation
program. The Console port defaults are: Baud rate=115,200 bps, Character Size=8 characters, Parity=None, Stop bit=One,
Data bits=8, and Flow control=none.
You can access the CLI via either a direct serial connection to the device or a Telnet session. The default login username
and password are both admin. After you login successfully, the prompt displays "<sys_name>#" meaning you are an
administrator for the Switch. If not logged as administrator, the prompt is shown as "<sys_name>>", meaning you can
only perform as a guest. Each CLI command has a specific privilege level.

Defaults

The default values are: IP Address=192.168.1.77,
:
Subnet Mask=255.255.255.0, Default Gateway=192.168.1.254,
Username=admin, and Password=admin.

Web Management via Web GUI

CLI via the switch's serial interface, you can access it from a web browser.
For instance, type http://192.168.1.77
Login screen displays prompting you for a username and password in order to login
and access authentication.
The default username and password are both "admin". For first time use, enter the
default username and password, and then click the <Login> button.
When the login process is complete, the SM24DPB web GUI displays.

Related Manuals

These manuals tell how to operate and use the management
:
SM24DPB Install Guid
functions of the switch:
Networks Manuals go to the
Transition Networks * 10900 Red Circle Drive * Minnetonka, MN 55343 * tel: +1.952.941.7600 | toll free:
1.800.526.9267 | fax: 952.941.2322 |
customerservice@transition.com
33680 Rev. B
: You can plug or remove an AC power cord from the AC socket.
The switch front panel DB-9 serial port is used to connect to the switch for out-of-band
:
After the managed switch has been configured in the
:
in the address row in a web browser; the
e (33681),
Product Support webpage (no logon required).
sales@transition.com
Copyright© 2016-2019 Transition Networks. All rights reserved.
https://www.transition.com
User Guide
(33682), and
| techsupport@transition.com
SM24DPB Quick Start Guide
CLI Reference
(33683). For Transition
|
