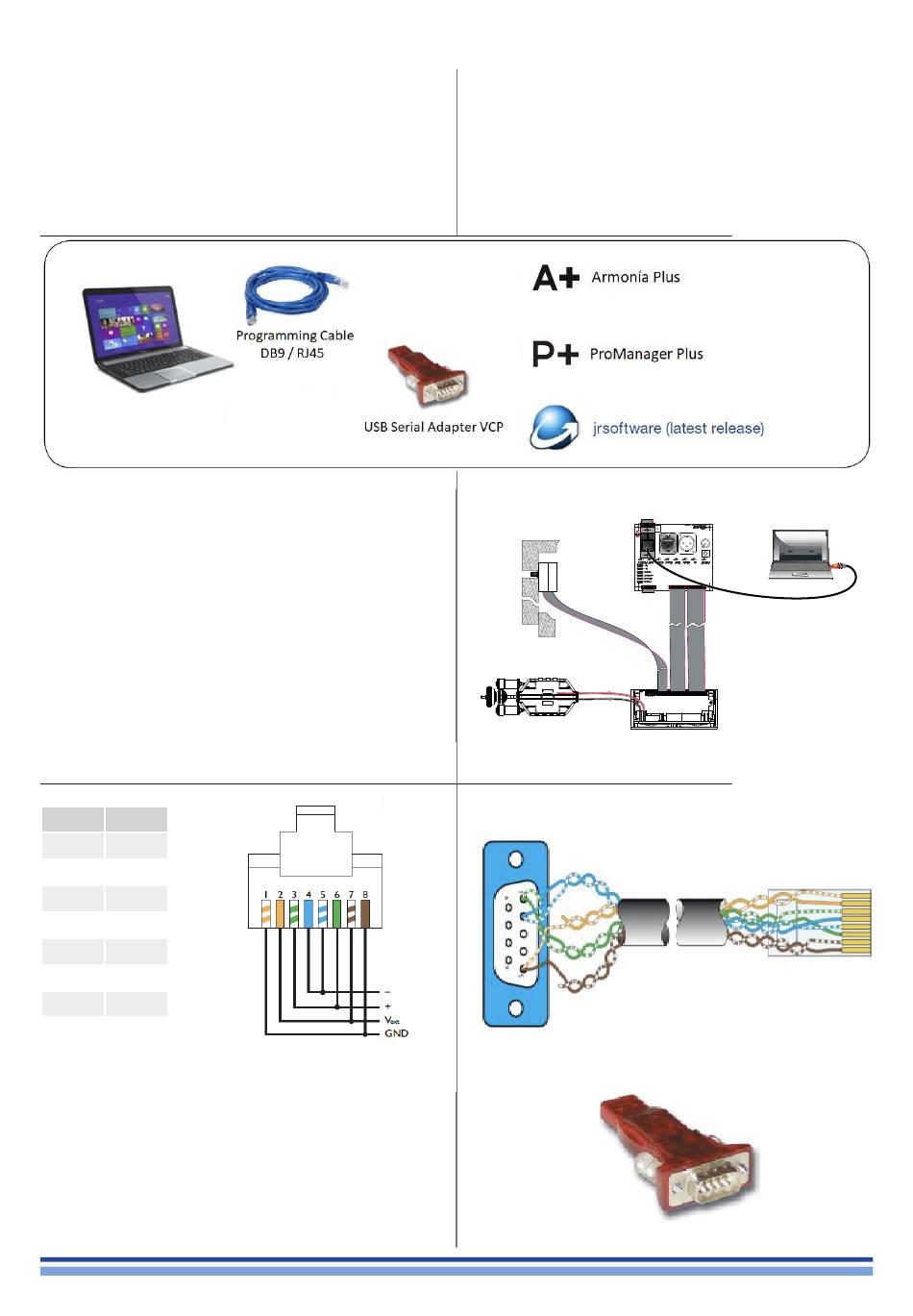

IpalMod DSP initialization

15 : 1.Required tools

Windows XP/7/8/10

14 : 2.5. Connection

1. Connect the amp module to the computer via the
RS485 connection on the interface board.
2. Set a unique ID number on the interface board by
means of the two rotary knobs: allowed values range from
01 to 99; 00 is reserved.
3. Turn the amplifier module on.

15 : 2.Programming Cable and Adapter

PIN SIGNAL
1 GND
2 V
ext
3 +
4 -
5 -
6 +
7 V
ext
8 GND
In order to implement a RS-485 port on a personal com-
puter Powersoft recommend the use of the SPECTRA USB
2.0 to RS-485 converter. A DB9 to RJ45 adapter is needed
as well.
18 | IpalMod | User guide
