11 : 5.Installing an optional DSP SIMM board

The IpalMod amplifier module can host an optional DSP
board such as the Powersoft DSP-D and DSP-4 interfaces,
as well as any other custom interface. Refer to
for proper SIMM board dimensions and connectivity.
In order to route the signal path to the optional
DSP board on the CN8 connector remove the
jumpers from CN17 as shown in
Remove jumper to activate signal
routing to the SIMM connector CN8

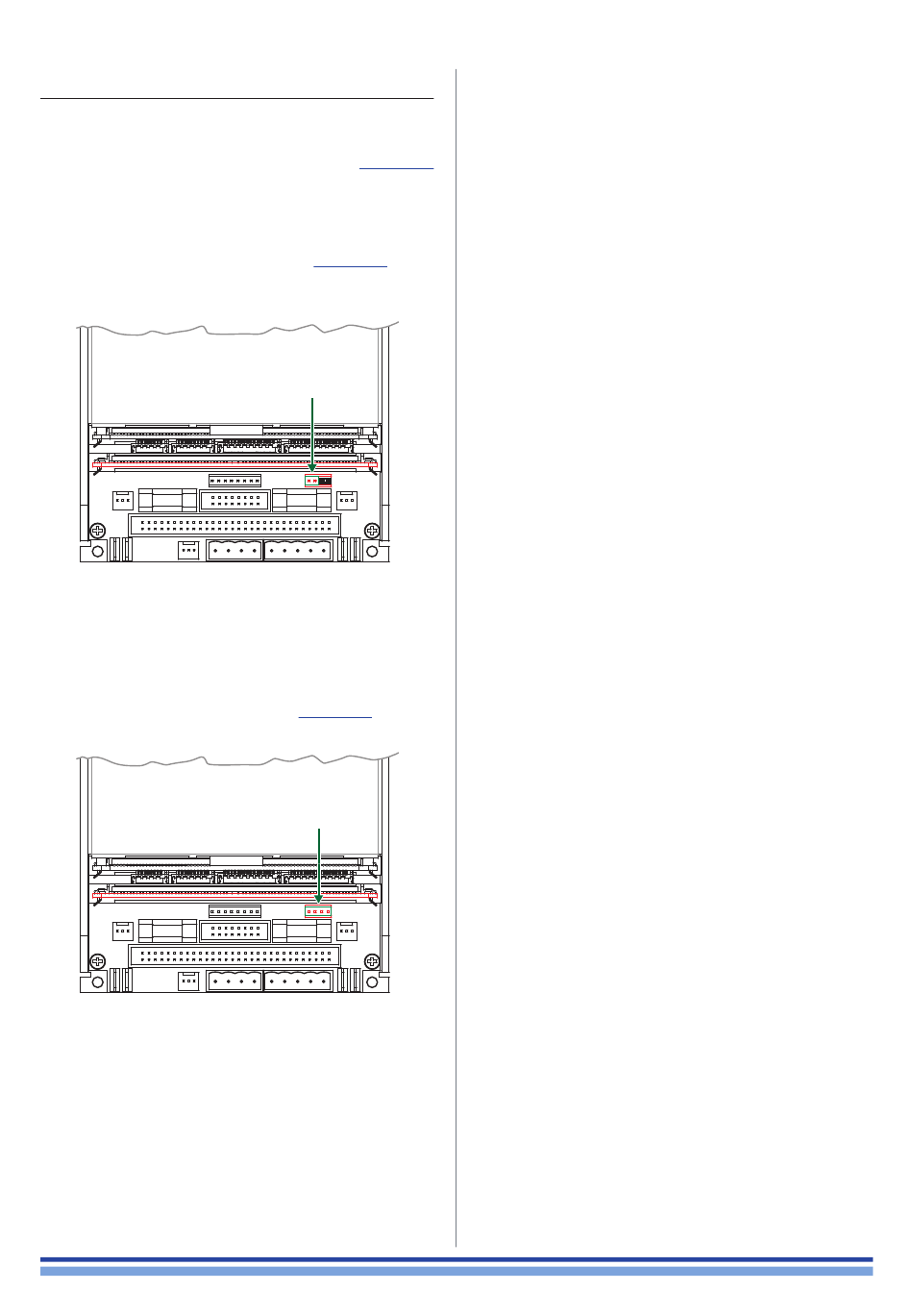

FIGURE 14: Jumper settings for optional DSP board.
Note about Powersoft DSP-D/DSP-C boards. Since the
Powersoft DSP-D and DSP-C boards implement an input
volume potentiometer on the interface panel, remove both
jumpers from the CN17 connector (ref.
Remove both jumpers to activate signal
routing to DSP-C and DSP-D boards
FIGURE 15: Jumper settings for DSP-C and DSP-D boards.
FIGURE 12
FIGURE 15.
FIGURE 16).
Connections | 11
