How To Connect a DigiMod
1000NPS to a DigiMod
500/1000/1000 IS
1 Introduction
1.1 Preliminary considerations
The DigiMod 1000NPS is an exact replica of the DigiMod 1000 output stage (2-channel bridgeable, 2x500W on 4Ω, 1x1000W on 8Ω),
which can be used in combination with DigiMod 500/1000/1000 IS to extend the range of possible multi-channel configurations and power
3-way active loudspeakers. In order to make this connection possible, the DigiMod 1000NPS must be equipped with an optional DSP-C
board.
Related Products:
DigiMod 1000NPS*
▶
DigiMod 500
▶
DigiMod 1000
▶
DigiMod 1000 IS
▶
* with DSP
1.2 Tools Needed:
1 male MOLEX 3-pin connector
▶
1 female MOLEX 3-pin connector
▶
1 male PHOENIX 5-pin connector (MSTB, 2.5/5-ST-5.08)
▶
Balanced cable (low impedance)
▶
Soldering iron and solder
▶
Powersoft CB000098 cable or equivalent (10 pole 8/10 mm cable, with 2 MOLEX Micro-Fit 3.0 connectors)
▶
pliers for electronic use
▶
2 Procedure
2.1 Connect the Power supply

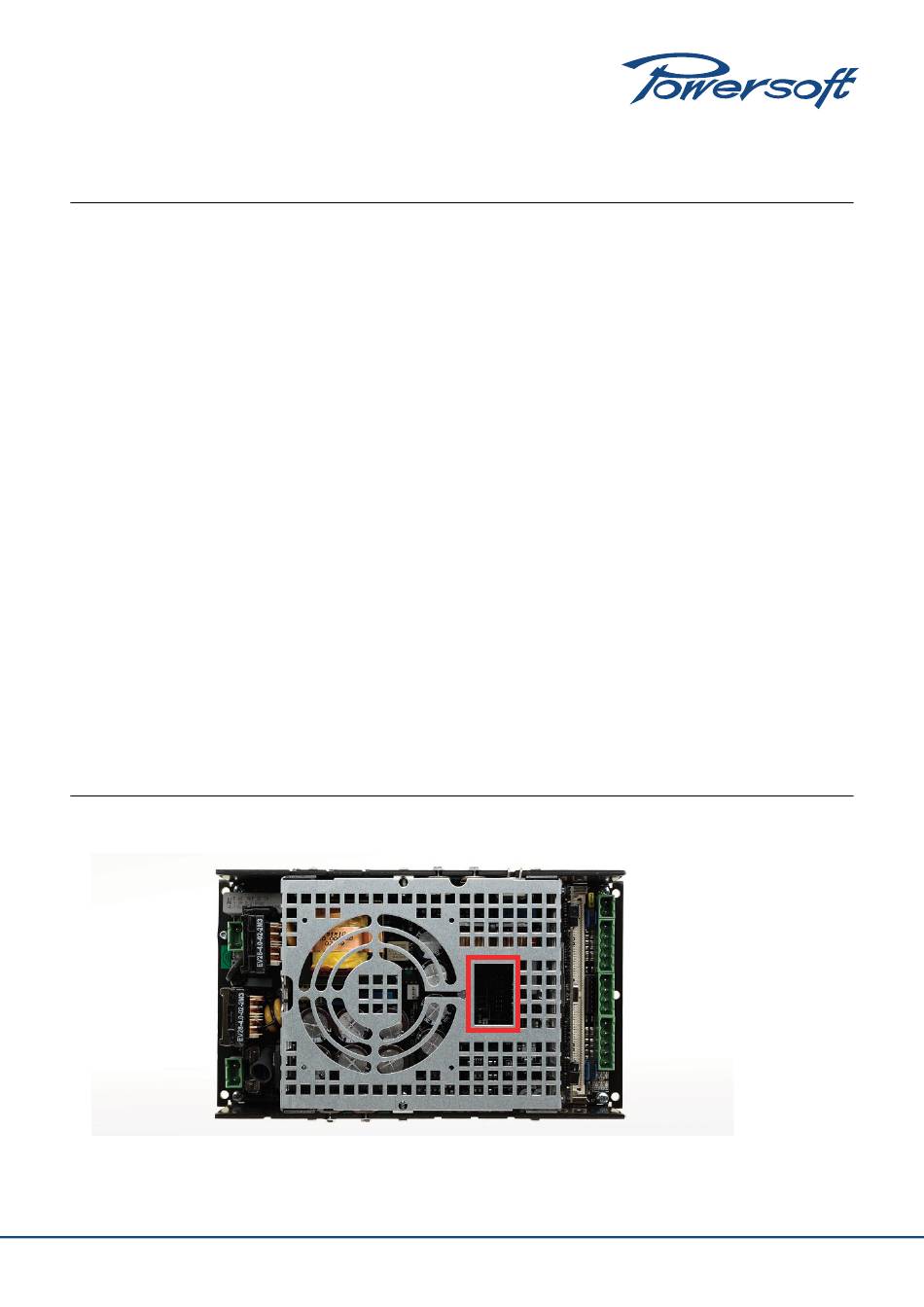

FIGURE 1: DigiMod 500 power supply connector position
powersoft_connecting_dm1000nps_to_500_1000_1000IS_en_v1.0
© 2012 Powersoft
Powersoft S.r.l. • Via Enrico Conti,
• sales
powersoft.it • www.powersoft-audio.com
+39 055 735 0230
@
5
•
50018
Scandicci (FI) • Italy
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for powersoft DigiMod 1000NPS
Summary of Contents for powersoft DigiMod 1000NPS
- Page 1 1.1 Preliminary considerations The DigiMod 1000NPS is an exact replica of the DigiMod 1000 output stage (2-channel bridgeable, 2x500W on 4Ω, 1x1000W on 8Ω), which can be used in combination with DigiMod 500/1000/1000 IS to extend the range of possible multi-channel configurations and power 3-way active loudspeakers.
- Page 2 DSP board itself. The DigiMod 500/1000/1000 IS will therefore receive channels 3 and 4 as input. In this configuration, the slave module’s Please note that this configuration is compatible with all presets Powersoft makes available to the public. Any other configuration is not guaranteed as compatible with Powersoft presets.
- Page 3 FIGURE 5: Jumpers for setting a module as master or slave 3.3 Connecting the DigiMod 1000NPS To The DigiMod 500/1000/1000 IS In order to connect the master module’s output channels (DigiMod 1000NPS) 3 and 4 from the DSP so they become inputs for the DigiMod 500/1000/1000 IS: 1.
- Page 4 FIGURE 6: DSP with soldered MOLEX connector and three pin male MOLEX connector 3. Make the following cable so it connects DSP output channels 3 and 4 from the MOLEX connector to the DigiMod 1000NPS Phoenix inputs. The cable will be balanced, low impedance and will have the following connectors: 1 3-pin female MOLEX ▶...
- Page 5 In order to connect the master module outputs to the slave module inputs: 1. Connect the cable that you’ve just made to the DSP in the DigiMod 1000NPS master module (with the MOLEX 3-pin connector). 2. Connect the other end of the cable with its two Phoenix 5-pin connectors to the slave module’s input connectors as seen in the figure...
