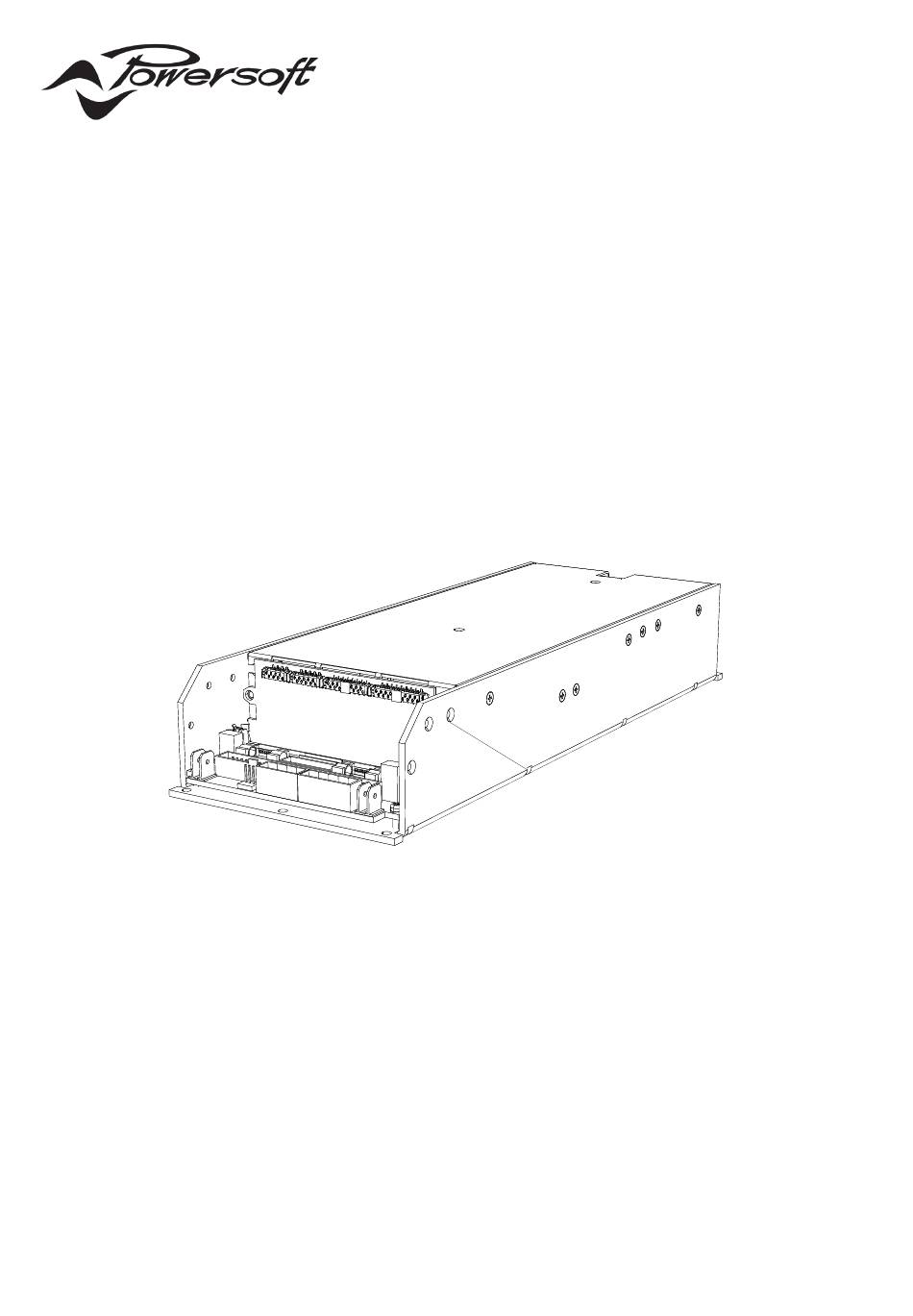

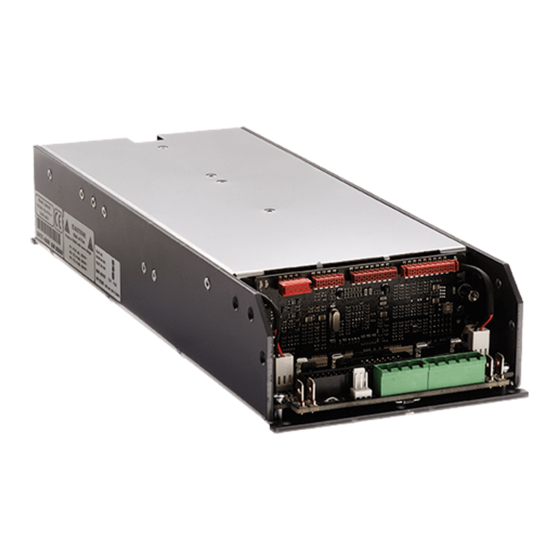

- Page 1 IpalMod USER GUIDE ©2020 Powersoft Keep this manual DO000129.05 R0 for future reference...
- Page 2 DO000129.05_powersoft_IpalMod_uguide_en Data are subject to change without notice. For latest update please refer to the online version available on www.powersoft-audio.com.
-
Page 3: Table Of Contents
5. Regulatory information 11 : 3.Control board: bill of connectors 6. Electrostatic Discharge (ESD) viii 11 : 4.Amp module: bill of connectors 7. IpalMod 11 : 4.1. CN11 pinout 11 : 4.2. CN17 pinout 7 : 1.Welcome 11 : 4.3. CN14 pinout 7 : 2.Unpacking &... - Page 4 16 : 4.Add online Custom Model 16 : 5.Add offline Custom Model 17. DSP-4 Initialization 17 : 1.Required Tools 17 : 2.Connection 17 : 3.DSP-4 initialization as Powersoft model 17 : 4.Programming DSP-4 17 : 5.Export Custom Preset (DSP-4) 18. Creating Model Building 18 : 1.Custom model builder...
-
Page 5: Important Safety Instructions
8. Do not defeat the safety purpose of the polarized or grounding- Symbol for earth/ground connection. type plug. 9. Only use attachments/accessories specified by Powersoft. Symbol for conformity with Directive 2002/96/EC 10. Refer all servicing to qualified service personnel. Servicing is... -
Page 6: Importantes Instructions De Sécurité
6. Assurez-vous d’une bonne ventilation de l’appareil. Installez en pour lors opérations de maintenance. accord avec les instructions préconisées par Powersoft. 7. N’installez pas l’appareil à proximité de sources de chaleur ou Le marquage CE indique la conformité à la directive de d’autres appareils produisant de la chaleur. -
Page 7: Instrucciones De Seguridad Importantes
6. No bloquee las aberturas de ventilación. Realice la instalación de de operación o mantenimiento. acuerdo con las indicaciones de Powersoft. 7. No instale cerca ninguna fuente de calor como, por ejemplo, La marca CE indica el cumplimiento de la directiva radiadores, rejillas de calefacción, hornos u otros aparatos que... -
Page 8: Importanti Istruzioni Di Sicurezza
DELL’UNITÀ. NON CI SONO PARTI INTERNE AD USO DELL’UTENTE. RIVOLGERSI A PERSONALE QUALIFICATO PER L’ASSISTENZA. NON ESPORRE QUESTO APPARECCHIO ALLA PIOGGIA, UMIDITÀ O SOSTANZE LIQUIDE. OGGETTI PIENI DI LIQUIDI, COME VASI, NON DEVONO ESSERE COLLOCATI SU QUESTO APPARATO. vi | IpalMod | User guide... -
Page 9: Regulatory Information
The Waste Electrical and Electronic Equipment Directive (WEEE Directive) aims to minimise the impact of electrical and electronic goods on the en- Luca Lastrucci vironment. Powersoft S.p.A. comply with the Directive 2002/96/EC and Managing Director 2003/108/EC of the European Parliament on waste electrical finance the cost of treatment and recovery of electronic equipment (WEEE) in order to reduce the amount of WEEE that is being disposed of in land-fill site. -
Page 10: Electrostatic Discharge (Esd)
It is recommended that all workstations where Electrostatic Discharge Sensitive devices (ESDS) and assemblies are handled outside of full static protection packaging (i.e. within static control areas) should be pro- vided with some form of ground conductive or dissipative flooring. viii | IpalMod | User guide... -
Page 11: Ipalmod | 1
The Differential Pressure Control – DPC – is the core IpalMod module. technology of the Integrated Powered Adaptive Loudspeaker We know you are eager to use the IpalMod module, but system, also known as IPAL. please take a moment to read this user’s manual and safety DPC makes IPAL systems efficient and reactive ®... -
Page 12: Thermal Constrains
3400 W peak power, the dissipated heat is: as the peak power delivered by the module 3400 (1 - 0.8) as the highest ambient temperature = 170 W as the highest operating temperature 2 | IpalMod | User guide... -
Page 13: 2.Suggested Heatsink
45 °C. 75 - 45 = 0.14°C/W 8 : 2.Suggested heatsink Powersoft provides an IpalMod compatible aluminium alloy (for further information, please refer to the DigiMod IK user heatsink, specifically designed to house the amp module, guide, available on Powersoft website). -
Page 14: Electromagnetic Compatibility (Emc)
EMC filter must be inserted before the AC MAINS ferrite shield as close as possible to where the cable plugs plugs on the power supply. Powersoft suggests: into the amplifier. Placing the ferrite elsewhere on the cable Schaffner FN2030-10-06 model. -
Page 15: Mechanical Drawings
Mechanical drawings FIGURE 7: IpalMod: side and back plate (all dimensions in millimeters). Mechanical drawings | 5... - Page 16 90° FIGURE 8: Pressure sensor (all dimensions in millimeters) FIGURE 9: DPC interface board (all dimension in millimiters). 6 | IpalMod | User guide...
-
Page 17: Connections
Micro Match Socket 18 pin CN102 Interface board 2 Micro Match Socket Caution: do not connect any cable to the reserved CN1 connector on the IpalMod connection board: module doing so can result in permanent module damage. CN109 CN101 CN102 FIGURE 10: DPC interface to control board connections. -
Page 18: 4.Amp Module: Bill Of Connectors
R = 1 kΩ to 2,7 kΩ (ref. FIGURE 13). 11 : 4.2. CN17 pinout Pin# Name Description BY11 DSP/ext. circuit board BY21 DSP/ext. circuit board BY21 bypass BY31 bypass 8 | IpalMod | User guide... -
Page 19: 4.3. Cn14 Pinout
11 : 4.3. CN14 pinout 11 : 4.6. CN2 pinout Pin# Name Description Pin# Name Description reference ground 1-2-3-4 5-6-7-8 rail bus OUT 9-10 MUTE Mute command 11-12-13 not connected Aux –12 –12 V 14-15-16 Aux +12 +12 V 17-18-19 –V –V rail bus OUT... - Page 20 Neutral Earth Phase Remove jumper to activate external volume potentiometer COLD External volume potentiometer (optional) Single transducer mode Dual transducers mode FIGURE 13: IpalMod: mains and audio connections. 10 | IpalMod | User guide...
-
Page 21: 5.Installing An Optional Dsp Simm Board
11 : 5.Installing an optional DSP SIMM board The IpalMod amplifier module can host an optional DSP board such as the Powersoft DSP-D and DSP-4 interfaces, as well as any other custom interface. Refer to FIGURE 12 for proper SIMM board dimensions and connectivity. -
Page 22: Led Chart
SOLID ON GREEN SOLID ON active Thermal protection YELLOW TEMP SOLID ON signal clip active No faults, system GREEN READY SOLID ON GREEN ready SOLID ON fully operating GREEN System on SOLID ON protection active 12 | IpalMod | User guide... -
Page 23: Pressure Sensor
In order to guarantee high system performance, the Cabinet proper placement of the pressure sensor on the loudspeaker cabinet and the correct connection of the transducer to the IpalMod are paramount. Pressure sensor WARNING! Inadequate or wrong positioning of the... -
Page 24: Initialization
Using ProManager Plus™ is possible creating a custom model based on Zero Latency DSP (included on IpalMod) or based on an additional Powersoft DSP-4. Once you have created and exported the custom Armonía Plugin, the loudspeaker equipped with IpalMod can be recognized and managed via ArmoníaPlus™... -
Page 25: 2.Initialization Framework
In order to initialize the DSP on board and external Powersoft DSP, the ProManager Plus™ proposes two approaches: Powersoft init or Custom init. The former initializes your DSP with default settings, while the latter initializes the DSP with your custom processing and it will allow ArmoníaPlus™ to identify your system as proprietary. As shown on the workflow, before directly proceeding with a custom initialization of the DSP, you are required to create a valid custom model for your product in which the presets –... -
Page 26: 2.2. Software Installation
5. Click on Sign up 6. Confirm your registration opening the welcome email at the specified address. NB - you must indicate your brand in the Powersoft ge- neric account registration form, but it is not for ProManager. 16 | IpalMod | User guide... -
Page 27: 2.4. Brand Register
6. Fill in all the cells with the required information 7. Click on Sign up 8. Powersoft staff must be enable your request, so it will be in pending until confirmation (normally within 24h), you will receive a email confirmation. -
Page 28: Ipalmod Dsp Initialization
15 : 2.Programming Cable and Adapter SIGNAL In order to implement a RS-485 port on a personal com- puter Powersoft recommend the use of the SPECTRA USB 2.0 to RS-485 converter. A DB9 to RJ45 adapter is needed as well. -
Page 29: 3.Initialization As Prototype
7. Fill in the cells with the required info 8. Select what kind of preset you want to store on your IpalMod; you find the Pam Description for each selected file then click on Start IpalMod DSP initialization | 19... -
Page 30: 4.Making Custom Preset
ArmoníaPlus At this stage you should have already initialized your DSP board as a Powersoft model. This includes also some default presets’ schemes designed by Powersoft, which are intended to represent a good starting point for your evaluation of the amplifier, for a proper tuning of your speaker and for desired signal processing that you want to apply on your finished product. - Page 31 10. Go in the Select view , double click on the model 11. IpalMod as should appear at first opening IpalMod DSP has two access levels based on kind of user: 1) Monitor view – for end user 2) Advanced view – for manufacturer...
-
Page 32: 4.2. Monitor View
Clicking on Advanced view , is possible entering deep inside in DSP processing, of course this is permitted only for a manufacturer with a pre-registered IpalMod license, Advanced view button does not show in case of missed license. When you pass in Advanced view first time after the initialization as Powersoft Model, no password will be requested. - Page 33 Gain (when available) using the sliding box. A log scale diagram of each filter’s effect is presented, the slider on filters allows real time variations of filter parameters such as the filter’s central frequency, gain, Q. IpalMod DSP initialization | 23...
-
Page 34: 4.4. Internal Parameters
This is usually a small number, which aims to return the apparent loud- speaker resistance to a traditional 2-4 Ohm value; f The LPF bandwidth, defining the range of frequency at which this feedback loop is active. 24 | IpalMod | User guide... - Page 35 This can be oc- casionally caused by a fault either in the amp module or in the transducer motor. Powersoft recommends to set the efficiency protection at least to 1/3 of the value of the reference loudspeaker efficiency (Ref eff.
-
Page 36: 4.5. Virtual Speaker Mode
The way this is achieved is practically user-transparent, meaning that the user can “interact” with the system only by changing the virtual speaker’s parameters and not the system’s internal loop parameters. 26 | IpalMod | User guide... -
Page 37: 4.6. Thiele/Small Parameters
Cm (henry); ffRef eff. no: loudspeaker free air standard reference efficiency (unitless); ffRef eff. no%: same as Ref eff. no in percentage; ffRef SPL: reference sound pressure level (dB): Ref SPL = 112 + 10 log(no). IpalMod DSP initialization | 27... -
Page 38: 4.8. Metering
15 : 4.8. Metering Metering are divided in two parts, one regarding IpalMod amplifier and one regarding the M-Force and loudspeaker volume. Where is present, the red line indicates the threshold level in according with respective limiter. 15 : 4.8.1. IpalMod metering Input (V ) –... -
Page 39: 4.9. Locking
Lock button, IpalMod and so pam files exported remain not locked by password. Make attention: password is saved on board IpalMod and in the pam file when you export it, only pam files with a same password than IpalMod will open. -
Page 40: Custom Model Building
Choose a suitable image for your system/model, sug- gested size: 350 max width, 250 max height f Preset: Load the presets that you have previously ex- ported from ArmoníaPlus™ f Click Save and confirm 30 | IpalMod | User guide... -
Page 41: 2.Initializazion As End Product
Custom model are yet available on your list. 1. Open ProManager Plus™ 2. Click on the DSP Initializer button 3. Discover the IpalMod using selected Com port as shown previously and press Next 4. Select Custom Model 5. -
Page 42: 3.Exporting Models
NB: the Plug-in published as Private is availabe on MarketPlace only for user registered to the custom model's brand. 4. Open ArmoníaPlus Plus and go to MarketPlace 5. Select online folder and choose the custom model you want, then click on install. 32 | IpalMod | User guide... - Page 43 It's possible passing plug-in in global publish, so avail- able for each ArmoníaPlus user, via oem database. 6. Have a log-in on oem.powersoft.com, there are all custom models you have created and their publishing state, private and public. 7. Global publishing is available if custom model already published in private mode.
-
Page 44: 4.Add Online Custom Model
1. Go in the Add view 2. Click Powered Speaker 3. Choose your brand, family, model and kind of application. 4. Press Add & Close 5. Blue frame means virtual Power speaker. 34 | IpalMod | User guide... -
Page 45: Initialization
1. Connect DSP-4 to the computer via Ethernet cable. 2. Turn the amplifier module on. Initialization as Prototype 17 : 3.DSP-4 initialization as Powersoft model 1. Open Armonía ProManager Plus™ 2. Click on the DSP Initializer button DSP-4 Initialization | 35... - Page 46 DSP-4. 7. Select Initializer as operating mode 8. Fill in the cells with the required info selecting DSP40004 as DSP in couple with IpalMod. 9. Specify the product serial assigned to your system/ model 10.
-
Page 47: 4.Programming Dsp-4
17 : 4.Programming DSP-4 At this stage you should have already initialized your DSP board as a Powersoft model. This includes also some default presets’ schemes designed by Powersoft, which are intended to represent a good starting point for your evaluation of the amplifier, for a proper tuning of your speaker and for desired signal processing that you want to apply on your finished product. -
Page 48: 5.Export Custom Preset
8. You now have a full overview of your Powersoft sys- tem: click on the Scheme tab 9. Double click on the functional blocks to edit the pro- cessing parameters 11. Once you are happy with the processing you can lock all params you want, clicking on Preset Locking 12. -
Page 49: Creating Model Building (Dsp-4)
Model image: Choose a suitable image for your sys- tem/model (suggested size 350 max width, 250 max height) f Default Preset: Pam file exported from Powersoft model, is the one loaded in virtual Powered speaker f Presets onboard: previously exported from Powersoft model. -
Page 50: 2.Initialize As End Product
Skip firmware update check box 8. Press Start and wait until the DSP is successfully initialized. At the end of initialization, device will be ready to be recognized by Plugin previously installed. 40 | IpalMod | User guide... -
Page 51: 5.Expoting Models & Publishing On Armoníaplus' Marketplaceadd Online Custom Model
18 : 5.Expoting Models & Publishing on ArmoníaPlus' MarketplaceAdd online Custom model Refer to chapter 16.3. 18 : 3.Add online Custom model From this step onwards, your product will appear and will be recognized in ArmoníaPlus™ as custom and the model will include all the proprietary processing and customization that you have applied using the ProManager Plus™. -
Page 52: Support And Warranty
Powersoft dealer (or to Powersoft for repair. In the latter case, before shipping, distributor). You can also contact the Powersoft Technical you are kindly asked to follow step by step the procedure... -
Page 53: Specifications
Specifications AC Mains Supply Output Stage Universal regulated, switch Maximum output power 8500W @ 1Ω Power supply mode, with PFC Maximum unclipped output voltage 180 V peak Nominal power requirement AC 100 V - 240 V, 50/60Hz Maximum output current 110 A peak Operating range... - Page 54 Page intentionally left blank 44 | IpalMod | User guide...
- Page 55 Powersoft S.p.A. Via Enrico Conti, 5 50018 Scandicci (FI) Italy Tel: +39 055 735 0230 Fax: +39 055 735 6235 General inquiries: info@powersoft.it Sales: sales@powersoft.it Application & technical support: support@powersoft.it Service & maintenance: service@powersoft.it Compliance questions: compliance@powersoft.it powersoft-audio.com...
