Connections

Audio
input
DPC
interface
board
CN106
Micro Match
12 pin
Pressure
sensor
RS-485
interface
CN103
Control
board
Amp
module
CN1
CN109

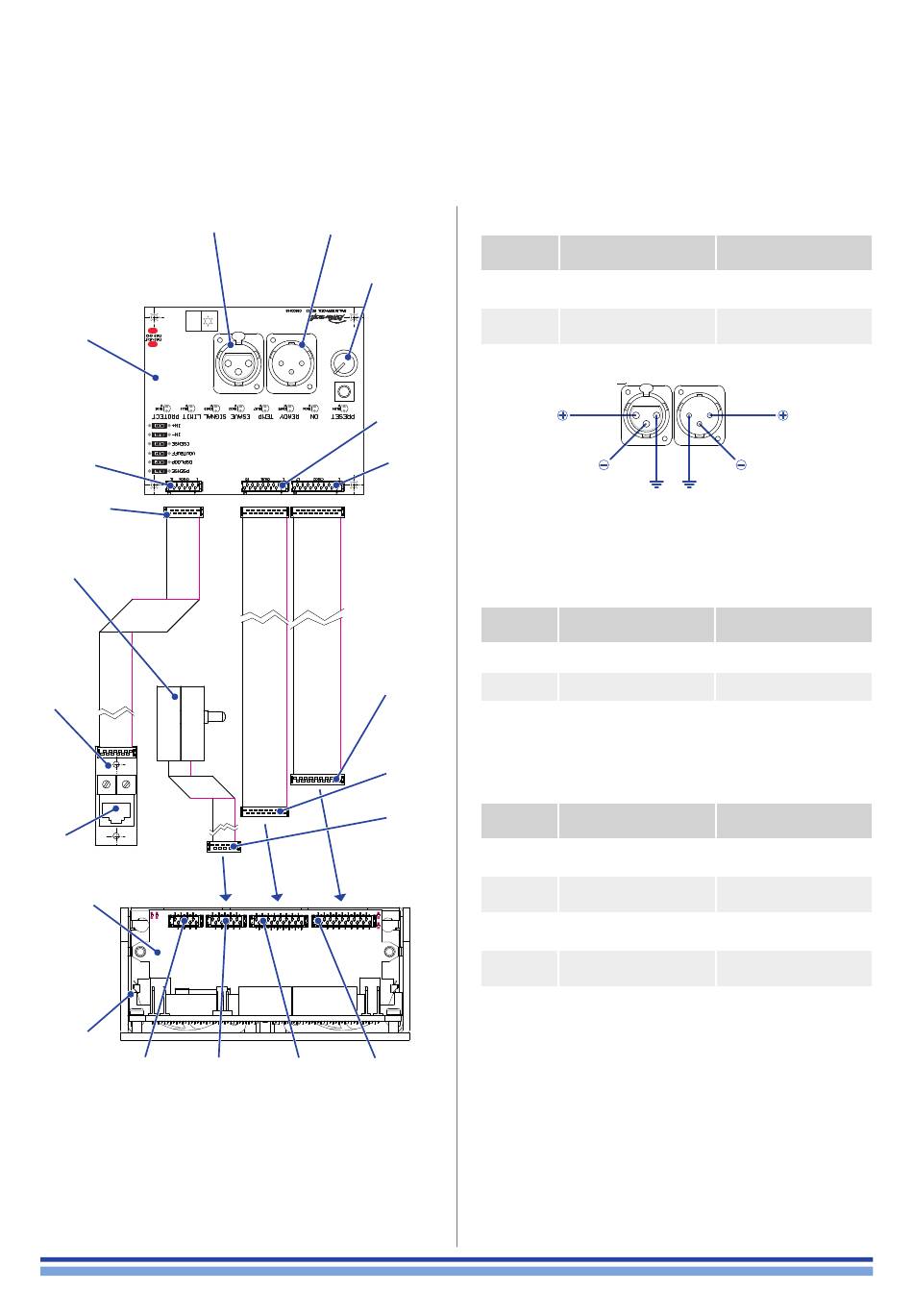

FIGURE 10: DPC interface to control board connections.
Audio link
(pass through)
Input
attenuator
CN101
CN102
Micro Match
18 pin
Micro Match
16 pin
Micro Match
10 pin
CN101 CN102

11 : 1.Interface board: bill of connectors

CODE FUNCTION
Audio link (pass through)
CN107
balanced
Audio input
CN108
balanced
2 1
HOT
3
COLD
GND
FIGURE 11: XLR pinout.

11 : 2.RS-485 interface

CODE FUNCTION
CN103 RS-485
SW101 ID selector: units
SW101 ID selector: tens

11 : 3.Control board: bill of connectors

CODE FUNCTION
CN1 Reserved
CN109 Pressure sensor
CN101 Interface board 1
CN102 Interface board 2
Caution: do not connect any cable to the reserved
CN1 connector on the IpalMod connection board:
doing so can result in permanent module damage.
11
TYPE
XLR-M
XLR-F
1 2
HOT
3
COLD
GND
TYPE
RJ45
rotative knob
rotative knob
TYPE
8 pin
Micro Match Socket
10 pin
Micro Match Socket
16 pin
Micro Match Socket
18 pin
Micro Match Socket
