Neutral
Earth
Phase
Remove jumper to activate
external volume potentiometer
HOT
COLD
GND
External volume
potentiometer
(optional)
Single transducer mode
Dual transducers mode

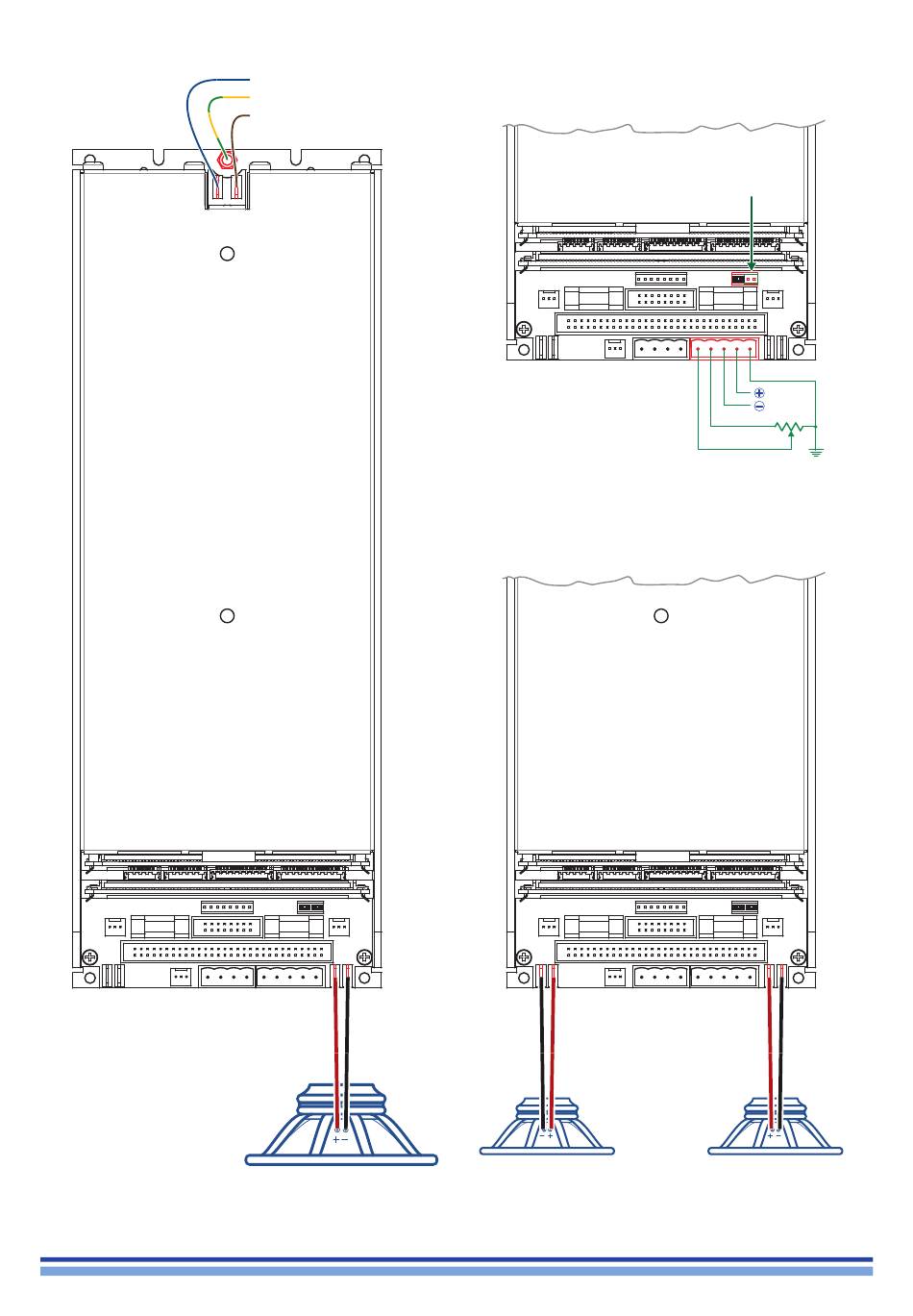

FIGURE 13: IpalMod: mains and audio connections.
10 | IpalMod | User guide
