powersoft DigiMod IS Series Technical Notes

TECHNICAL NOTE #16 rev. 01
Removing DSP-C from DigiMod
How to remove the DSP-C card from Digimod amp modules
1 Preliminary consideration
This article is related to the following products:
f DigiMod IS Series
f All DigiMod modules with DSP-C installed
2 Tools needed
f Phillips cross-wing screwdriver
f Flathead screwdriver
f A pair of pliers for electrical uses
f One XLR male connector
f Two Phoenix 5 poles connector
f One audio cable
3 Procedure

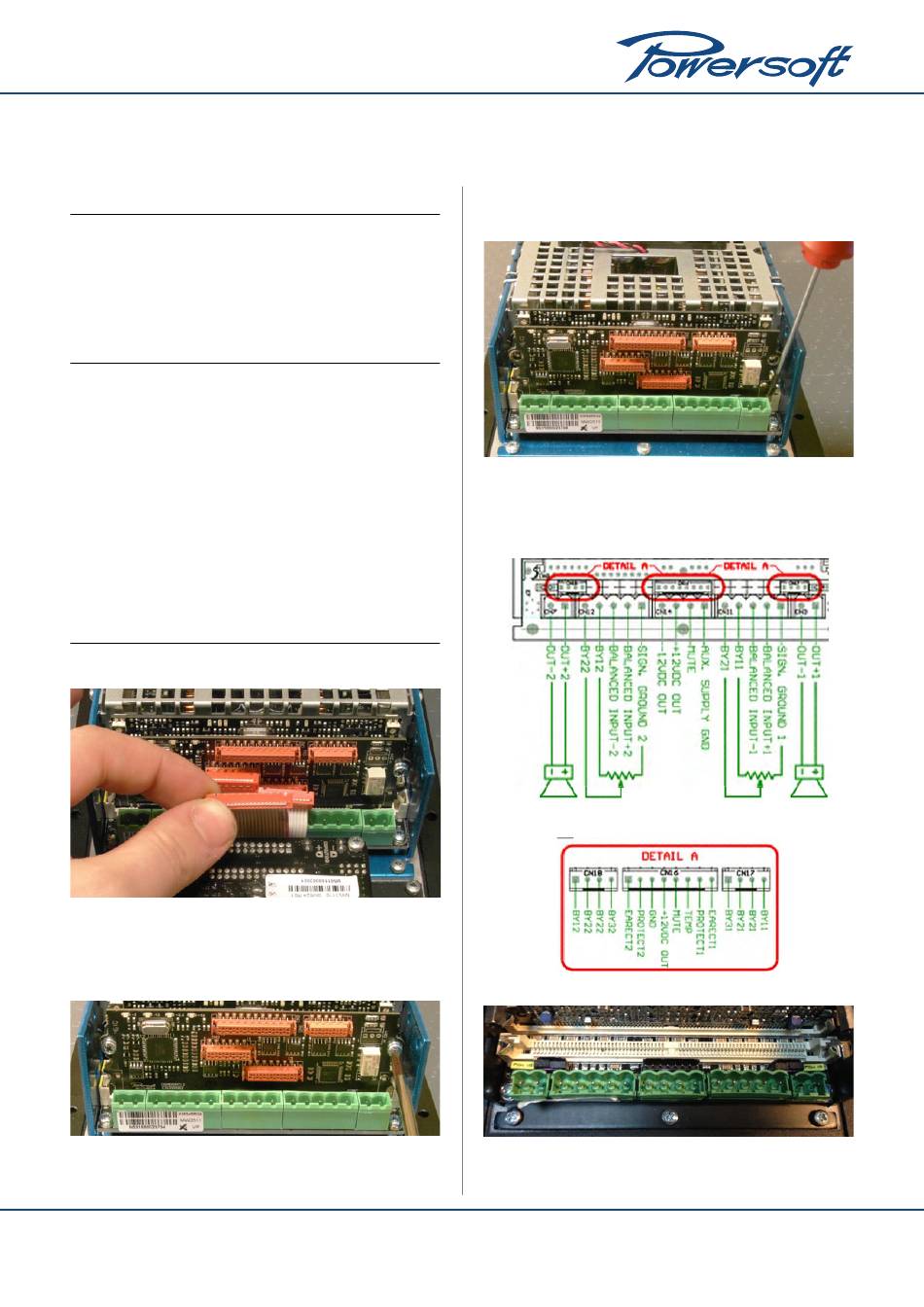

Disconnect the 3 micro-match connectors from the DSP-C.
FIGURE 1: Disconnecting the micro-match connectors
Take the Phillips screwdriver to remove the 2 screws from the
DSP-C.
FIGURE 2: Removing screws from the DSP-C
© 2012 - 2013 Powersoft
powersoft_TN016_RemoveDSPC_en_v1.0
Take the flathead screwdriver and push out the DSP-C from
the sim board.
FIGURE 4: Removing the DSP-C
With the aid of the pliers add the 2 jumpers on the pins BY22-
BY32 in the CN18 connector and pins BY31-BY21 on the CN17
connector.
FIGURE 3: Jumpers on DigiMod, overview
FIGURE 5: Jumpers on DigiMod, detail
FIGURE 6: Jumpers in place
Keep This Technical Note For Future Reference
