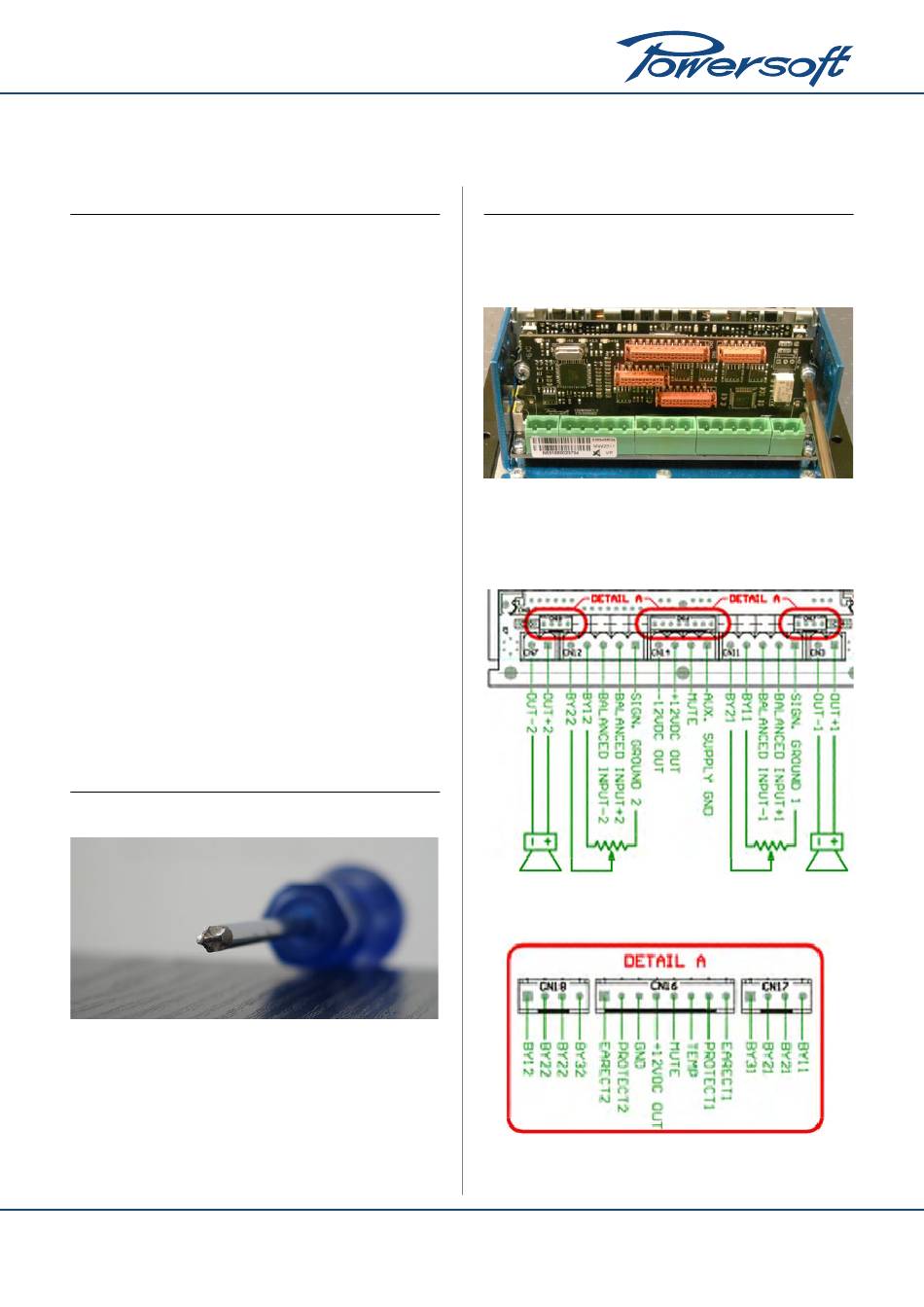

TECHNICAL NOTE #18 rev. 01
DigiMod IS integration kit
How to transform a DigiMod module to DigiMod IS (integrated solution)
1 Preliminary consideration
This article is related to the following products:
f DigiMod 1000
f DigiMod 1500
f DigiMod 2000HV
The kit that allows to transform a DigiMod module to DigiMod
IS (integrated solution) is labeled KT000276, and comprehends:
f N°1 Heat Sink
f N° 1 interface (already mounted on Heat Sink)
f N° 1 DSP-C
f N° 1 PowerCon Blue (already mounted on Heat Sink)
f N° 1 PowerCon Grey (already mounted on Heat Sink)
f N° 6 Screws for fixing DigiMod module on Heat Sink
f N° 2 Screws for fixing DSP-C board on Heat Sink
f N° 1 Bolt for fixing ground wire (on PowerCon connection)
to DigiMod module
2 Tools needed
f Phillips cross-wing screwdriver
FIGURE 1: phillipsscrewdriver.jpg
© 2012 - 2013 Powersoft
powersoft_TN018_DigiModISKit_en_v1.0
3 Procedure
1. Fix the DSP-C on DigiMod SIMM board connector with the
two screws.
FIGURE 2: Installing DSP-C
2. Remove all jumpers located on DigiMod on CN18/CN17
FIGURE 3: Jumpers to be removed, overview
FIGURE 4: Jumpers to be removed, detail
Keep This Technical Note For Future Reference
