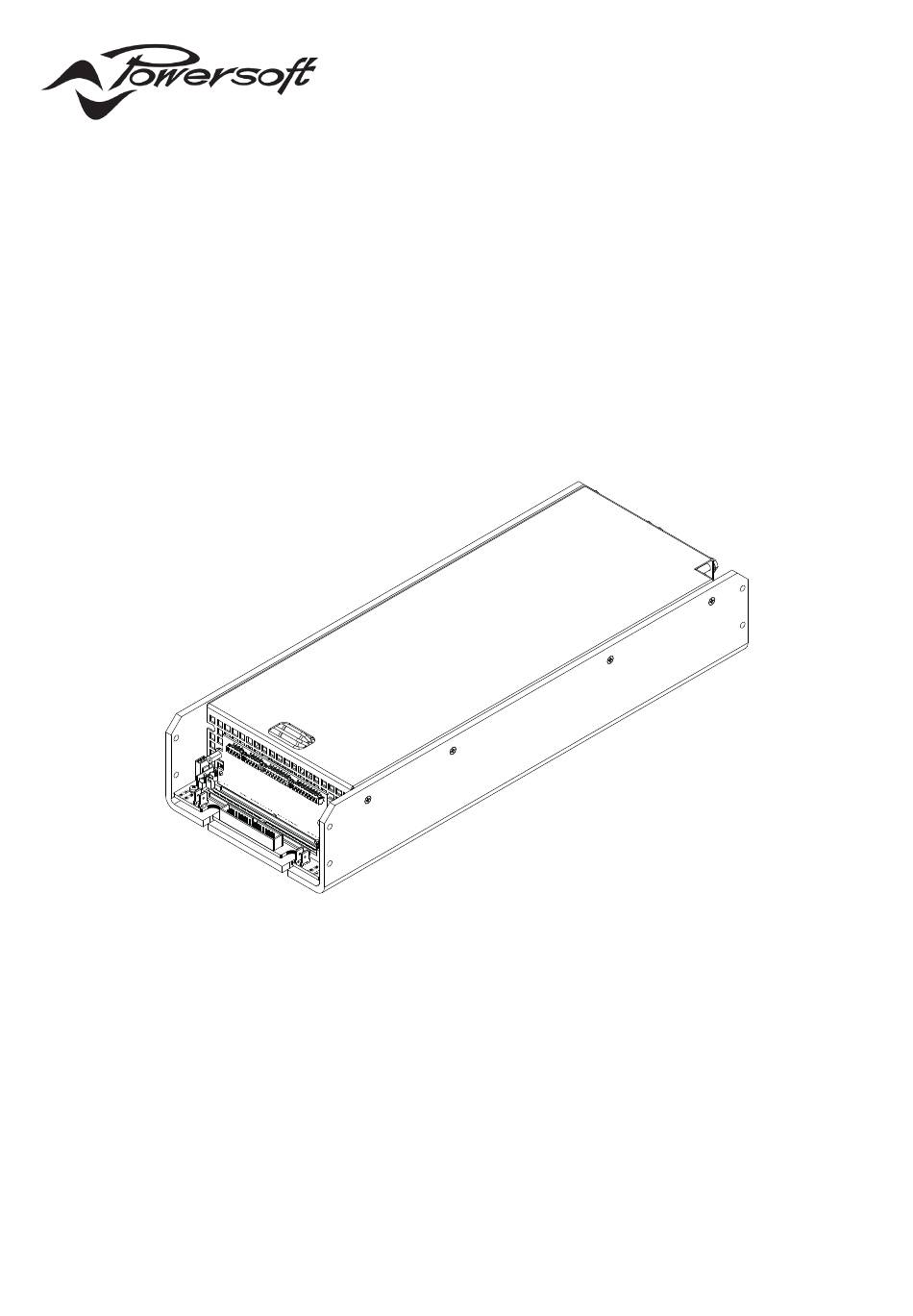

  • Page 1 M-Drive USER GUIDE ©2019 Powersoft Keep this manual DO000184.00 R02 for future reference...
  • Page 2 Data are subject to change without notice. For latest update please refer to the online version available on www.powersoft-audio.com.
  • Page 3: Table Of Contents

    10. Mechanical drawings 15 : 3.2. Connection 11. Connections 15 : 3.3. Programming Cable and Adapter 15 : 3.4. DSP initialization as Powersoft model 11 : 1.Interface board: bill of connectors 15 : 4.Programming M-Drive DSP 11 : 2.RS-485 interface 15 : 5.Setting M-Drive serial port...
  • Page 4 20 : 2.Add offline Custom Model 21. DSP-4 Initialization 21 : 1.Required Tools 21 : 2.Connection 21 : 3.DSP-4 initialization as Powersoft model 22. Programming DSP-4 23. Export Custom Preset 24. Creating Custom Model (DSP-4) 24 : 1.Custom model builder 24 : 2.Export Custom Model...
  • Page 5: Important Safety Instructions

    8. Do not defeat the safety purpose of the polarized or grounding- Symbol for earth/ground connection. type plug. 9. Only use attachments/accessories specified by Powersoft. Symbol for conformity with Directive 2002/96/EC 10. Refer all servicing to qualified service personnel. Servicing is...
  • Page 6: Importantes Instructions De Sécurité

    6. Assurez-vous d’une bonne ventilation de l’appareil. Installez en pour lors opérations de maintenance. accord avec les instructions préconisées par Powersoft. 7. N’installez pas l’appareil à proximité de sources de chaleur ou Le marquage CE indique la conformité à la directive de d’autres appareils produisant de la chaleur.
  • Page 7: Instrucciones De Seguridad Importantes

    6. No bloquee las aberturas de ventilación. Realice la instalación de de operación o mantenimiento. acuerdo con las indicaciones de Powersoft. 7. No instale cerca ninguna fuente de calor como, por ejemplo, La marca CE indica el cumplimiento de la directiva radiadores, rejillas de calefacción, hornos u otros aparatos que...
  • Page 8: Importanti Istruzioni Di Sicurezza

    Importanti istruzioni di sicurezza Questo modulo amplificatore è destinato ad essere AT TE N Z I O N E installato dentro altri dispositivi e deve quindi essere controllato nel prodotto finito. RISCHIO DI SCOSSE ELETTRICHE, NON APRIRE SPIEGAZIONE DEI SIMBOLI GRAFICI Il triangolo con il lampo è...
  • Page 9: Regulatory Information

    The Waste Electrical and Electronic Equipment Directive (WEEE Directive) aims to minimise the impact of electrical and electronic goods on the en- vironment. Powersoft S.p.A. comply with the Directive 2002/96/EC and 2003/108/EC of the European Parliament on waste electrical finance the cost of treatment and recovery of electronic equipment (WEEE) in order to reduce the amount of WEEE that is being disposed of in land-fill site.
  • Page 10: Electrostatic Discharge (Esd)

    Electrostatic Discharge (ESD) Electrostatic discharge (ESD) is one of the most significant factors leading to damage and failure of a wide variety of electronic components. Poor handling can cause internal damage, which is invisible. This internal damage can then cause electrical failure or reliability problems.
  • Page 11: M-Drive | 1

    DPC consistency in all operating conditions. dramatically improves the electroacoustic efficiency in M-Drive can be equipped with any Powersoft or third- terms of high SPL and sonic performance of the sound party DSP solution, and integrates the Powersoft’s patented reinforcement system.
  • Page 12: Thermal Constrains

    The thermal resistance of the heatsink derives from the fol- Powersoft provides a M-Drive compatible heat sink, specifically designed to house the amp module, an input/ output interface and the AC mains connection: please refer Dissipated power to the M-Drive IK solution for more info on this subject.
  • Page 13 N. 6 HOLES FIGURE 2: M-Drive IK heat sink with powerCON and AC Mains filter. Thermal constrains | 3...
  • Page 14: Electromagnetic Compatibility (Emc) & Safety

    EMC filter must be inserted before the AC MAINS ferrite shield as close as possible to where the cable plugs plugs on the power supply. Powersoft suggests: into the amplifier. Placing the ferrite elsewhere on the cable Schaffner FN2030-10-06 model.
  • Page 15: Mechanical Drawings

    Mechanical drawings threaded M3 - max depth 3mm torque 0,8 +/- 0,1 N/m FIGURE 7: M-Drive mechanical drawing (all dimensions in millimetres). Mechanical drawings | 5...
  • Page 16 90° 2,5 m FIGURE 8: Pressure sensor (all dimensions in millimetres unless otherwise stated) FIGURE 9: DPC interface board (all dimension in millimetres). 6 | M-Drive | User guide...
  • Page 17: Connections

    Connections Audio Audio link 11 : 1.Interface board: bill of connectors input (pass through) Input CODE FUNCTION TYPE attenuator Audio link (pass through) CN107 XLR-M balanced interface Audio input CN108 XLR-F board balanced CN101 CN102 CN106 Micro Match COLD COLD 12 pin FIGURE 11: XLR pinout.
  • Page 18: 4.Amp Module: Bill Of Connectors

    11 : 4.Amp module: bill of connectors PL1000 Connector Model Connector Model BY11 Default: closed (jumped) Open only when using BY41 DSP-C or DSP-D boards PL15 – L AC mains input (Line) FASTON BY41 6.3x0.8mm BY21 PL15 – N AC mains input (Neutral) BY41 M4 bolt Earth...
  • Page 19: 7.Pl21 Pinout

    11 : 7.PL21 pinout PIN# NAME TYPE DESCRIPTION RANGE IMPEDANCE/NOTES SDPWS PSU shutdown. Active HI 3,3V <V <12V 1KΩ READY 1 High when PWM is ON 3,3V <V <5V | 0V <V <1V 47KΩ - external cap. needed (1nF min) RESERVED RESERVED DO NOT CONNECT...
  • Page 20: 8.So5 Pinout

    11 : 8.SO5 pinout PIN# NAME TYPE DESCRIPTION RANGE IMPEDANCE/NOTES Output Voltage monitor. Positive OUT+ 160V 1kΩ terminals Ground Ground Bal. IN (non-inverting) DIFF= 20KΩ / CMODE= 20KΩ (bal) 5,5V input for full output Unbal. IN ( non-inv. p7 to GND) 20KΩ...
  • Page 21 PIN# NAME TYPE DESCRIPTION RANGE IMPEDANCE/NOTES SDPWS PSU shutdown. Active HI 3,3V <V <12V 53~57 MUTE HW mute (PWM off). Active LO =0,2V =20mA IL(max) sink (min) 59~62 IOUTMON Output current monitor 0,17Vdc min - 1Vdc max (Scale Factor = 40A/V) 4,5KΩ...
  • Page 22: Hardware Protections

    Hardware protections 12 : 2.Power supply protections The architecture of Powersoft’s amplifiers encompass several protection mechanisms triggered by harmful signal and temperature. Protection systems and triggers are Power supply protections aim to isolate a faulty section independently implemented in the power supply section...
  • Page 23: Led Chart

    LED chart 13 : 2.SIMM board LED chart 13 : 1.Interface board LED chart For a comprehensive control on system status refer to the ArmoníaPlus metering interface (ref. Chapter 15 : 5. Metering). Color Label Signal Lighting Signal protection SOLID ON active PROTECT No pressure sensor...
  • Page 24: Pressure Sensor

    Pressure sensor In order to guarantee high system performance, the 2. If the motor is mounted outside the cabinet and point- proper placement of the pressure sensor on the loudspeaker ing inwards, and the pressure sensor is mounted in- cabinet and the correct connection of the transducer to the side the cabinet, pointing outwards, reverse the speci- M-Drive are paramount.
  • Page 25: Initialization

    Using ProManager Plus™ is possible creating a custom model based on Zero Latency DSP (included on M-Drive) or based on an additional Powersoft DSP-4. Once you have created and exported the custom Armonía Plugin, the loudspeaker equipped with M-Drive can be recognized and managed via ArmoníaPlus™ software.
  • Page 26: 2.Initialization Framework

    In order to initialize the DSP on board and external Powersoft DSP, the ProManager Plus™ proposes two approaches: Powersoft init or Custom init. The former initializes your DSP with default settings, while the latter initializes the DSP with your custom processing and it will allow ArmoníaPlus™ to identify your system as proprietary. As shown on the workflow, before directly proceeding with a custom initialization of the DSP, you are required to create a valid custom model for your product in which the presets –...
  • Page 27: 2.2. Oem Manufacturer Registration

    15 : 2.2. OEM Manufacturer Registration To ensure exclusivity and private access to your Custom Armonía, Powersoft requires you to be registered on the development scheme. Once registered, you will be provided of a unique Vendor Code which will grant confidential access to the ProManager Plus™.
  • Page 28: 2.3. Software Installation

    PC via a single intuitive graphical user interface. Download ArmoníaPlus™ from the Armonía web-site: https://armonia.powersoft.it/ 2. Install the ProManager Plus™. 3. Launch ProManager Plus™. Do not run ProManager™ and ArmoníaPlus™...
  • Page 29: 3.M-Drive Dsp Initialization

    16 : 2.Programming Cable and Adapter SIGNAL In order to implement a RS-485 port on a personal computer Powersoft recommend the use of the SPECTRA USB 2.0 to RS-485 converter. A DB9 to RJ45 adapter is needed as well. M-Drive DSP initialization | 19...
  • Page 30: 3.4. Dsp Initialization As Powersoft Model

    Initialize the DSP as a Powersoft model with 16 : 3.DSP initialization as Powersoft model ProManager Plus 1. Open ProManager Plus™ 2. Click on the DSP Initializer button 3. Select the correct serial port by pressing Play 4. Press Discovery 5.
  • Page 31: 4.Programming M-Drive Dsp

    ArmoníaPlus At this stage you should have already initialized your DSP board as a Powersoft model. This includes also some default presets’ schemes designed by Powersoft, which are intended to represent a good starting point for your evaluation of the amplifier, for a proper tuning of your speaker and for desired signal processing that you want to apply on your finished product.
  • Page 32 8. In the ArmoníaPlus™, go in the Match view and click on Discovery button . All connected amp modules will be detected and automatically shown on the amp list in the Status section. 9. Drag the discovered model onto the workspace and wait it becomes green (device is on-line) 10.
  • Page 33: 5.2. Monitor View

    M-Drive license, Advanced view button does not show in case of missed license. When you pass in Advanced view first time after the initialization as Powersoft Model, no password will be requested. 16 : 5.3. Advanced View The advanced view provides a set of algorithms for tuning loudspeaker, including the DPC and impedance control.
  • Page 34: 5.4. Global Settings

    16 : 5.4. Global Settings 16 : 5.4.1. Input gain 16 : 5.4.2. Polarity Set the maximum volume of the The input signal can be phase input signal. The attenuator knob reversed by clicking on this button. on the interface board modifies Polarity button is available for the the signal volume in series with end user in the monitor view.
  • Page 35: 5.5. Pressure Model Operating Mode

    16 : 5.5. Pressure Model Operating Mode The amplifier’s output signal is modified in real time as a result of the combination of the input audio signal and the feedback loop. The alteration is applied to the input stage so to minimize the difference between the desired output and that measured and reported by interpolating two the feedback loops.
  • Page 36 Powersoft recommends to set the efficiency protection at least to 1/3 of the value of the reference loudspeaker efficiency (Ref eff. no%, see below). The value 0 (zero) switches off the efficiency protection.
  • Page 37: 5.7. Metering

    16 : 5.6.7. Gate The system is equipped with a gate output block intended to improve the overall signal- to-noise ratio. The gate reduces the output gain for small signals interpreted as noise. The hold time indicates how long the gain reduction occurs after the output signal falls below the threshold.
  • Page 38: 5.8. Locking

    16 : 5.8. Locking Normally the manufacturer take care for locking this view after he finished loudspeaker tuning, since DSP processing is part of his know-how. When you enter in the Advanced view first time, no password required, by pressing Lock button first time, a pop up, where you can set password, will appear;...
  • Page 39: Creating Custom Models

    Create your CUSTOM Creating Custom models MODEL in ProManager Plus On this chapter we will give birth to the custom model, which represents your finished product (speaker, rack amp) that you aim to manage using ArmoníaPlus™. In fact, we will create a software plugin so that the ArmoníaPlus™ is able to accept and to recognise your custom model as it was defined.
  • Page 40: Export Custom Model

    17 : 2.Export Custom Model When you finish creating custom models you can export all building to plug-in to install. You cannot export single models; custom model builders will take all listed models. Exported Plug-in will override all its content each time is installed. 1.
  • Page 41: Initialize M-Drive Dsp As Custom Model

    Initialize the DSP as you CUSTOM MODEL with 17 : 4.Initialize M-Drive DSP as Custom Model ProManager Plus If you have come to this stage it means that you have created a software plug-in for ArmoníaPlus™ which contains all the parameters, names, descriptions and presets that characterize your finished product.
  • Page 42: 1.Add Online Custom Model

    17 : 5.Add online Custom Model From this step onwards, your product will appear and will be recognized in ArmoníaPlus™ as custom and the model will include all the proprietary processing and customization that you have applied using the ProManager™. 1.
  • Page 43: Dsp-4 Initialization

    1. Connect DSP-4 to the computer via Ethernet cable. 2. Turn the amplifier module on. Initialize the DSP as a Powersoft model with ProManager Plus 18 : 3.DSP-4 initialization as Powersoft model 1. Open Armonía ProManager Plus™ 2. Click on the DSP Initializer button DSP-4 Initialization | 33...
  • Page 44 4. Press Discovery 5. Select the on-line system (Unknown model) and click on Next 6. Click on Powersoft model Custom Model button is disabled until you will make at least one custom model based on DSP-4. 7. Select Initializer as operating mode 8.
  • Page 45: Programming Dsp-4

    ArmoníaPlus At this stage you should have already initialized your DSP board as a Powersoft model. This includes also some default presets’ schemes designed by Powersoft, which are intended to represent a good starting point for your evaluation of the amplifier, for a proper tuning of your speaker and for desired signal processing that you want to apply on your finished product.
  • Page 46: Export Custom Preset

    8. You now have a full overview of your Powersoft system: click on the Scheme tab 9. Double click on the functional blocks to edit the processing parameters 11. Once you are happy with the processing you can lock all params you want, clicking on Preset Locking 12.
  • Page 47: Creating Custom Model (Dsp-4)

    Model image: Choose a suitable image for your system/model (suggested size 350 max width, 250 max height) f Default Preset: Pam file exported from Powersoft model, is the one loaded in virtual Powered speaker f Presets onboard: previously exported from Powersoft model.
  • Page 48: 2.Export Custom Model

    19 : 2.Export Custom Model When you finish creating custom models you can export all building to plug-in to install. You cannot export single models; custom model builders will take all listed models. Exported Plug-in will override all its content each time is installed. 1.
  • Page 49: Initialize Dsp-4 As Custom Model

    Initialize the DSP as you CUSTOM MODEL with ProManager Plus 19 : 4.Initialize DSP-4 as Custom Model On this chapter we will give birth to the custom model, which represents your finished product (speaker, rack amp) that you aim to manage using ArmoníaPlus™. In fact, we will create a software plugin so that the ArmoníaPlus™ is able to accept and to recognize your custom model as it was defined.
  • Page 50: 1.Add Online Custom Model

    19 : 5.Add online Custom model From this step onwards, your product will appear and will be recognized in ArmoníaPlus™ as custom and the model will include all the proprietary processing and customization that you have applied using the ProManager Plus™. 1.
  • Page 51: Appendix

    Appendix 20 : 1.How to install jrsoftware 1. Go to: http://www.jrsoftware.org 2. Download the latest Inno Setup release 3. Choose to download it from a random site 4. Follow the installation wizard 5. Choose to install the Inno Setup Preprocessor 6.
  • Page 52: Support And Warranty

    Powersoft dealer (or to Powersoft for repair. In the latter case, before shipping, distributor). You can also contact the Powersoft Technical you are kindly asked to follow step by step the procedure...
  • Page 53: Specifications

    Specifications AC Mains Power General Universal, regulated switch mode Number of channels 1 in / 1 out Power supply with PFC Output power Nominal power requirement AC 100 V - 240 V, 50/60 Hz 2 � 14970 W Operating voltage AC 90 - 264 V 4 �...
