Considering that thermal protection of the module (T
set at 75°C (167°F) on the bottom aluminium plate and stat-
ing an ambient temperature of 45 °C (113°F), the previous
example gives:
75 - 45
170

8 : 2.Suggested heatsink

Powersoft provides an IpalMod compatible aluminium alloy
heatsink, specifically designed to house the amp module,
an input/output interface and the AC mains connection

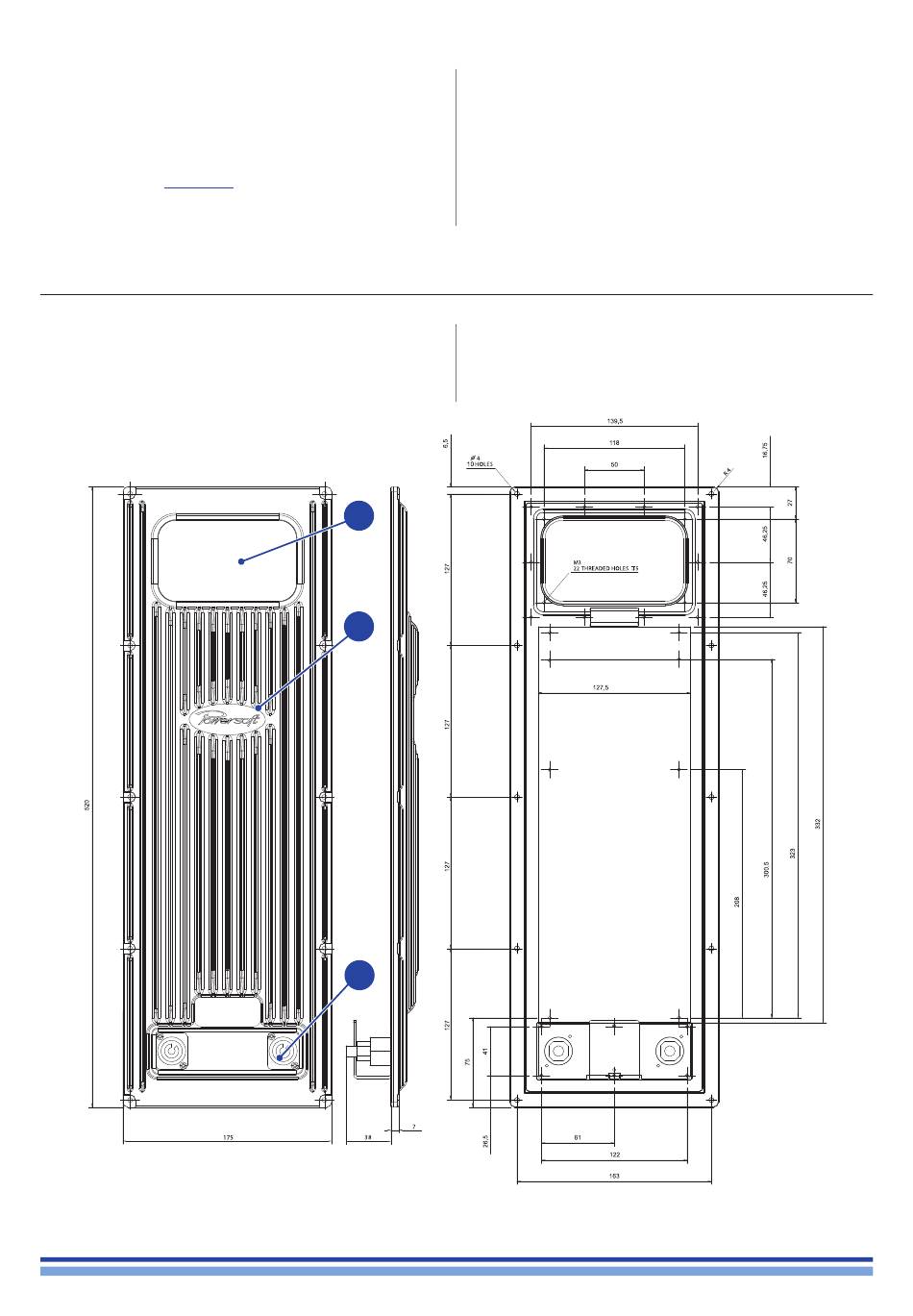

FIGURE 2: Aluminium alloy heatsink with I/O interface bay: 1. I/O interface bay (not compat-
ible with IPAL DPC programming interface); 2. Heatsink; 3. AC mains interface.
mod
= 0.14°C/W
1
2
3
) is meaning that the temperature of the bottom plate is always
lower than 75°C if the heatsink has a thermal resistance bet-
ter than 0.14°C/W (or 0.14 K/W) with ambient temperature
up to 45 °C.
(for further information, please refer to the DigiMod IK user
guide, available on Powersoft website).
