Deutschmann Automation GmbH & Co. KG
Hardware design
3
Hardware design
®
This chapter gives basic advise that is required in order to load UNIGATE
FC into your own
®
hardware designs. In the following all ports of UNIGATE
FC are described in detail.
3.1
Ports
®

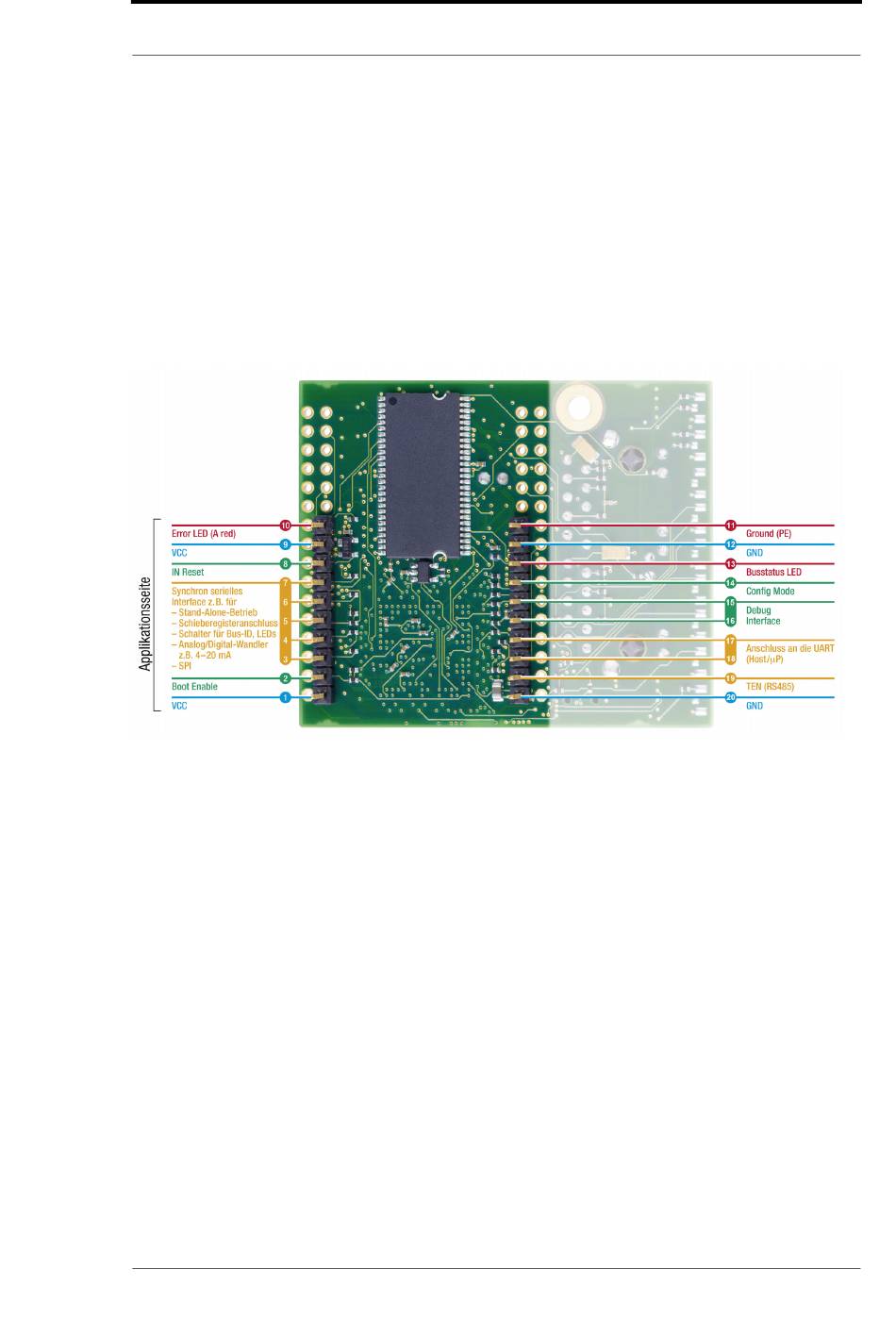

UNIGATE
FC features 64 pins in its layout with only 20 pins routed to the outside. The exact
mechanical dimensions can be taken from chapter 16 on page 39.
®
4.10.17
Instruction manual UNIGATE
FC - PROFINET 2Port V. 1.5
11
