Hardware design Deutschmann Automation GmbH & Co. KG

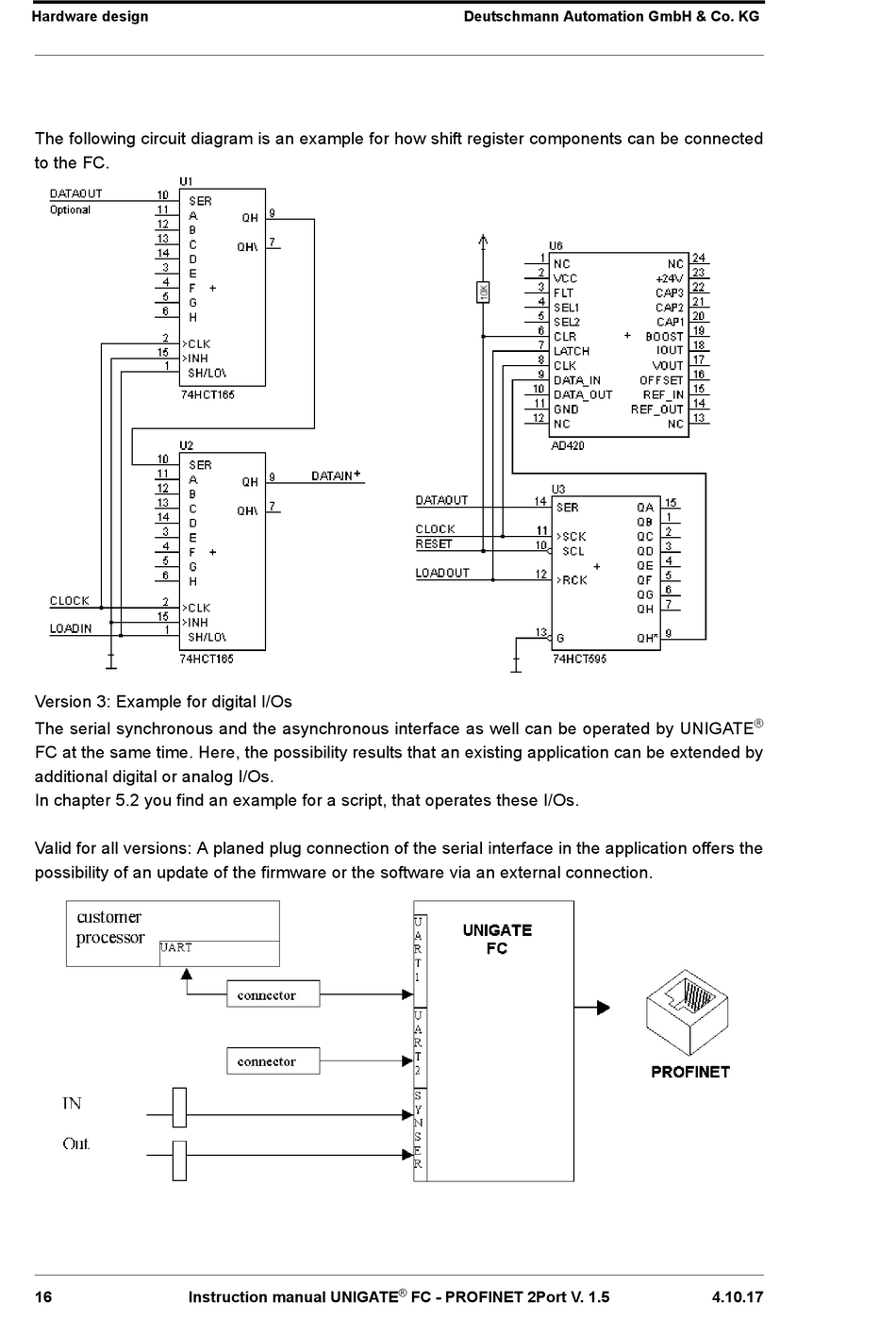

The following circuit diagram is an example for how shift register components can be connected
to the FC.
Version 3: Example for digital I/Os
®
The serial synchronous and the asynchronous interface as well can be operated by UNIGATE
FC at the same time. Here, the possibility results that an existing application can be extended by
additional digital or analog I/Os.
In chapter 5.2 you find an example for a script, that operates these I/Os.
Valid for all versions: A planed plug connection of the serial interface in the application offers the
possibility of an update of the firmware or the software via an external connection.
®
